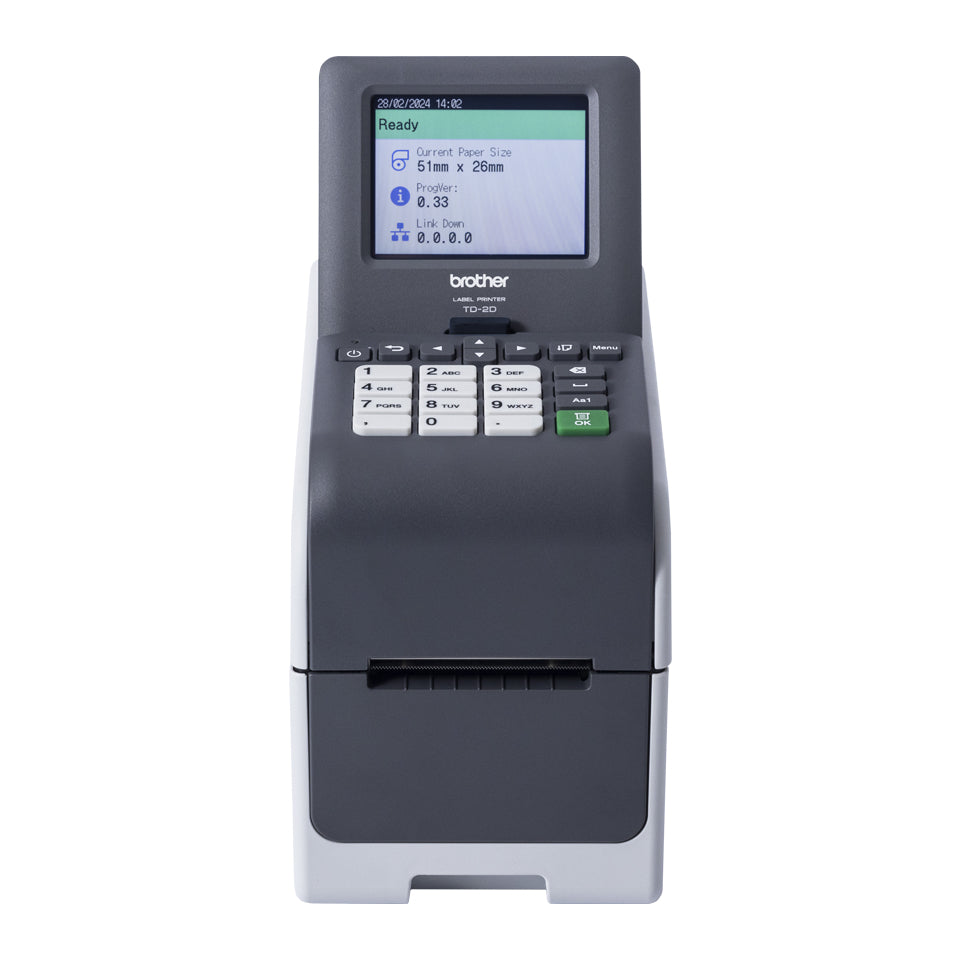

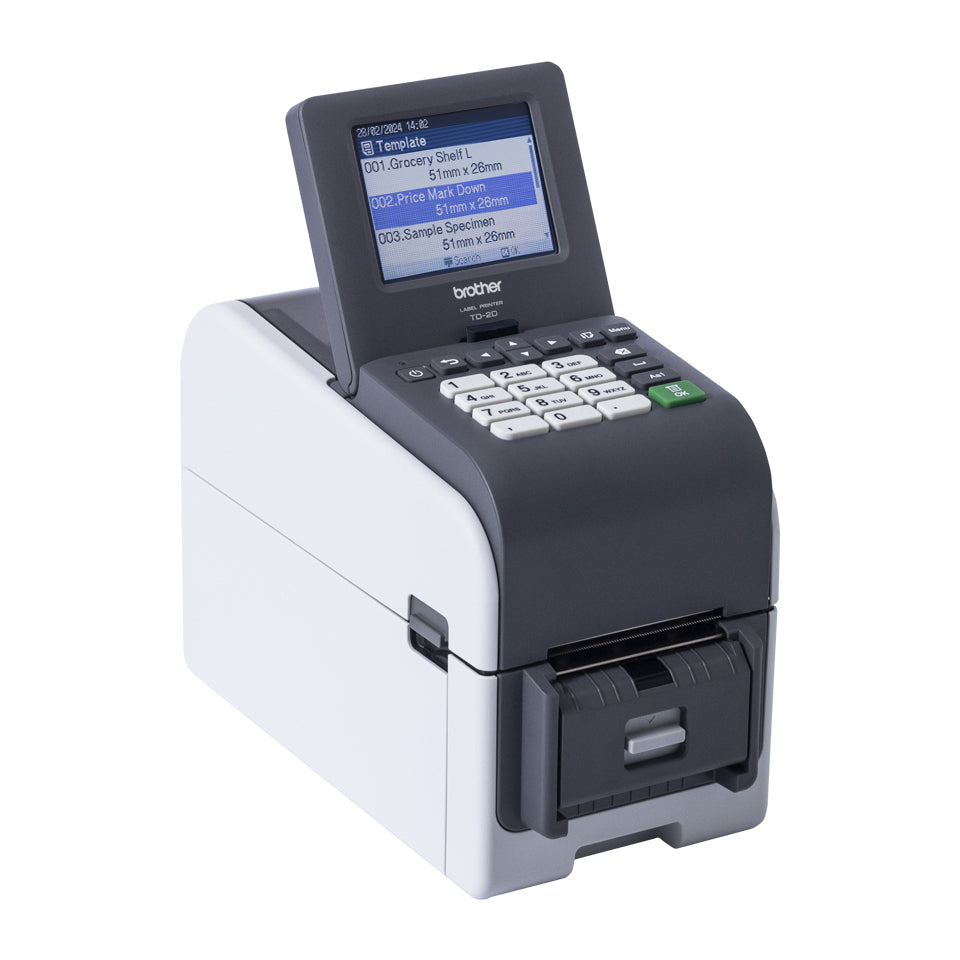

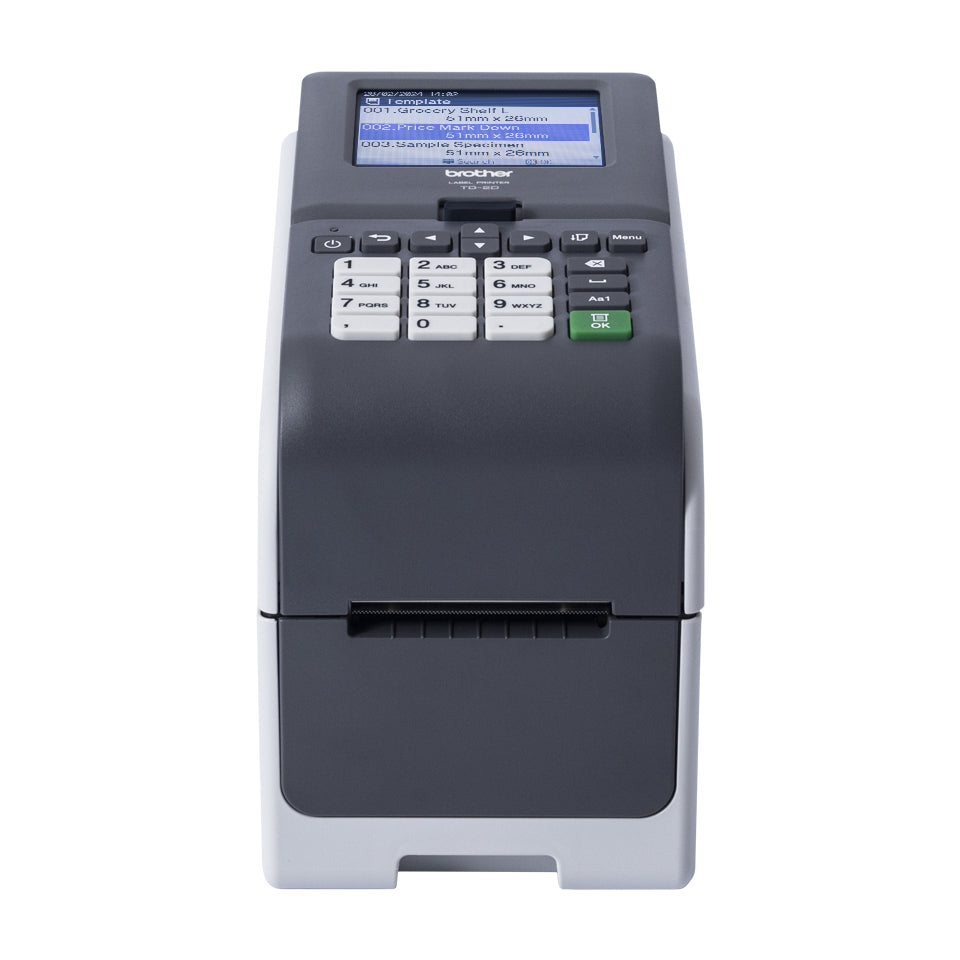

With an intuitive LCD screen, the TD-2350D203 is a user-friendly desktop label printer. The professional quality resolution, makes this label maker ideal for printing 2D barcodes. Barcodes are easily scanned and quickly processed. The Bluetooth connectivity allows for setup and configuration with a smartphone or tablet using the Mobile Deploy App. Whilst wireless connectivity removes the need of cables for the network.The printer has a range of specialised features and high-quality print resolution, the TD-2D is the perfect label printer for retail, healthcare and food traceability – where you need to be able to print high-quality receipts, labels or wristbands in any location.

Print technology	Direct thermal
Colour	No
Maximum resolution	203 x 203 DPI
Print speed	152 mm/sec
Maximum printing width	5.9 cm
Minimum print length	6.4 mm
Ribbon length	3 m
Maximum label length	3 m
Maximum roll diameter	12.7 cm
Media thickness	0.058 - 0.279 mm
Connectivity technology	Wired & Wireless
Ethernet LAN	Yes
Wi-Fi	Yes
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	Yes
Bluetooth version	5.2+EDR
USB port	Yes
USB 2.0 ports quantity	1
RS-232 ports	1
Page description languages	ESC P, Raster_P
Internal memory	256 MB
Built-in barcodes	AZTECCODE, CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Data Matrix, EAN13, EAN8, GS1 DataBar, MSI, MaxiCode, Micro QR Code, POSTNET, QR Code, UPC-A, UPC-E
Number of fonts	10
Security algorithms	64-bit WEP, 128-bit WEP, EAP-FAST, EAP-TLS, EAP-TTLS, PEAP, WPA-PSK, WPA2-PSK, WPA3-SAE
Product colour	Black, Grey

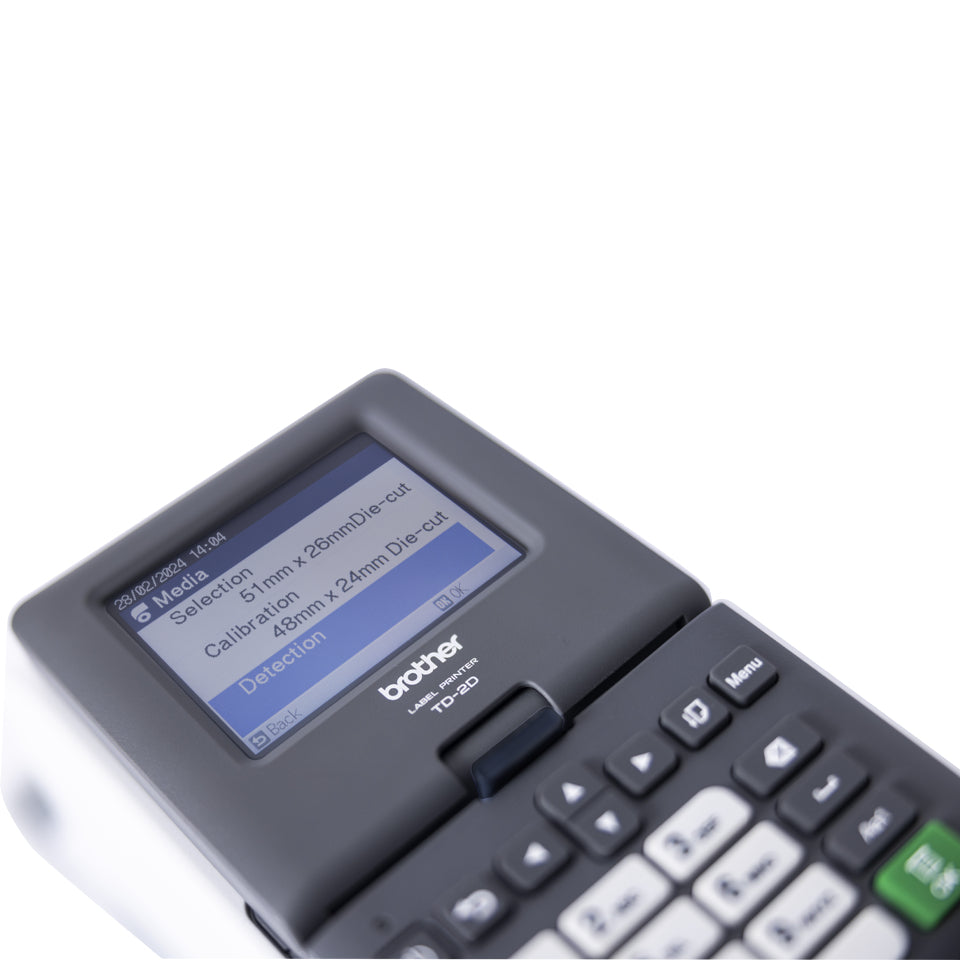

Built-in display	Yes
Display	LCD
Colour display	Yes
Control type	Buttons, Touch
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz
AC adapter output voltage	24 V
AC adapter output current	3.6 A
USB port voltage	5 V
USB port current	3 A
Power source type	AC
Windows operating systems supported	Windows 10, Windows 11
Mobile operating systems supported	Android, iOS
Linux operating systems supported	Yes
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	10 - 90%
Operating temperature (T-T)	5 - 40 °C
Storage temperature (T-T)	-20 - 60 °C
Width	181 mm
Depth	306 mm
Height	325 mm
Weight	1.86 kg
Package width	306 mm
Package depth	181 mm
Package height	325 mm
Package weight	2.9 kg
Cables included	USB
Pallet gross height	17.8 cm
Pallet gross weight	631.2 kg
Master (outer) cases per pallet	20 pc(s)
Master (outer) cases per pallet layer	4 pc(s)
Layers per pallet	5 pc(s)
Products per pallet	60 pc(s)
Pallet type	800 x 1200 mm
Country of origin	Vietnam
Warranty period	3 year(s)
Spare part retention	5 year(s)
