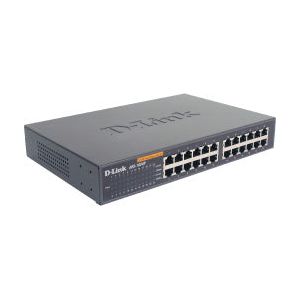

This desktop switch is designed for small offices and larger workgroups.
All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.
IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer.
All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports.
IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer.
| Switch type | Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Networking standards | IEEE 802.1D, IEEE 802.3, IEEE 802.3U, IEEE 802.3x |
| Full duplex | Yes |
| MAC address table | 8000 entries |
| Maximum data transfer rate | 0.1 Gbit/s |
| LED indicators | Power |
| Power consumption (typical) | 10 W |
| Power over Ethernet (PoE) | No |
| Data transfer rate | 100 Mbit/s |
| Dimensions (WxDxH) | 280 x 180 x 44 mm |
| Connectivity technology | Wired |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight | 2.8 kg |
| Package width | 282 mm |
| Package depth | 376 mm |
| Package height | 78 mm |
| Package weight | 1.9 kg |
| Shipping (inner) case height | 31.1 cm |
| Shipping (inner) case width | 39.2 cm |
| Shipping (inner) case length | 42 cm |
| Shipping (inner) case net weight | 9.5 kg |
| Products per shipping (inner) case | 5 pc(s) |
| Pallet gross weight (air) | 265.9 kg |
| Master (outer) cases per pallet (air) | 24 pc(s) |
| Products per pallet (air) | 120 pc(s) |
| Pallet gross length | 120 cm |
| Pallet gross width | 110 cm |
| Pallet height (air) | 137.9 cm |
| Pallet gross weight (sea) | 390.3 kg |
| Master (outer) cases per pallet (sea) | 36 pc(s) |
| Products per pallet (sea) | 180 pc(s) |
| Pallet height (sea) | 2 m |
| Shipping (inner) case gross weight | 10.4 kg |
| Harmonized System (HS) code | 85176990 |
