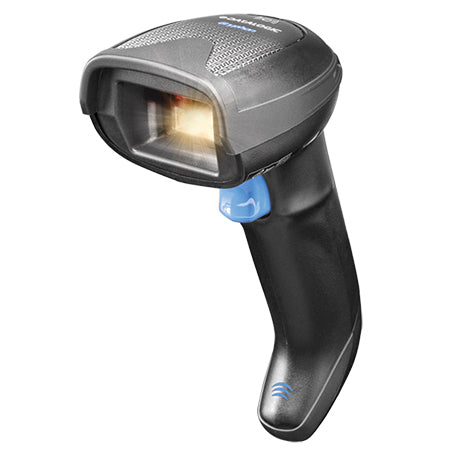

The Gryphon 4500 series stands out with an elegant and trendy design, user friendly ergonomics and features the most advanced megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon 4500 omnidirectional imager provides snappy reading performance on all common 1D and 2D codes. High Density (HD) models are available for reading smaller, condensed codes as well as a dedicated version with red illumination optics to support Digital Watermarking.

Datalogic’s Motionix™ motion-sensing technology enables the scanner to intuitively switch into ‘hand held’ mode when the device is picked up. When placed back into the cradle, it seamlessly returns to ‘stand’ mode. The adjustable position cradle provides the flexibility to use the scanner in presentation or stand mode while it is charging.

The wireless models feature Bluetooth wireless technology (GBT model) or narrow band radio communications with Datalogic’s STAR Cordless System (GM model).

One of the most important technical innovations that the Gryphon 4500 wireless readers achieve is the wireless charging system for the battery, which enhances the reliability of the entire solution, while lowering the total cost of ownership (no need for contact cleaning or maintenance procedures). The maximum reliability offered by the Gryphon wireless charging technology means 24/7 activities with no stops for maintenance or repair and top-level operating productivity and performance.

The Gryphon 4500 imagers are also available in Healthcare models featuring disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Type	Handheld bar code reader
Scanner type	1D/2D
Sensor type	Laser
Linear (1D) barcodes supported	Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, PDF417, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, GS1 DataBar Expanded Stacked, GS1 DataBar Stacked Omnidirectional, MaxiCode, Micro QR Code, MicroPDF417, QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	650 nm
Tilt reading angle	0 - 360°
Pitch reading angle	-65 - 65°
Yaw reading angle	-65 - 65°
Connectivity technology	Wired & Wireless
Standard interfaces	Bluetooth, USB
Wireless range	100 m
Bluetooth version	4.0
Operating frequency	2400 MHz
International Protection (IP) code	IP52
Product colour	Black
Power source type	Battery
Battery technology	Lithium-Ion (Li-Ion)
Battery capacity	3250 mAh
Battery voltage	12 V
Number of reads per charge	80000
Charging time	4 h
Input voltage	4.5 - 14 V
Width	109 mm
Depth	68 mm
Height	166 mm
Weight	235 g
Cables included	USB
Charging base	Yes
Operating temperature (T-T)	0 - 50 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
