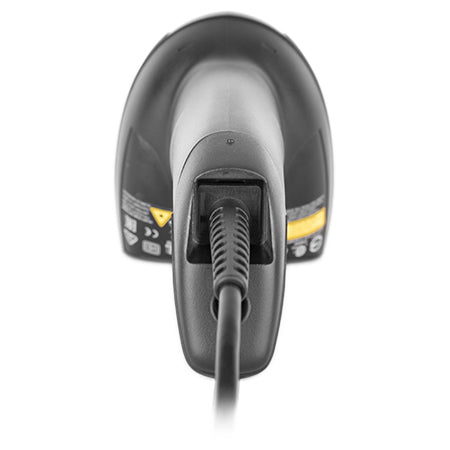

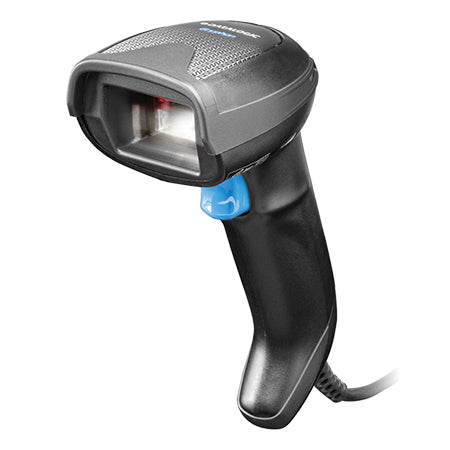

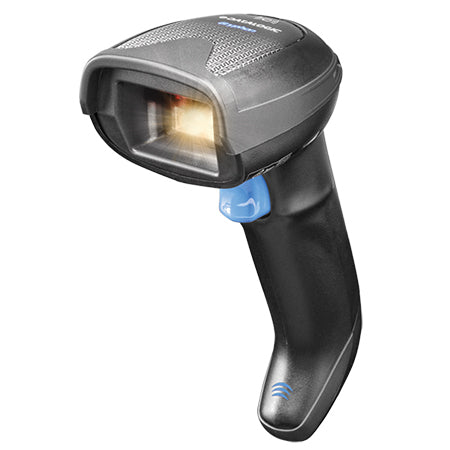

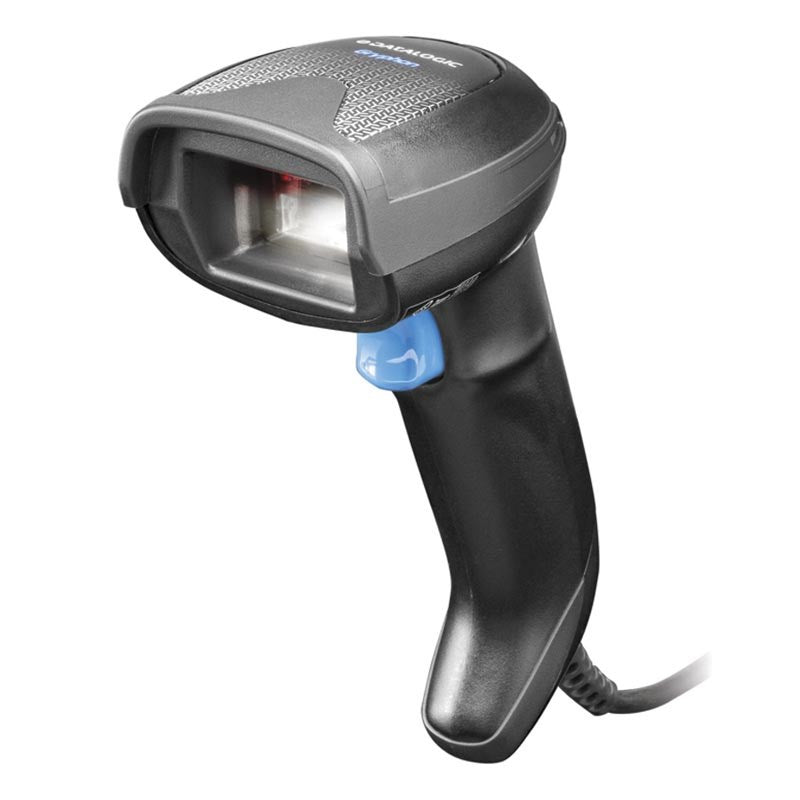

The Gryphon™ 4500 2D series represents the premium range of hand held scanners from Datalogic. The GD4500 scanner is the desk (corded) version for general purpose applications.

The Gryphon I GD4500 imager stands out with an elegant and trendy new design, unchallenged ergonomics and features the most advanced Megapixel sensor with warm-white-illumination 2D technology for outstanding performance.

The Gryphon GD4500 imager takes advantage of Datalogic’s Motionix™ motion-sensing technology which detects the natural actions of the operator to automatically switch the scanner into the desired scanning mode. This technology works with or without the use of a stand, offering both hand held and presentation reading options.

Datalogic’s reading technology with highly visible warm-white illumination is easier on the human eyes and reads colored labels much better. The highly visible 4-Dot aimer defines a precise reading zone and reduces accidental reads, while the aimer’s center cross provides a locator for targeted scanning in a multiple bar code environment.

The GD4500 imager is also available in a Healthcare model with disinfectant-ready and anti-microbial enclosures for applications in the Healthcare industry.

Type	Handheld bar code reader
Scanner type	1D/2D
Linear (1D) barcodes supported	Code 39, EAN-13, GS1 DataBar Expanded, GS1 DataBar Omnidirectional, JAN, PDF417, Planet, POSTNET, U.P.C.
2D (matrix & stacked) barcodes supported	Aztec Code, Data Matrix, Han Xin, MaxiCode, Micro QR Code, MicroPDF417, PDF417, QR Code
Optical sensor resolution (W x H)	1280 x 800 pixels
Light levels (direct sunlight)	0 - 100000 lx
Wavelength	650 nm
Tilt reading angle	0 - 360°
Pitch reading angle	-65 - 65°
Yaw reading angle	-65 - 65°
Motion tolerance (cm/s)	88.9
Connectivity technology	Wired
Standard interfaces	USB
International Protection (IP) code	IP52
Protection features	Shock resistant
Built-in display	No
Image formats supported	BMP, JPEG
Product colour	Black
Certification	IEC 60825 Class 2
Power source type	DC
Input voltage	5 V
Power consumption	300 mA
Width	68 mm
Depth	109 mm
Height	166 mm
Weight	161 g
Cables included	USB
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	0 - 95%
Compliance certificates	RoHS
Harmonized System (HS) code	84716070
