Flexible technical printer
The 36-inch technical printer for professionals looking for reliability and cost saving, with high-quality precision printing in-house.

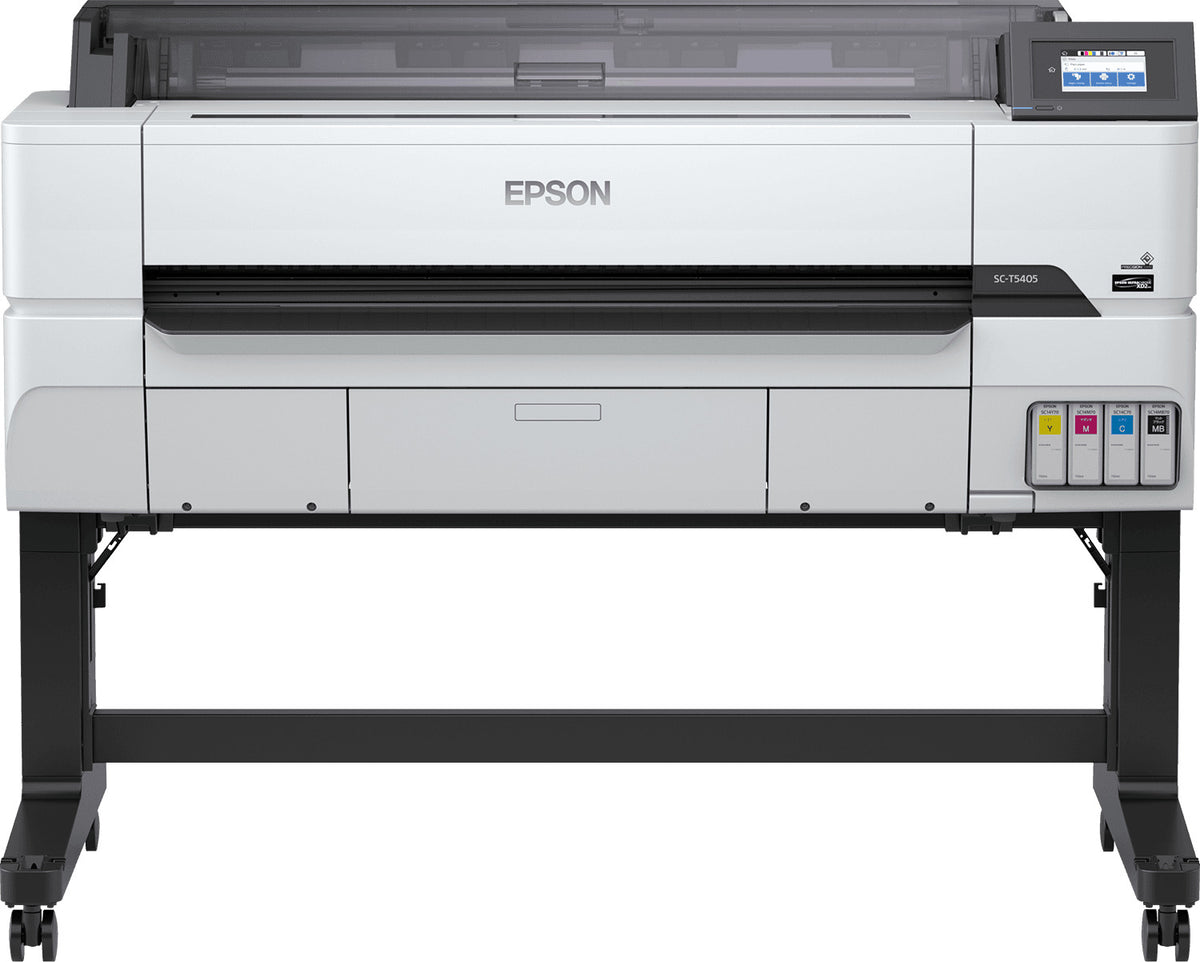

SureColor SC-T5405 - wireless printer (with stand)
The SC-T5405 large format printer is ideal for printing high-quality CAD designs, architectural or engineering technical drawings, general office documents, high-visibility posters for event organisers or point-of-purchase (POP) signage for retailers. Designed for those who need a professional-level, floor-standing, technical printer which boasts a low total cost of ownership.

Enhanced productivity
High capacity ink cartridges (110ml, 350ml and 700ml) and 4-colour pigment UltraChrome XD2 inks that are smudge and water resistant. Also, the SC-T5405 delivers deep blacks and crisp, dense lines — which is ideal for technical graphics.

A bigger picture
The SC-T5405 offers cost and time saving benefits by enabling a document enlargement workflow. Simply connect your Epson inkjet multifunction printer to your LFP and select the size you desire (up to A0 / 36 inches). Change seamlessly between LFP roll and sheetfeed as this printer supports up to A0 cut sheets as well as rolls. Even occasional users can expect consistent print quality. Unique Nozzle Verification Technology (NVT) helps prevent misprints by constantly monitoring for any blockages.

Print head nozzles	800 nozzles black, 800 nozzles per colour
Print technology	Inkjet
Colour	Yes
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	4
Page description languages	ESC/P-R, HP-GL/2, HP-RTL
Printing colours	Pigment black, Pigment cyan, Pigment yellow, Pigment magenta
Print cartridge volume (metric)	700 ml
Print speed (normal quality, A1)	22 pph
Copying	No
Scanning	No
Total number of input trays	2
Maximum print size	A0 (841 x 1189 mm)
Paper tray media types	Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A3+, A4
ISO B-series sizes (B0...B9)	B1, B2, B3, B4, B5
Cut sheets	Yes
Media thickness	0.05 - 0.3 mm
Maximum roll width	91.4 cm
Print margin cut-sheet	3 x 3 x 20 x 3
Borderless printing width	11.81, 12.99, 15.98, 20.28, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll
Roll paper	Yes
Wi-Fi	Yes
Ethernet LAN	Yes
USB port	Yes
USB connector	USB Type-A / USB Type-B
Ethernet LAN data rates	10,100,1000 Mbit/s
Direct printing	Yes
Supported network protocols	TLS, SSL, IEE 802, SNMP, IPSec, IPv6
Mobile printing technologies	Apple AirPrint
Security algorithms	SSL/TLS, SNMP, IPSec
Product colour	Black, Grey, White
Built-in display	Yes
Display	LCD
Colour display	Yes
Display diagonal	10.9 cm (4.3")
Control type	Touch
Internal memory	1024 MB
Maximum internal memory	1000 MB
Sound pressure level (standby)	32 dB
Sound pressure level (printing)	50 dB
Country of origin	Indonesia
Power consumption (standby)	13 W
Power consumption (typical)	38 W
Power consumption (off)	0.25 W
AC input voltage	100-240 V
AC input frequency	50 - 60 Hz
Compatible operating systems	Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Windows operating systems supported	Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP
Mac operating systems supported	Mac OS X 10.6 Snow Leopard
Width	1385 mm
Depth	750 mm
Height	1060 mm
Weight	76 kg
Package width	850 mm
Package depth	1550 mm
Package height	1116 mm
Package weight	112 kg
Drivers included	Yes
Manual	Yes
Line accuracy	+/- 0,1
Minimum line width	0.02 mm
Touchscreen	Yes
Ink drop	4
Compatible products	WorkForce DS-6500, WorkForce DS-60000
Quantity per pack	1 pc(s)
Harmonized System (HS) code	84433210
