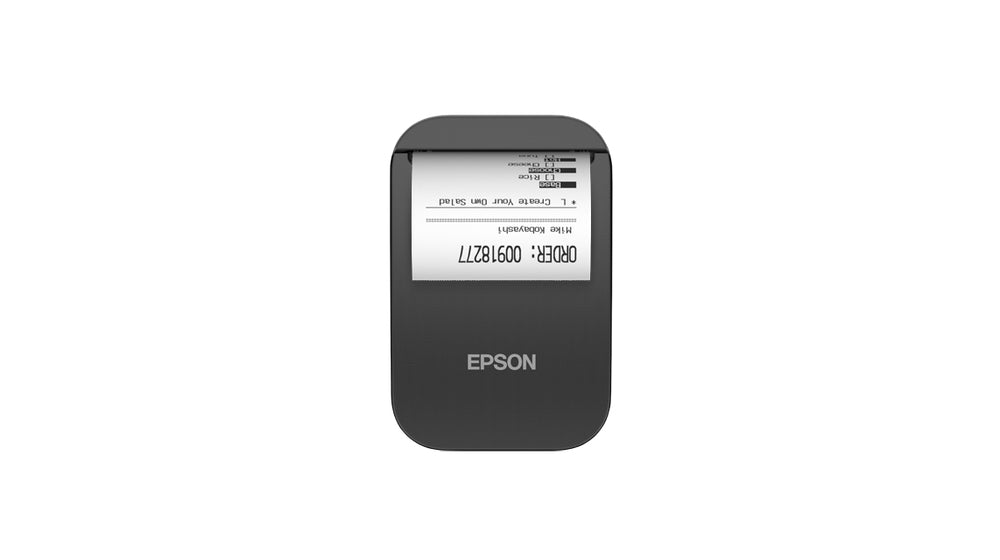

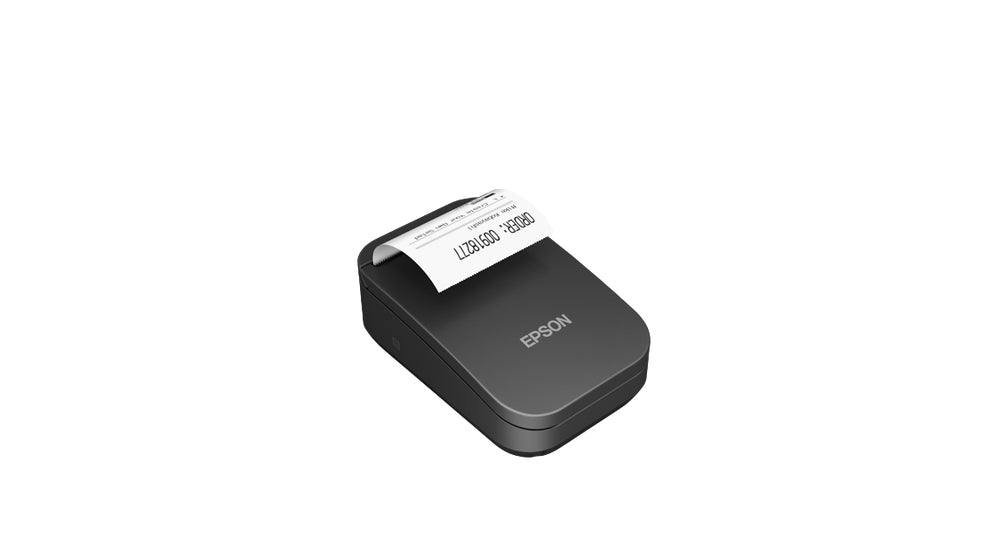

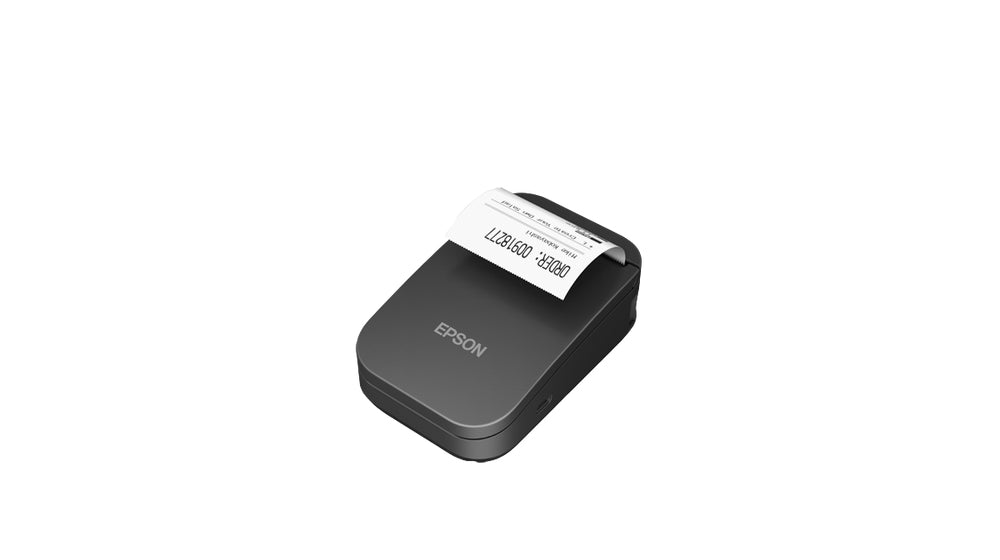

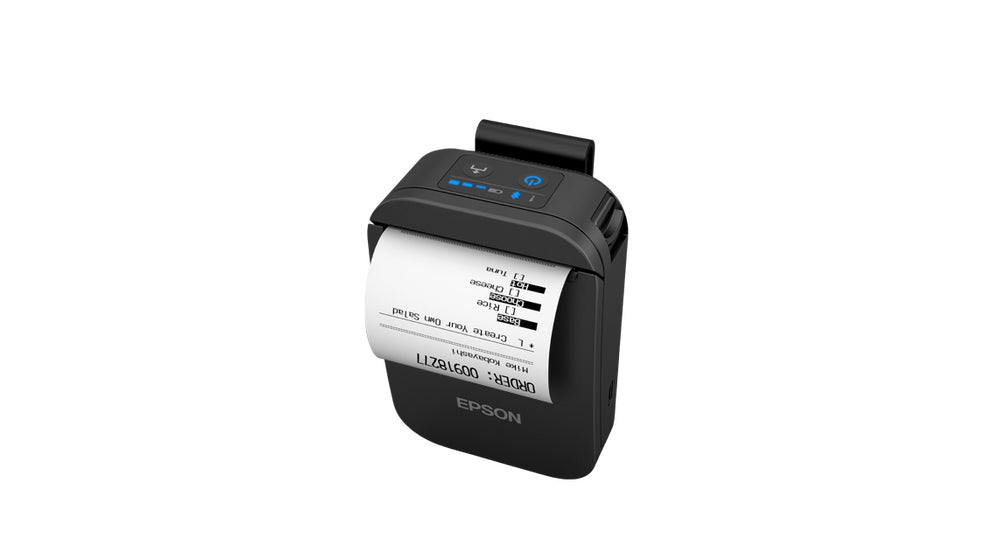

2-inch portable receipt printer
Sporting an all-new, ultra-light and stylish design, this popular receipt printer offers a range of new and advanced features, as well as enhanced durability. Providing outstanding flexibility, reliability, connectivity and ease-of-use, it's perfect for busy, on-the-go environments such as retail, hospitality and in-vehicle applications.

Compact, stylish and ultra-light
Whatever your application, from retail to hospitality, this receipt printer is designed to make life easy. Wi-Fi model weighing only 223g (approx.) and Bluetooth model 216g (approx.), its ultra-light form factor makes it the ideal solution for any on-the-go environment.

Robust and reliable
When you’re out and about, your devices are exposed to many hazards of everyday life. But with its increased impact resistance and protection to IP54 standards, the TM-P20II is designed to withstand most ordinary knocks, as well as exposure to dust and water.

Outstanding connectivity, range and battery life
With USB-C connectivity, plus support for Bluetooth 5.0 “classic” and low-energy modes, it provides excellent range, seamless pairing and reliable all-day battery life, while its Wi-Fi 5 capability means that it offers excellent wireless performance, including a Wi-Fi “Direct” mode enabling direct connection of up to 8 devices without the need to connect to a network or hotspot.

Great for in-vehicle applications
Fully approved for use in vehicles, the highly compact and fully self-contained TM-P20II is easily integrated into your workflow, helping you to become more efficient and productive.

Easy and comfortable to carry
Super-light and ergonomically designed, the TM-P20II can be easily mounted onto a belt, or shoulder carried using an (optional) strap.

Fast, easy set-up
Because the TM-P20II comes with a comprehensive “quick start” sheet, which includes QR-codes that link to video guides, set-up and configuration is simple and hassle-free - so you can be up and running almost instantly.

Colour	No
Maximum resolution	203 x 203 DPI
Print speed	100 mm/sec
Print speed (receipt)	100 mm/sec
Printing characters	Graphic, Barcode, 2D barcode, Text
Print technology	Thermal
Type	Mobile printer
Paper loading type	Top & front
Printing media thickness	75 µm
Supported paper width	58 mm
Maximum printing width	5.8 cm
USB port	Yes
USB connector	USB Type-C
Bluetooth	Yes
Bluetooth version	5.0
Connectivity technology	Wired & Wireless
Near Field Communication (NFC)	Yes
Interface	Bluetooth, USB Type-C
Built-in barcodes	Code 128 (A/B/C), CODABAR (NW-7), UPC-E, UPC-A, GS1 DataBar, EAN8, GS1-128, EAN13, Code 39, Data Matrix, Code 93, ITF, MaxiCode, PDF417
Sound pressure level (printing)	53 dB
Mean time between failures (MTBF)	120000 h
Cutter	Yes
Paper save function	Yes
Print head life	50 km
Country of origin	Philippines
Product colour	Black
Power source type	DC
AC input voltage	7.2 V
Battery life (max)	27 h
Operating temperature (T-T)	-15 - 50 °C
Storage temperature (T-T)	-25 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Width	79 mm
Depth	120 mm
Height	46 mm
Weight	220 g
Cables included	USB
Quantity per pack	1 pc(s)
Package width	220 mm
Package depth	162 mm
Package height	95 mm
Package weight	596 g
Battery capacity	1240 mAh
Products per pallet	288 pc(s)
Products per pallet layer	32 pc(s)
Products per pallet (UK)	432 pc(s)
Products per pallet layer (UK)	48 pc(s)
Font styles	ANK, BIG5, GB18030-80, JIS X0208-90, KSC-5601C, Traditional Chinese, Simplified Chinese
Box contents	Battery (OT-BY20), Belt clip, Main unit, Quick Start Guide, Roll paper, Setup guide, USB cable, Warranty document
Paper size roll paper	57.50 ± 0.50 (W) mm x dia 40.00 mm
Print speed	Max. 100 mm/sec at 203 x 203 DPI ( printing width58 mm)
Technology	Thermal Line
Buffer size	64 KB
