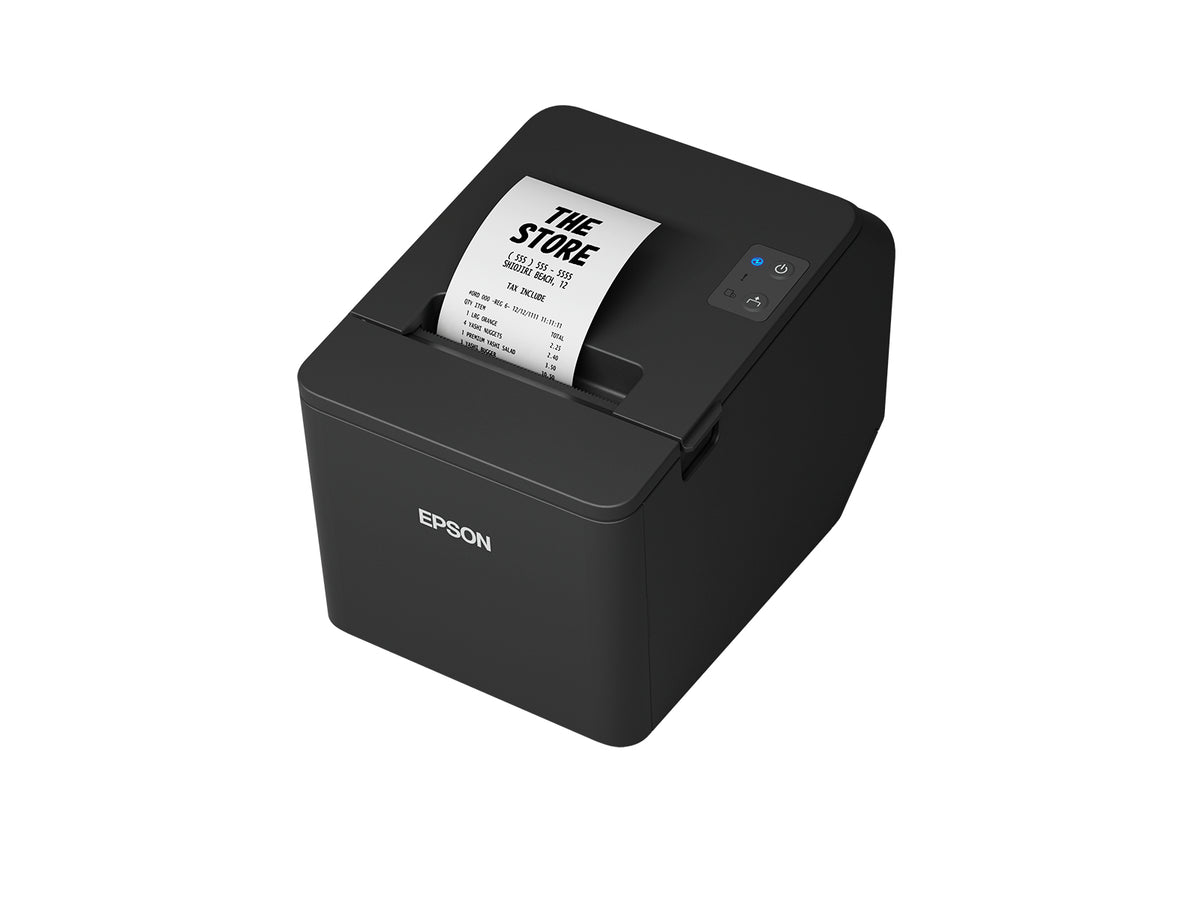

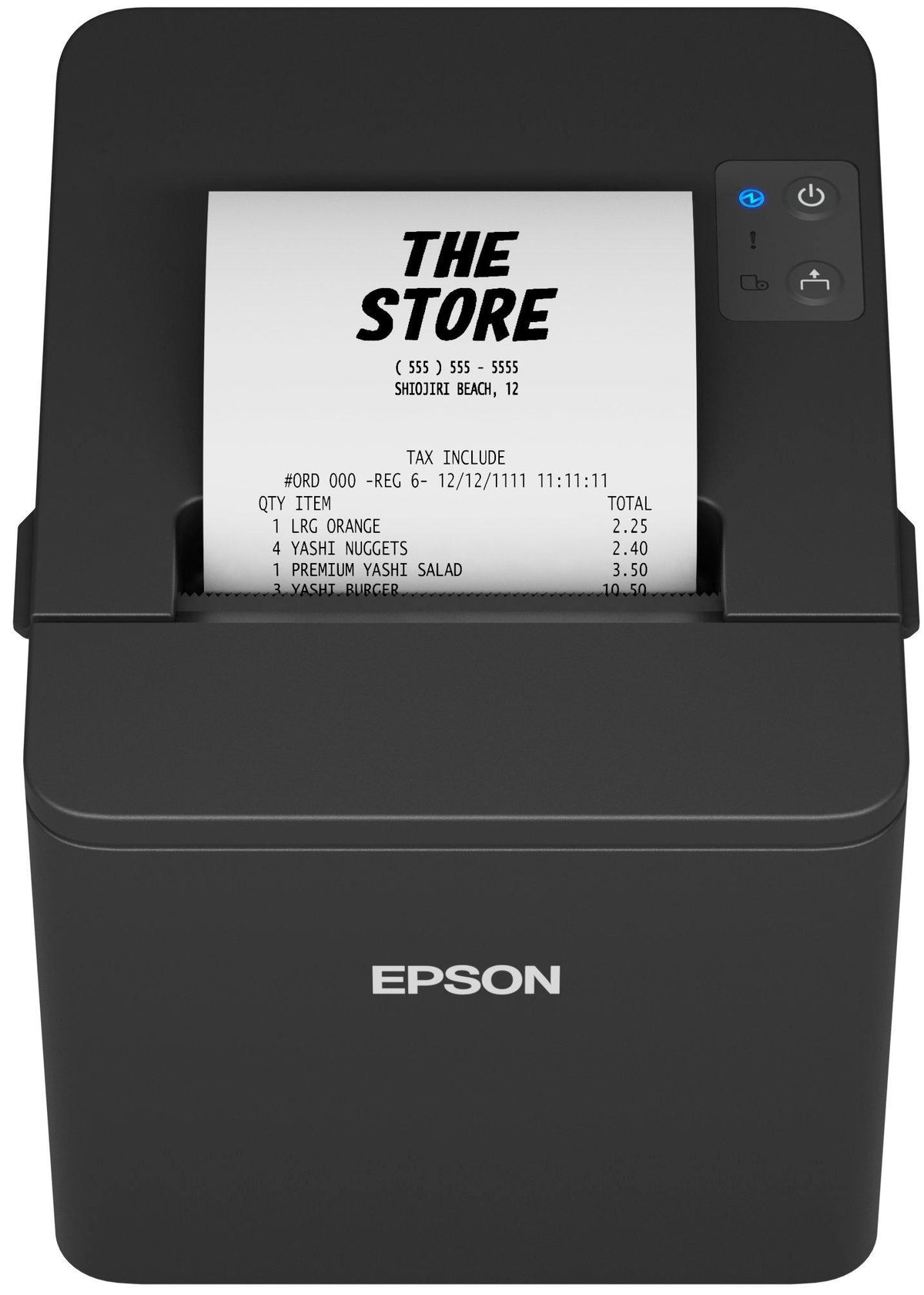

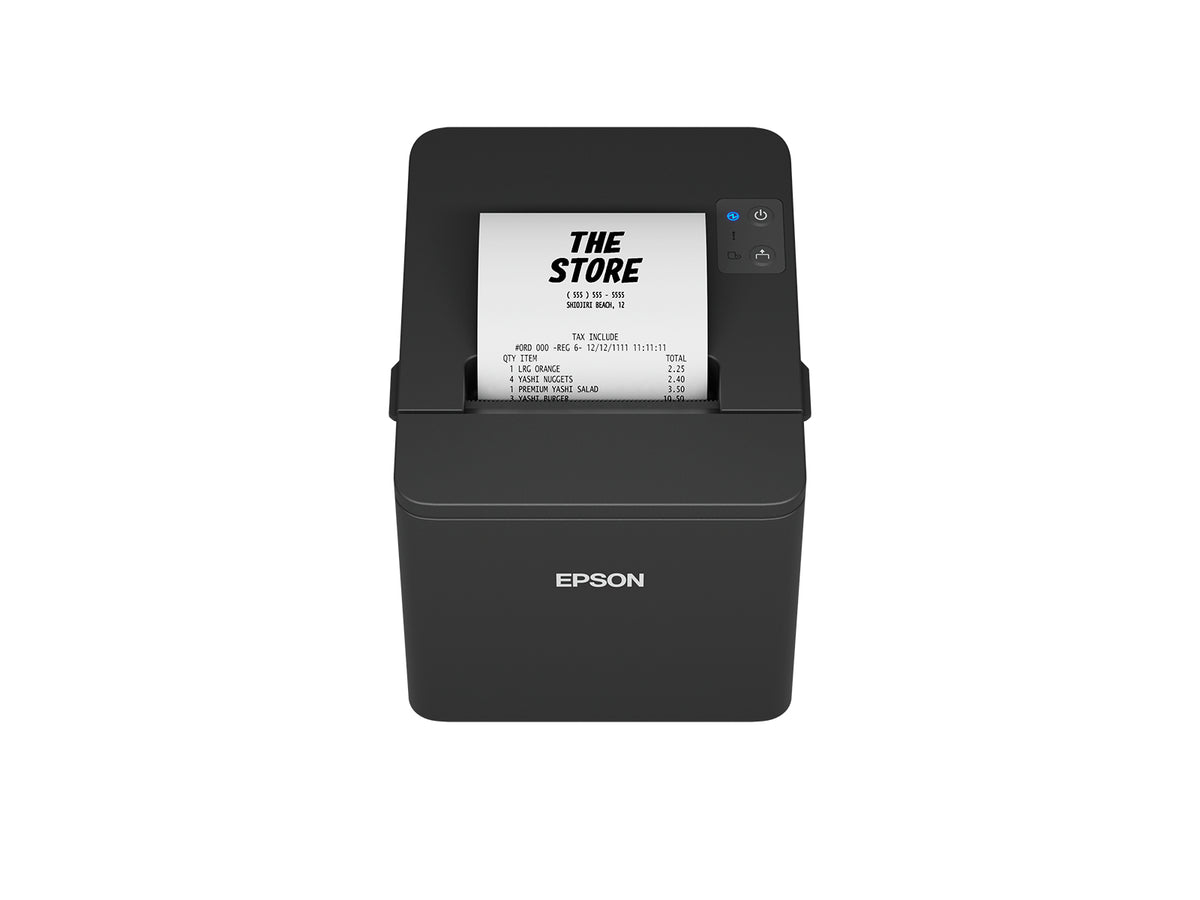

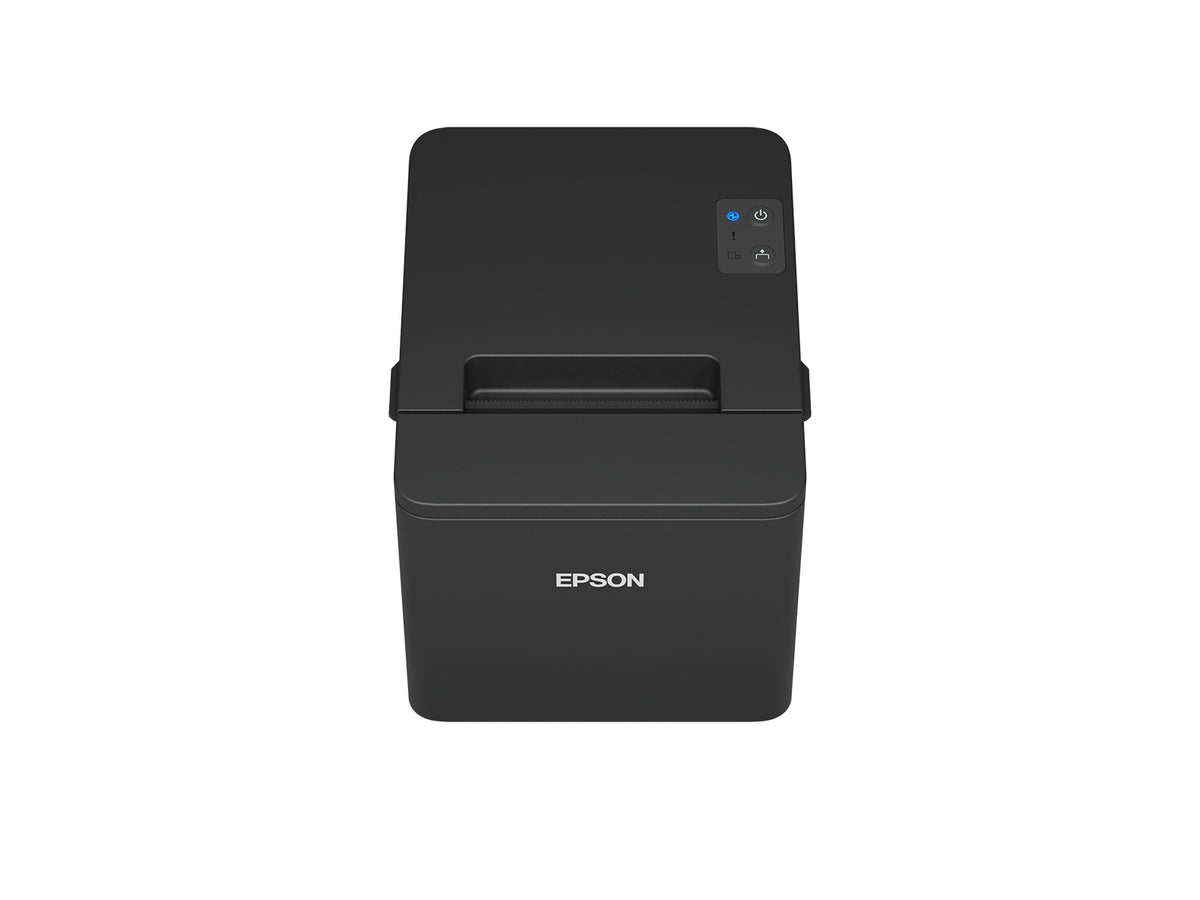

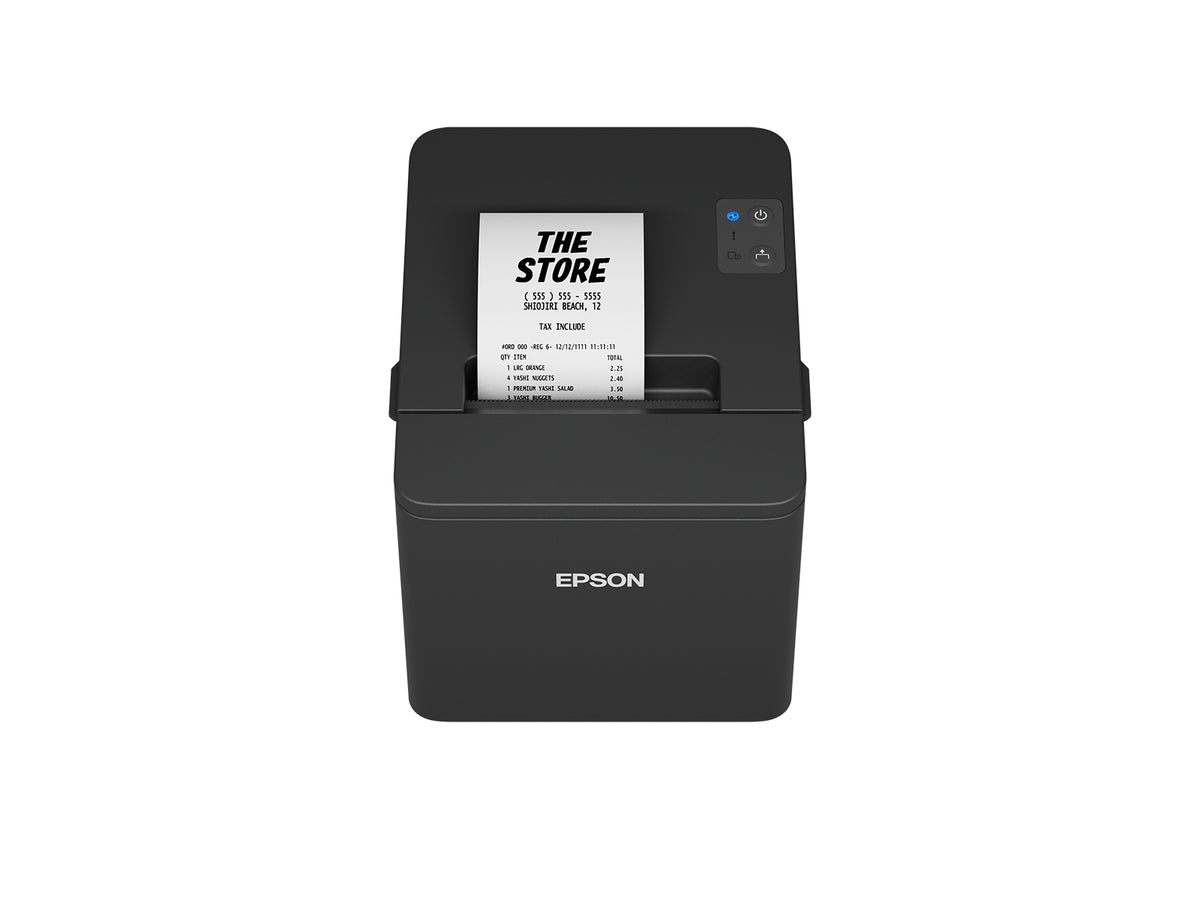

POS receipt printer
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.

Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.

Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20IV in high-volume printing environments.

Flexible
The TM-T20IV comes with a built-in USB + Serial interface, making the model a long-term investment as it is possible to switch connectivity at any time.

Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.

Colour	No
Maximum resolution	203 x 203 DPI
Print speed	250 mm/sec
Character size	1.25 x 3 mm
Character density	22.6 cpi
Printing characters	Graphic
Print technology	Thermal
Type	POS printer
Printing media thickness	53 - 75 µm
Maximum roll diameter	8.3 cm
Supported paper width	80 mm
USB port	Yes
USB 2.0 ports quantity	1
USB connector	USB Type-B
Serial interface	Yes
Serial interface type	RS-232
Connectivity technology	Wired
Interface	RS-232, Drawer kick-out, USB 2.0
Optional connectivity	Ethernet, Wireless LAN
Ethernet LAN	No
Wi-Fi	No
Built-in barcodes	CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Sound pressure level (printing)	55 dB
Mean time between failures (MTBF)	360000 h
Cutter	Yes
Autocutter durability	2 million cuts
Print head life	150 km
Country of origin	Philippines
Wall mountable	Yes
Receive buffer	4 KB
Built-in sensors details	Paper End Sensor, Paper Near End Sensor
Safety	UL, CSA, TÜV
Product colour	Black
Power source type	DC
Power consumption (printing)	27.2 W
AC input voltage	100 - 230 V
AC input frequency	50/60 Hz
DC output voltage	24 V
Power consumption (standby)	0.96 W
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	10 - 90%
Windows operating systems supported	Yes
Mobile operating systems supported	Android, iOS
Width	140 mm
Depth	199 mm
Height	146 mm
Weight	1.7 kg
Cables included	AC
Quantity per pack	1 pc(s)
Package width	195 mm
Package depth	235 mm
Package height	280 mm
Package weight	2.65 kg
AC adapter included	Yes
Products per pallet	112 pc(s)
Products per pallet layer	16 pc(s)
Pallet gross width	80 cm
Pallet gross length	120 cm
Pallet gross height	2.11 m
Products per pallet (UK)	168 pc(s)
Products per pallet layer (UK)	24 pc(s)
Pallet length (UK)	120 cm
Pallet height (UK)	2.11 m
Font styles	ANK
Box contents	AC adapter, C1, Cable cover, EURO AC cable, Main unit, Paper roll spacer
Paper size roll paper	79.50 ± 0.50 (W) mm x dia 83.00 mm, 57.50 ± 0.50 (W) mm x dia 83.00 mm
Technology	Thermal Line
Voltage	24 V
Compliance certificates	CE
Safety warning	UL62368-1, CAN/CSA C22.2 No.62368-1
Power consumption	Standby:0.1 A, Mean:1.8 A
Buffer size	4 KB
Mean cycles between failures (MCBF)	60000000
