| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Yes |
| Web-based management |
Yes |
| MIB support |
Y |

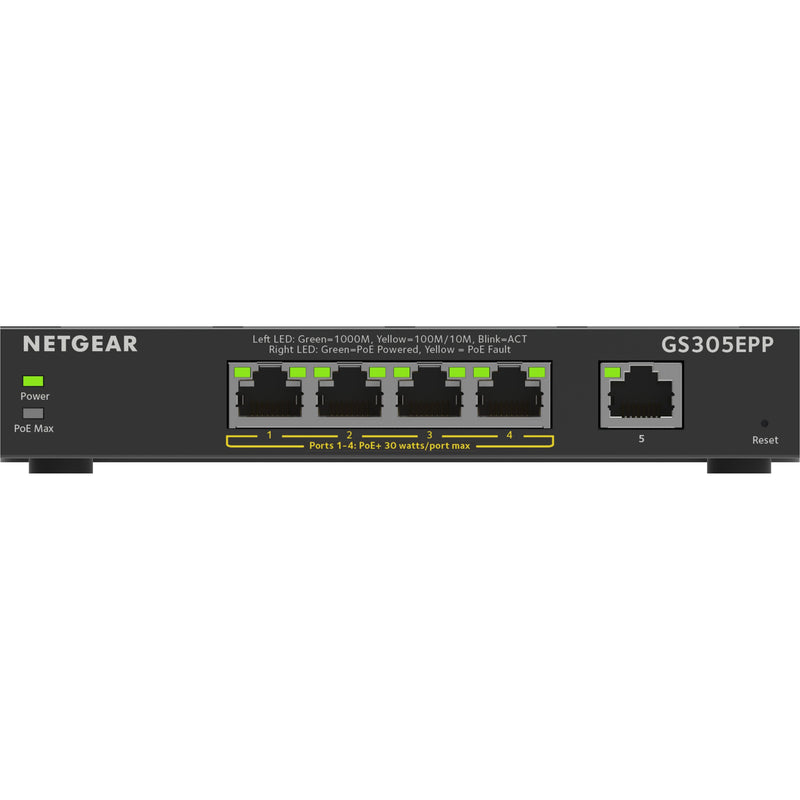

| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |

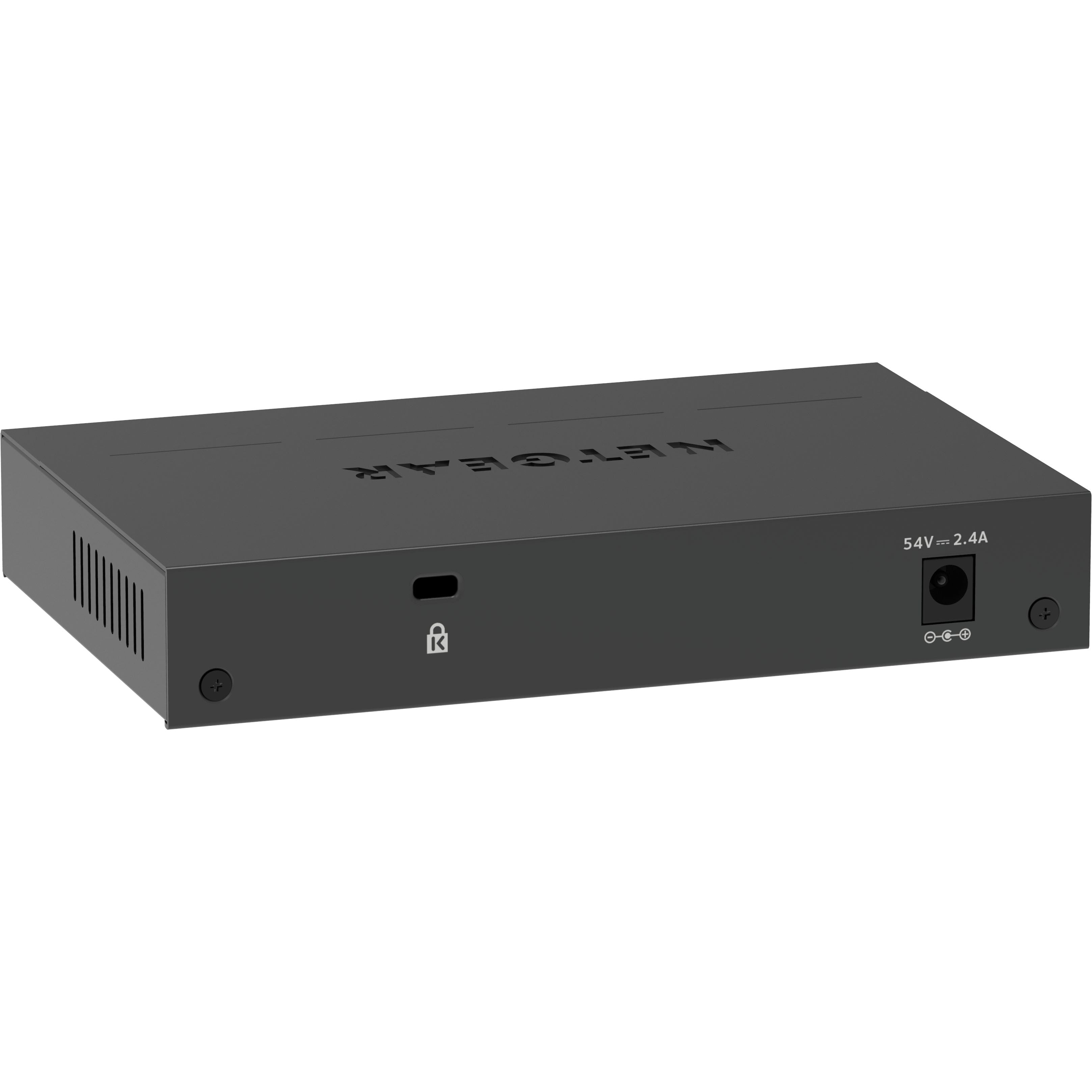

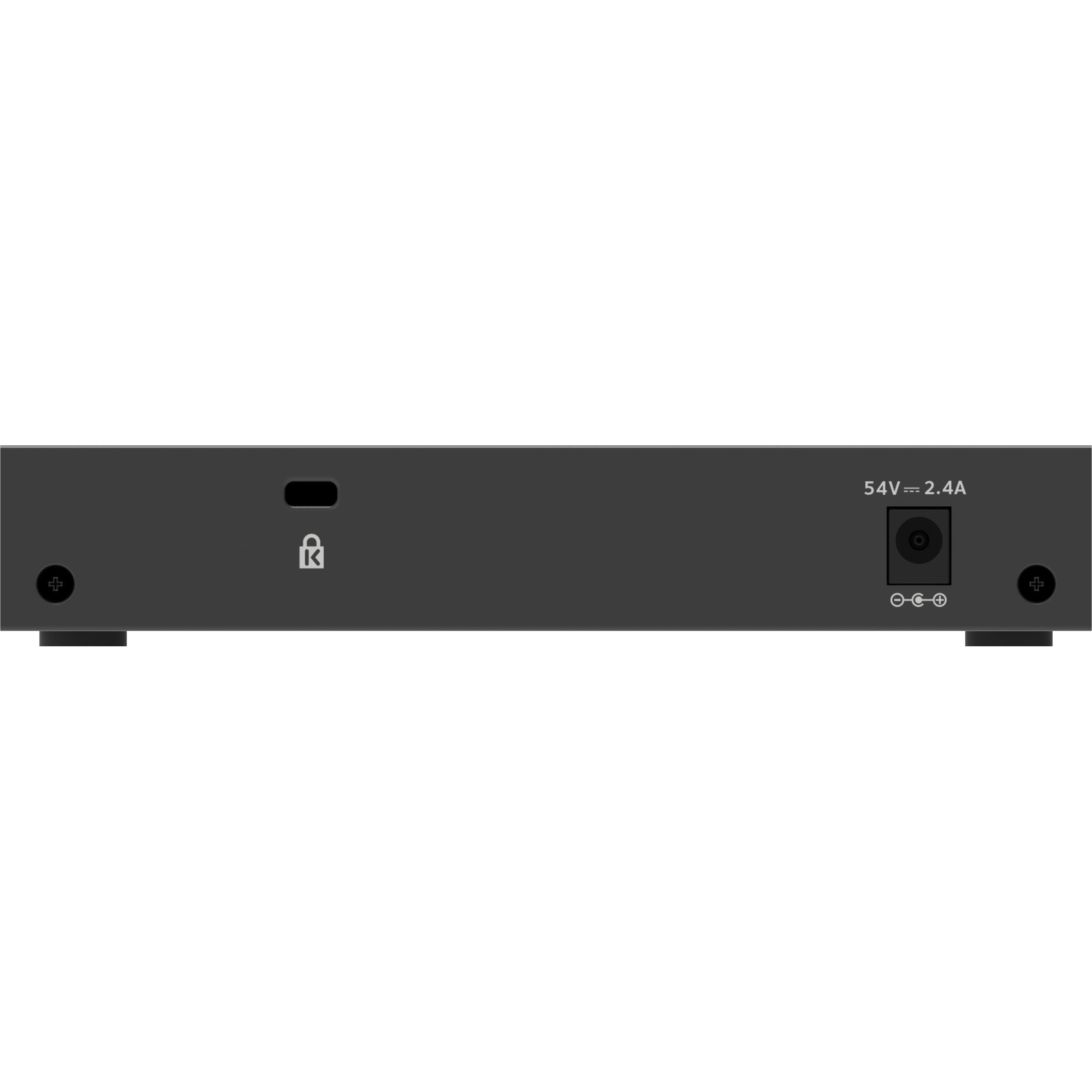

| Power connector |
DC-in jack |
| Networking standards |
IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3at, IEEE 802.3af |
| 10G support |
No |
| Port mirroring |
Yes |
| Full duplex |
Yes |
| Flow control support |
Yes |
| Link aggregation |
Yes |
| Broadcast storm control |
Yes |
| Ethernet LAN data rates |
100 Mbit/s |
| VLAN support |
Yes |
| Switching capacity |
10 Gbit/s |
| MAC address table |
4000 entries |
| Jumbo frames support |
Yes |
| Jumbo frames |
9216 |
| DHCP features |
DHCP client |
| IGMP snooping |
Yes |
| Loop protection |
Yes |
| Multicast support |
Yes |
| Product colour |
Black |

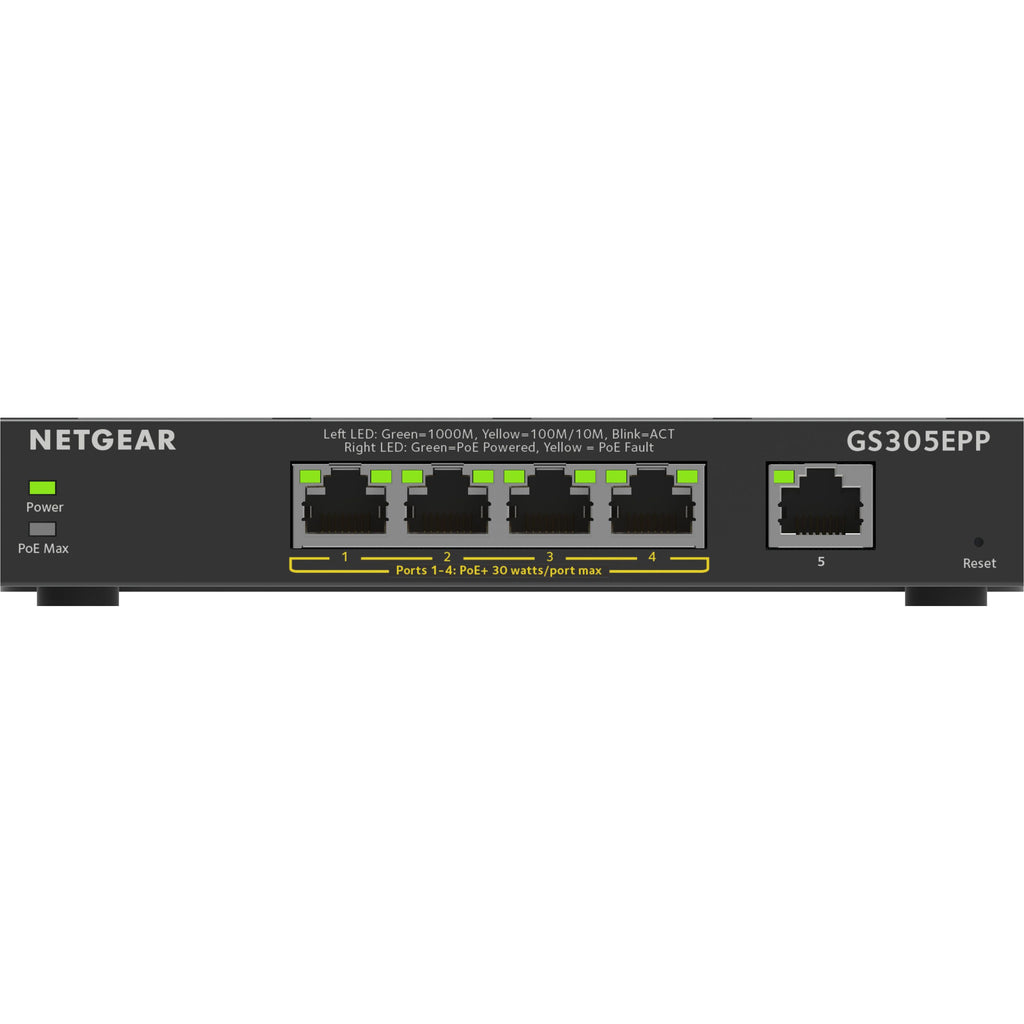

| LED indicators |
Yes |
| Power source |
DC |
| Power supply included |
Yes |
| Power over Ethernet (PoE) |
Yes |
| Power over Ethernet (PoE) ports quantity |
4 |
| Power over Ethernet plus (PoE+) ports quantity |
4 |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 70 °C |
| Operating relative humidity (H-H) |
0 - 90% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Width |
158 mm |
| Depth |
101 mm |
| Height |
27 mm |
| Cables included |
AC |
| Harmonized System (HS) code |
85176990 |
