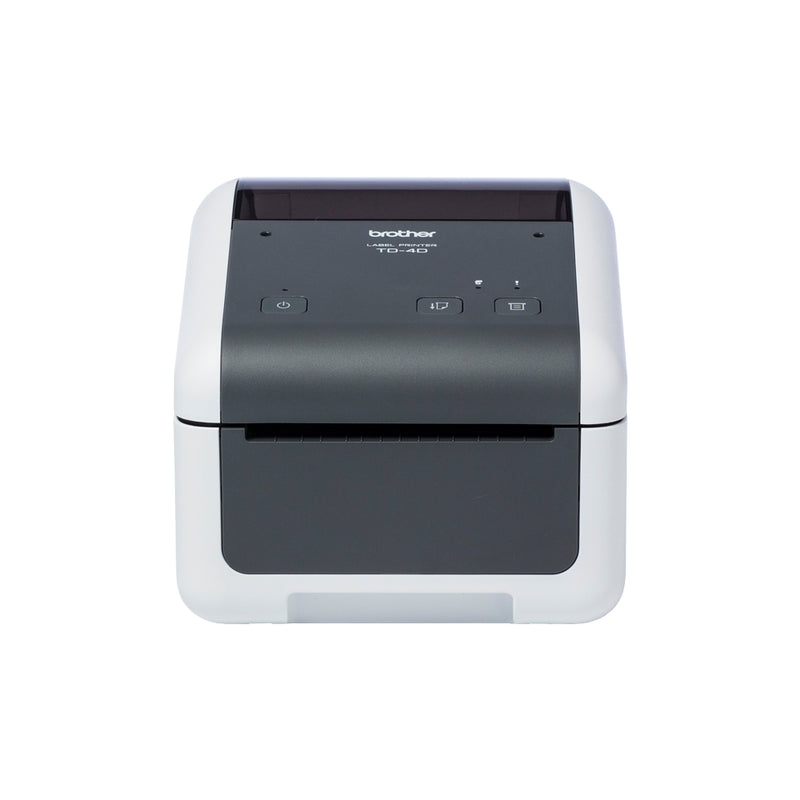

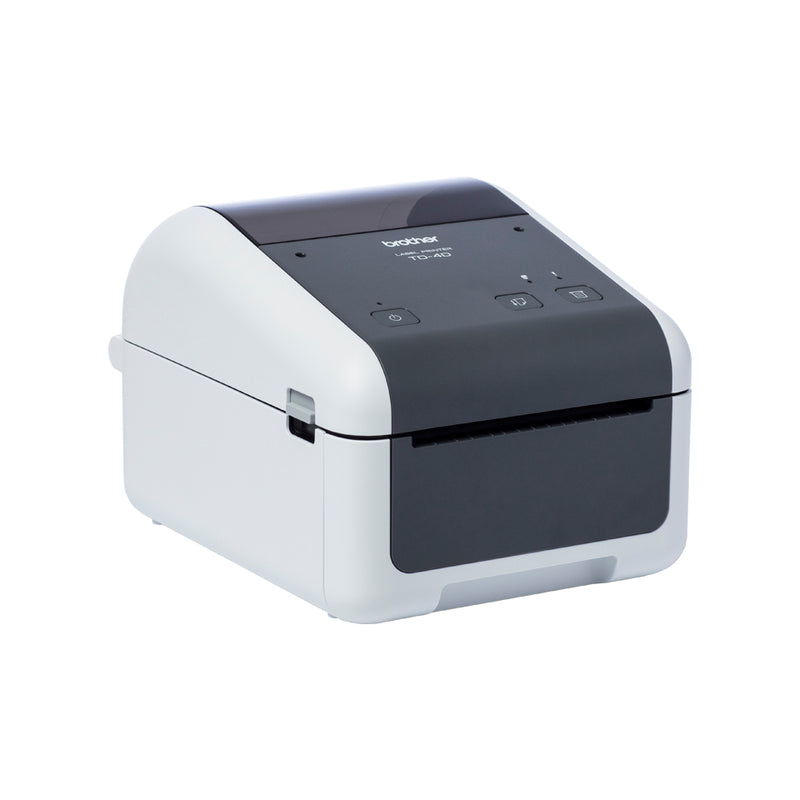

TD-4520DN Professional Network Desktop Label Printer

Print high quality, continuous labels using media up to 118mm/4.65 inch wide. With built-in network for easy sharing.

Using direct thermal print technology, accurate images with crisp definition is created. Great for printing high-volume, temporary labels with barcodes.

The length of media is automatically calculated with the media calibration function. Removing the need of manually entering label dimensions.

With network connectivity, data is quickly shared with different departments. Make the TD-4520DN bespoke to your needs with a range of accessories including a peeler and cutter.

Crop function

Ideal for creating shipping labels. Your A4 dispatch document is scanned and the barcode information is automatically processed. Individual labels are then printed from your TD-4520DN desktop label printer.

Seamless integration

To support integration, many printer command languages are supported. Including ZPL II emulation, Raster, CPCL emulation enabling integration into legacy systems.

Print from your Windows PC

Create customer labels using Brother P-touch Editor. Easily add your company logo or select from hundreds of built-in images, symbols, barcodes and frames. Also, link to excel data to batch print labels.

Network connectivity

Sharing the TD-4520DN is simple with the integrated network port. Increase your teams productivity with this network desktop label printer. Many users can share the printer in a variety of locations.

Software support

Brother provides the tools for developers to integrate their printing applications. Printer drivers are available for Windows Operating Systems. Software Development Kits are available to embed label printing into existing software programs.

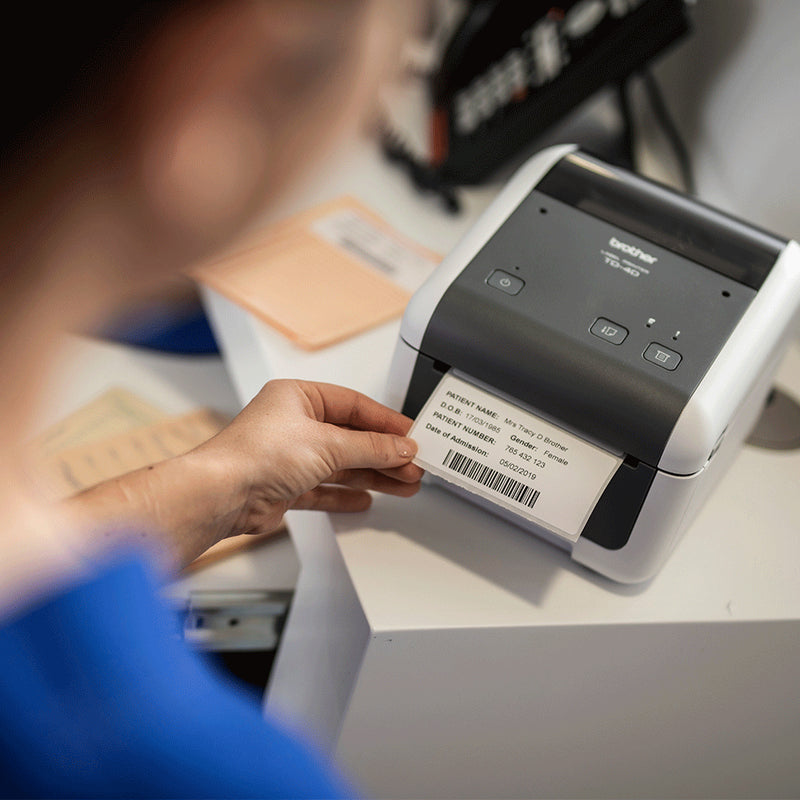

Healthcare, medical and laboratory

With the strict regulations on the tracking of patient specimens and other items within the healthcare industry, clear, high quality labelling is essential to maintain safety and traceability.

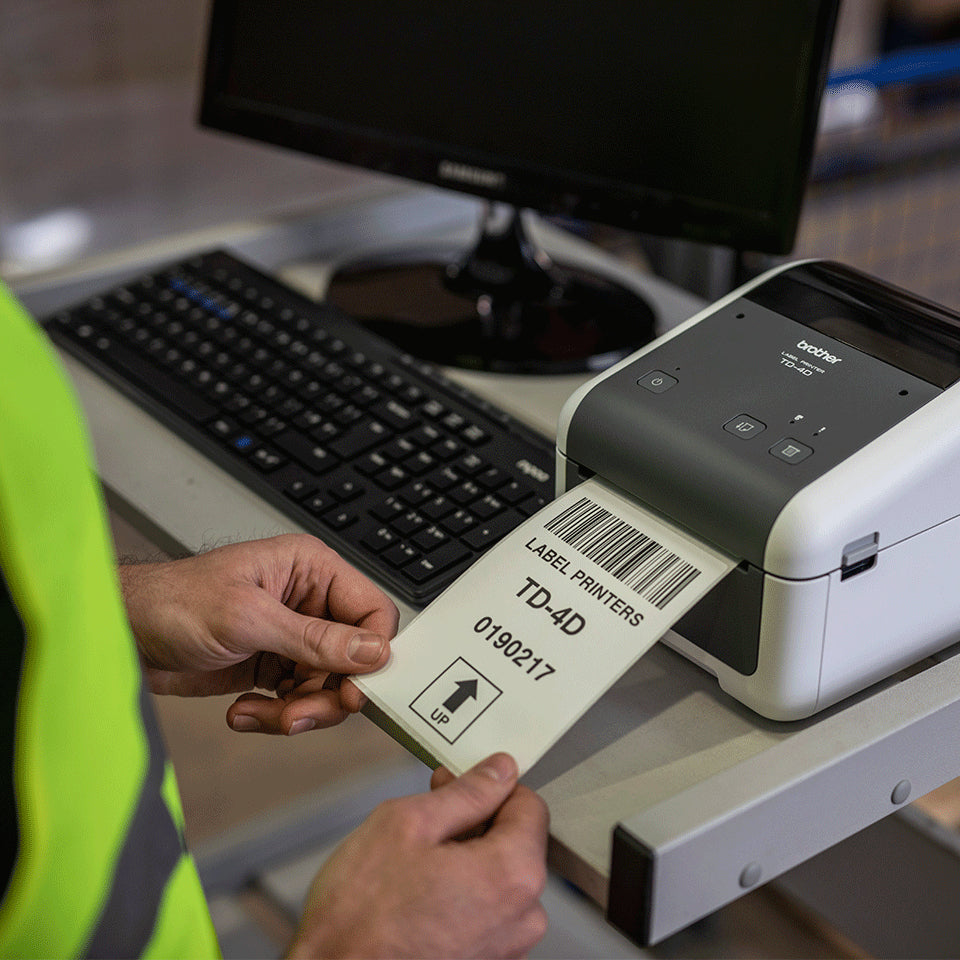

Warehousing and logistics

Efficient warehousing operation and worker productivity are critical to the success of many companies. With the most common sizes of shipping labels available and the ability to create custom size labels, there are many uses for these models in the warehouse.

Retail

Easy to read labels are essential for consumers to help make informed decisions prior to a potential purchase. The high print resolution and high quality labels used in this range ensure that every output printed looks professional, offering sharp text, logos and barcodes with a high contrast to ensure faultless scanning at the checkout.

Print technology	Direct thermal
Colour	N
Maximum resolution	300 x 300
Print speed	6
Maximum print height	108
Mirror printing	Y
Text style	Bold,Horizontal lines,Invert,Italic,Normal,Shadow,Shadow light,Surround
Maximum print length	3
Maximum label width	118
Maximum roll diameter	127
Core diameter	12.7
Connectivity technology	Wired
Ethernet LAN	Y
Wi-Fi	N
Bluetooth	N
USB port	Y
USB 2.0 ports quantity	1
RS-232 ports	1
Page description languages	ESC P,Raster_P,ZPL II
Internal memory	256
Flash memory	64
Number of fonts	6
Font styles	Brougham,Brussels,Helsinki,Letter Gothic,San Diego
Product colour	Grey,White
Display	N
Auto power off	Y
Windows operating systems supported	Windows 10,Windows 7,Windows 8,Windows 8.1
Server operating systems supported	Windows Server 2008,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Mobile operating systems supported	Android 4.1,Android 4.2,Android 4.2.1,Android 4.2.2,Android 4.3,Android 4.4,Android 5.0,Android 5.1,Android 6.0,Android 7.0,Android 7.1,Android 7.1.2,Android 8.0,Android 9.0,iOS 10.0,iOS 11.0,iOS 12,iOS 8.0,iOS 8.1,iOS 8.2,iOS 8.3,iOS 8.4,iOS 9.0,iOS 9.1,iOS 9.2,iOS 9.3
Linux operating systems supported	Y
Operating relative humidity (H-H)	5 - 40
Storage relative humidity (H-H)	20 - 85
Operating temperature (T-T)	10 - 90
Storage temperature (T-T)	-20 - 60
Width	108
Depth	155
Height	224
Weight	2080
Quantity per pack	1
Cables included	AC,USB
Quick start guide	Y
Warranty card	Y
AC adapter included	Y
Software development kit (SDK)	Y
Starter roll included	Y
Harmonized System (HS) code	84433210
LED indicators	Error,Power,Status
Languages support	CHI (SIMPL),CZE,DAN,DEU,DUT,ENG,ESP,FIN,FRE,HUN,ITA,JPN,NOR,POL,POR,RUS,SWE,TUR
Date & time printing	Y
Number of languages	18
