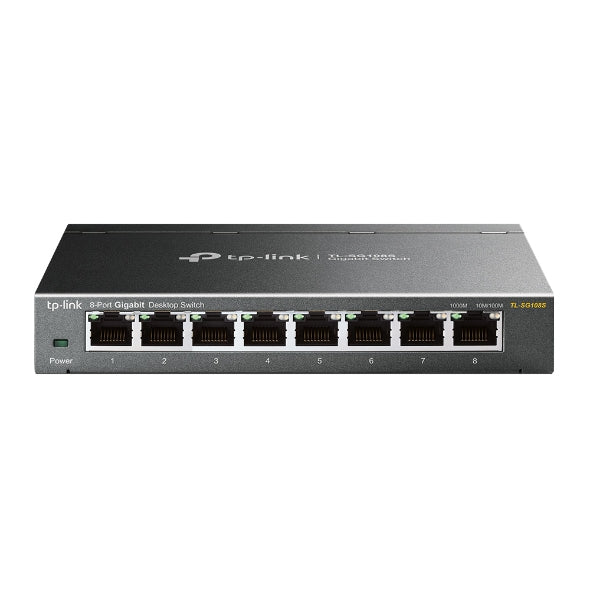

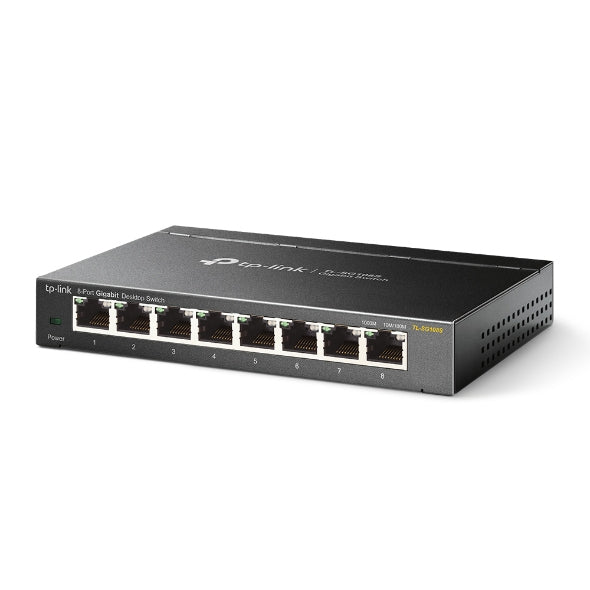

TP-Link 8-Port 10/100/1000Mbps Desktop Network Switch. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. Full duplex. MAC address table: 4000 entries, Switching capacity: 16 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Wall mountable
| Switch type |
Unmanaged |
| Quality of Service (QoS) support |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Switching capacity |
16 |
| Forwarding rate |
11.9 |
| MAC address table |
4000 |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| Packet buffer memory |
1.5 |
| IGMP snooping |
Y |
| Rack mounting |
N |
| Product colour |
Black |
| LED indicators |
Y |
| Wall mountable |
Y |
| Certification |
CE, FCC ,RoHS |
| Plug and Play |
Y |
| Power source |
DC |
| Power supply included |
Y |
| Input current |
0.6 |
| Input voltage |
9 |
| Output voltage |
9 |
| Power consumption (max) |
3.3 |
| Power over Ethernet (PoE) |
N |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Width |
158 |
| Depth |
100.6 |
| Height |
25.4 |
| Cables included |
AC |
| Quick start guide |
Y |
| AC adapter included |
Y |
| Package type |
Box |
| Rubber feet |
Y |
| Package width |
191 |
| Package depth |
130 |
| Package height |
92 |
| Package weight |
520 |
| Harmonized System (HS) code |
85176990 |
