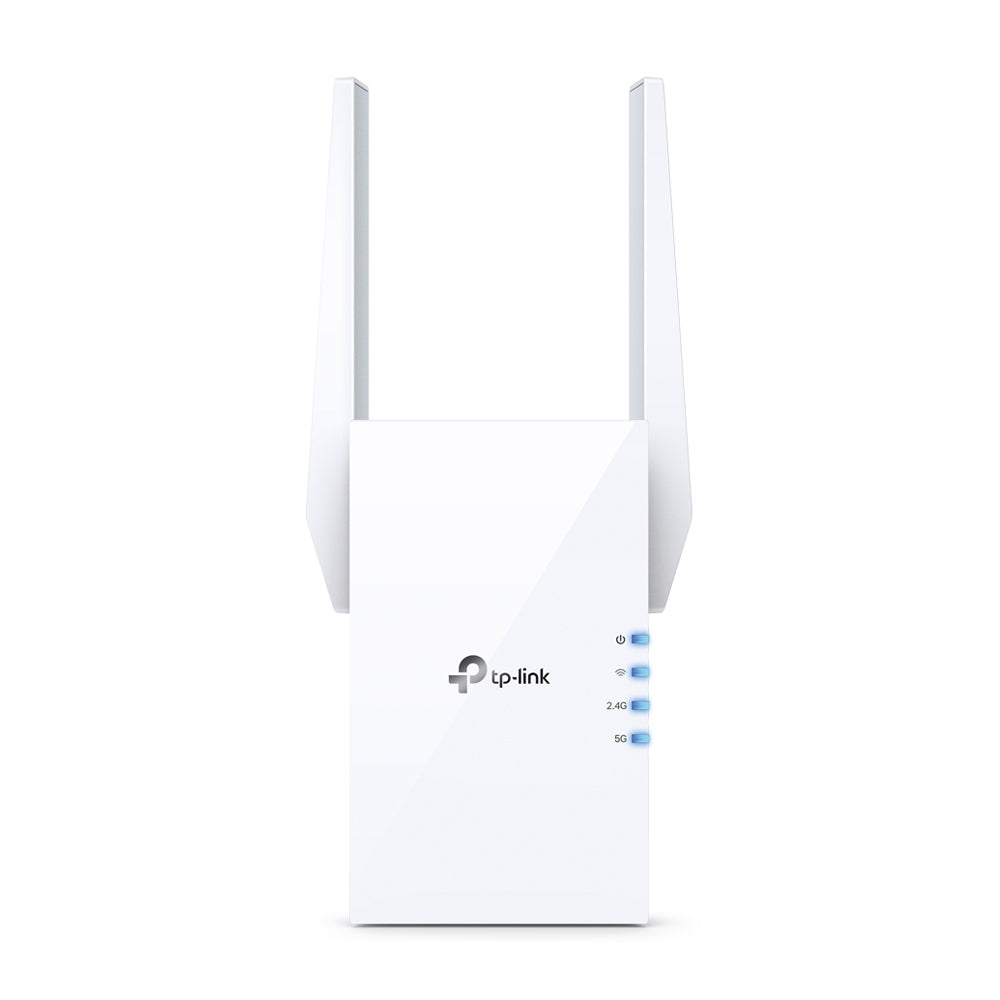

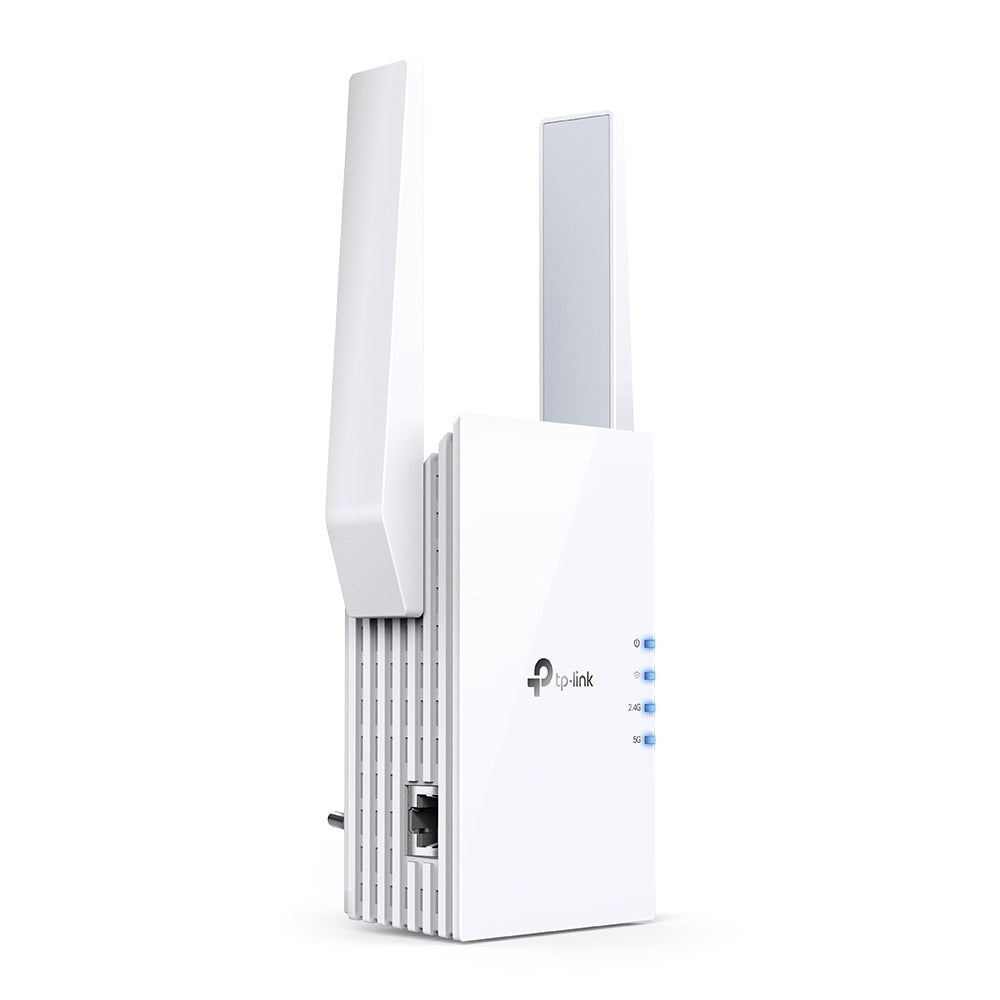

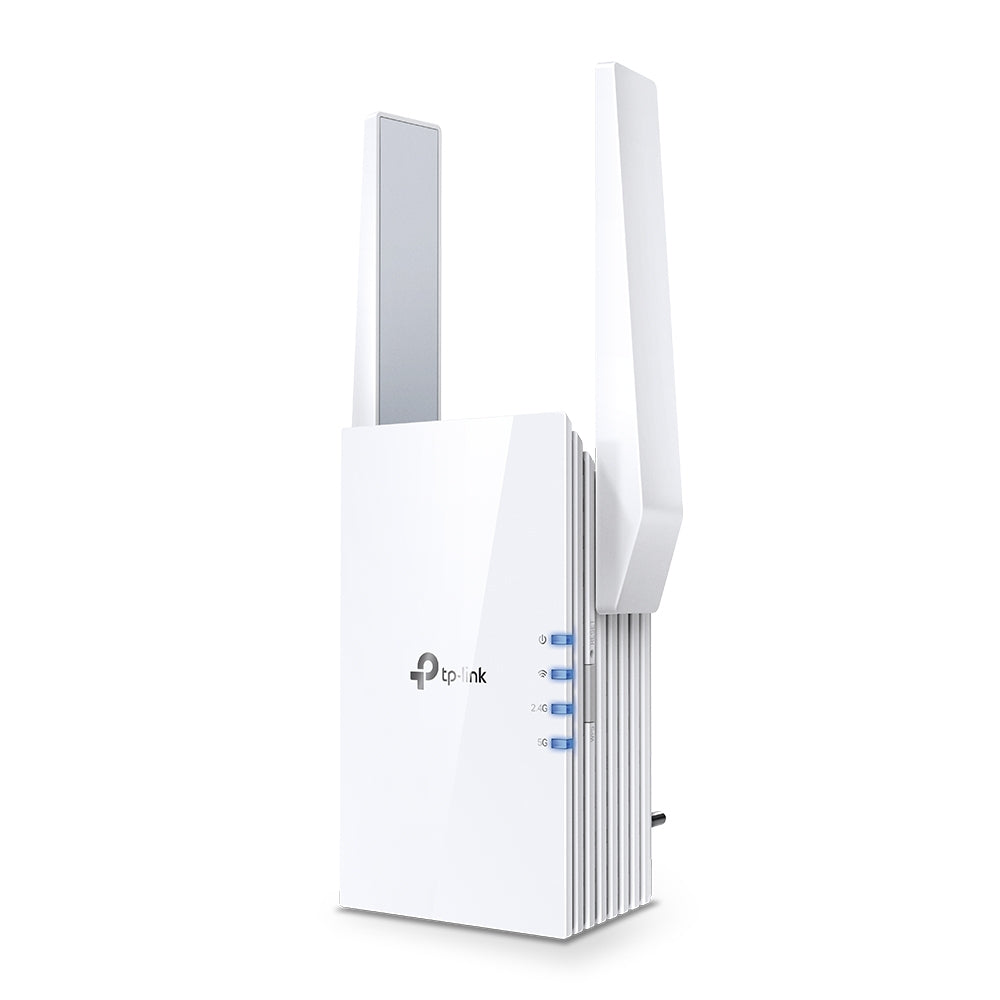

TP-Link AX1800 Wi-Fi Range Extender. Type: Network repeater, Data transfer rate: 1201 Mbit/s, Ethernet LAN data rates: 10,100,1000 Mbit/s. Antenna type: External, Transmitting power (CE): 2.4 GHz ≤15dBm, 5 GHz ≤21dBm. Cabling technology: 10/100/1000Base-T(X), Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Product colour: White, Quantity per pack: 1 pc(s), Country of origin: China. AC input voltage: 100 - 240 V, AC input frequency: 50/60 Hz, Power consumption (typical): 10 W
| Type |
Network repeater |
| Data transfer rate |
1201 |
| Ethernet LAN data rates |
10,100,1000 |
| WPS push button |
Y |
| Windows operating systems supported |
Windows 10,Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| Mac operating systems supported |
Y |
| Linux operating systems supported |
Y |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Antennas quantity |
2 |
| Antenna type |
External |
| Transmitting power (CE) |
2.4 GHz ≤15dBm, 5 GHz ≤21dBm |
| Cabling technology |
10/100/1000Base-T(X) |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Wi-Fi |
Y |
| Wi-Fi standards |
802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
| Wi-Fi data rate (max) |
1200 |
| Wi-Fi band |
Dual-band (2.4 GHz / 5 GHz) |
| Security algorithms |
64-bit WEP,128-bit WEP,WPA-PSK,WPA2-PSK |
| Ethernet LAN (RJ-45) ports |
1 |
| Product colour |
White |
| LED indicators |
Y |
| Quantity per pack |
1 |
| Country of origin |
China |
| Reset button |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50/60 |
| Power consumption (typical) |
10 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Width |
74 |
| Depth |
46 |
| Height |
124.8 |
| Sustainability certificates |
CE,RoHS |
| Commodity Classification Automated Tracking System (CCATS) |
85183095 |
| Quick start guide |
Y |
| Package type |
Box |
| Package width |
202 |
| Package depth |
125 |
| Package height |
97 |
| Package weight |
420 |
| Harmonized System (HS) code |
85176990 |
