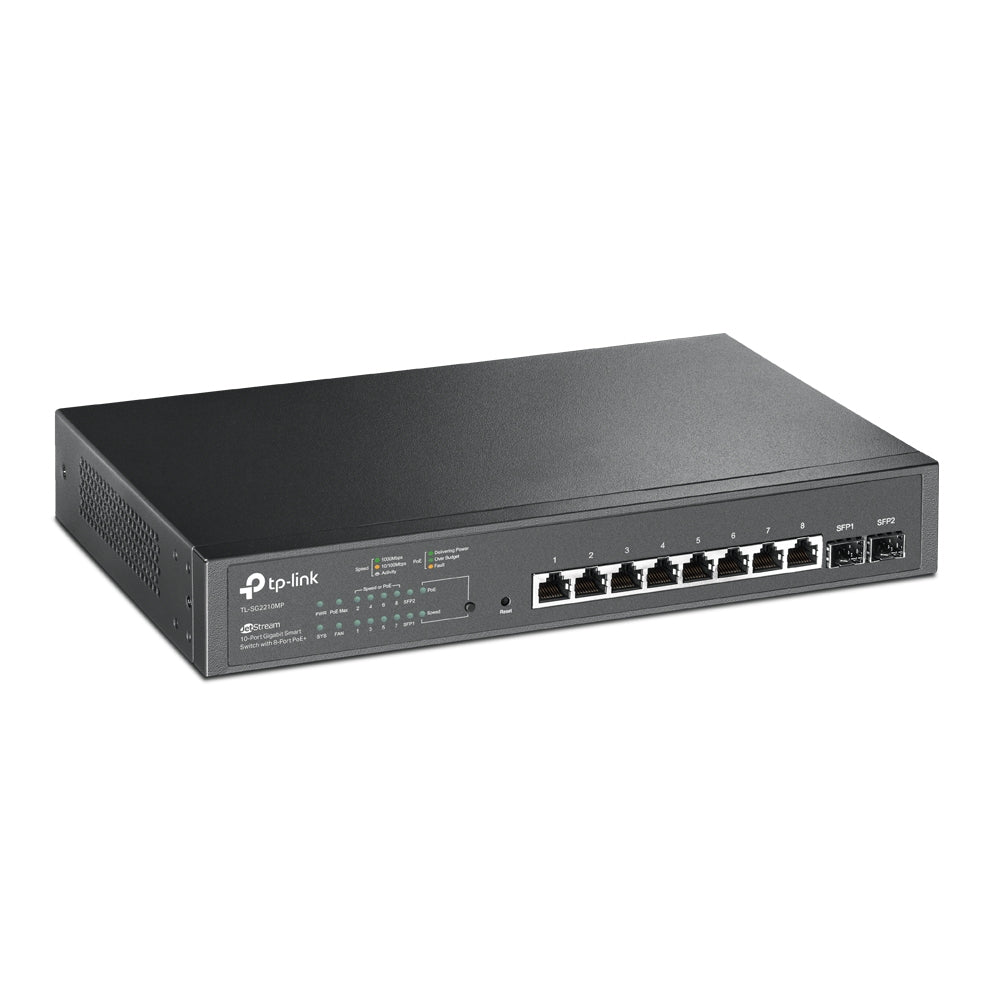

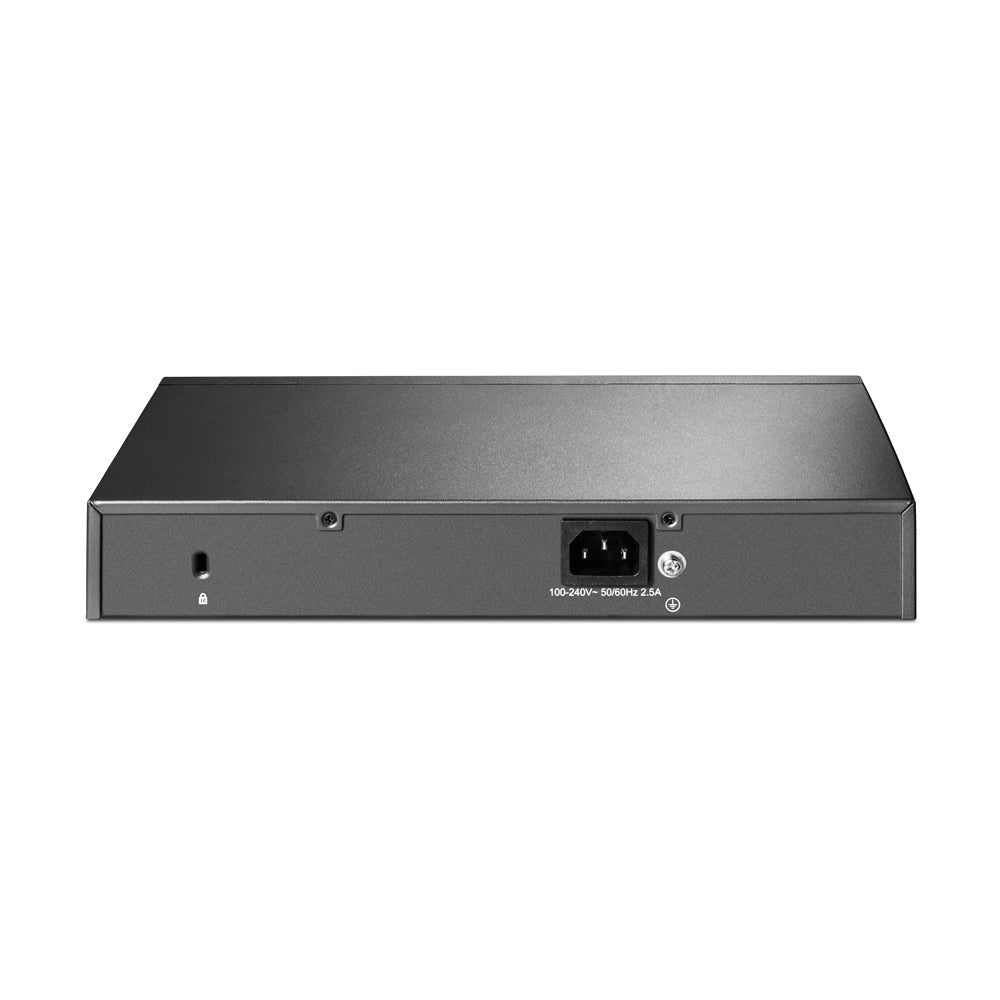

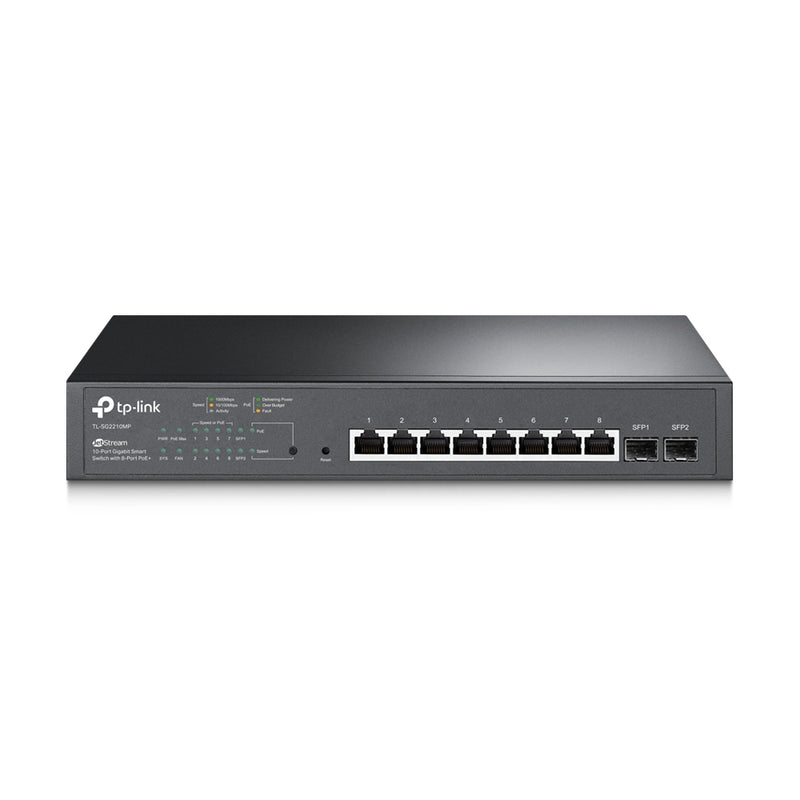

TP-Link JetStream 10-Port Gigabit Smart PoE Switch with 8-Port PoE+. Switch type: Managed, Switch layer: L2/L2+. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 8. MAC address table: 8000 entries, Switching capacity: 20 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE.... Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Switch type |
Managed |
| Switch layer |
L2/L2+ |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| System event log |
Y |
| MIB support |
RFC2925, RFC2618, RFC2620, RFC2021, RFC2819, RFC2674, RFC1213, RFC2233, RFC1643, RFC1493 |
| Basic switching RJ-45 Ethernet ports quantity |
8 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
8 |
| SFP module slots quantity |
2 |
| Networking standards |
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Port mirroring |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| VLAN support |
Y |
| Virtual LAN features |
MAC address-based VLAN,Multicast VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs |
4000 |
| Fiber ethernet cabling technology |
100BASE-FX,1000BASE-X |
| Switching capacity |
20 |
| Forwarding rate |
14.9 |
| MAC address table |
8000 |
| Number of queues |
8 |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Packet buffer memory |
4.1 |
| DHCP features |
DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| Security algorithms |
EAP-LEAP,EAP-MD5,EAP-TLS,EAP-TTLS,HTTPS,SNMP,SNMPv2,SNMPv3,SSH,SSH-2,SSL/TLS |
| SSH/SSL support |
Y |
| BPDU filtering/protection |
Y |
| IP-MAC-Port binding |
Y |
| Queue scheduling algorithms |
SP,Weighted Round Robin (WRR) |
| Multicast support |
Y |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Number of fans |
1 |
| Certification |
CE, FCC, RoHS |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (max) |
173.9 |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Total Power over Ethernet (PoE) budget |
150 |
| Operating temperature (T-T) |
0 - 50 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Width |
294 |
| Depth |
180 |
| Height |
44 |
| Package width |
250 |
| Package depth |
400 |
| Package height |
80 |
| Package weight |
2120 |
| Harmonized System (HS) code |
85176990 |
