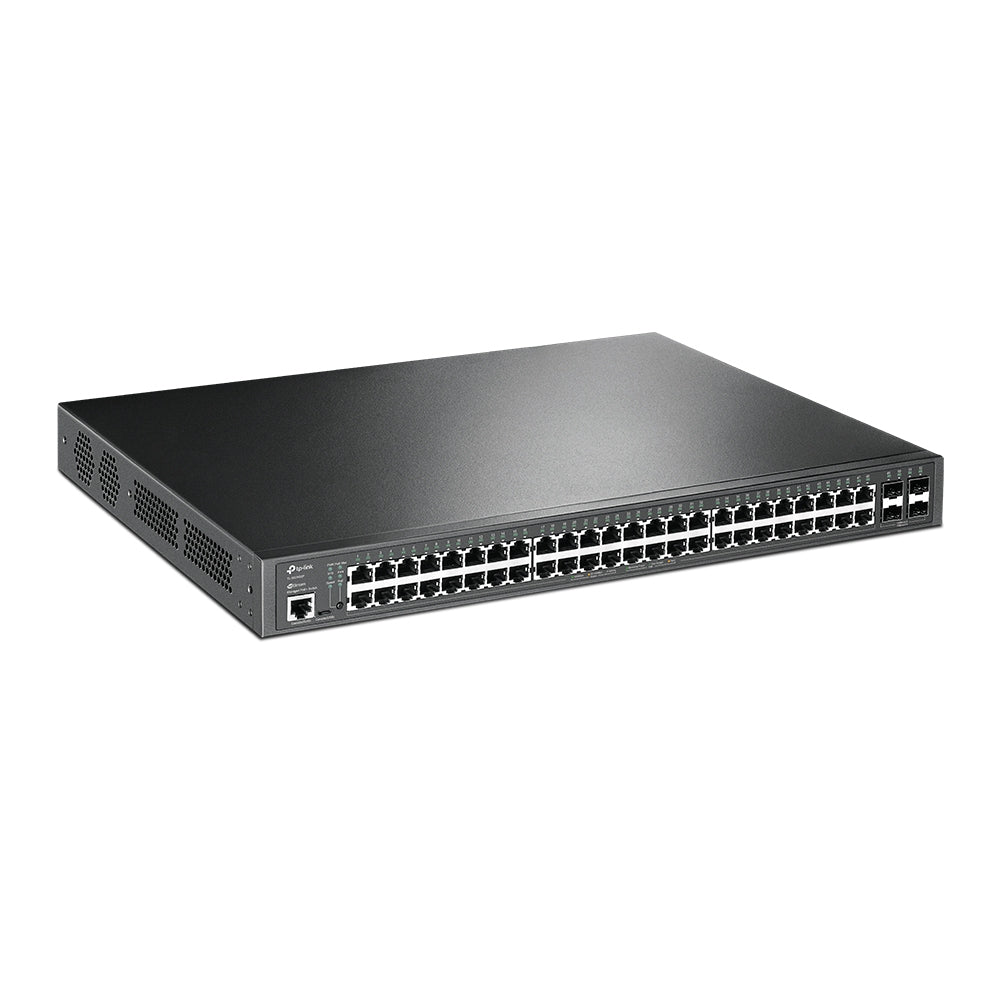

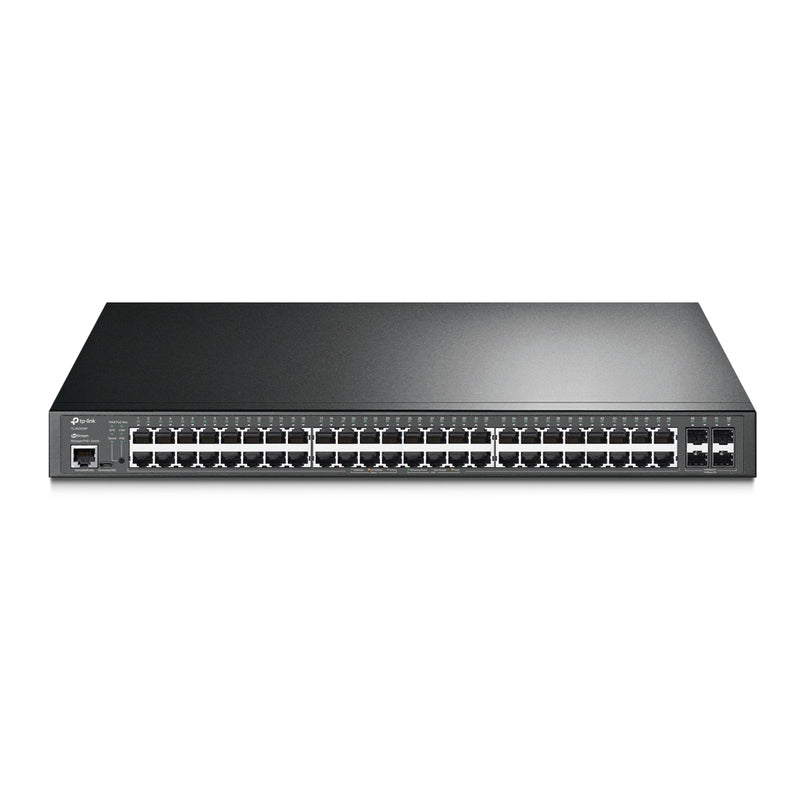

TP-Link JetStream 52-Port Gigabit L2+ Managed Switch with 48-Port PoE+. Switch type: Managed, Switch layer: L2/L3. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 48, Console port: RJ-45/micro-USB. MAC address table: 16000 entries, Switching capacity: 104 Gbit/s. Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.3ad, IEEE 802.3x. Power over Ethernet (PoE). Rack mounting, Form factor: 1U
| Switch type |
Managed |
| Switch layer |
L2/L3 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Cloud-managed |
Y |
| ARP inspection |
Y |
| System event log |
Y |
| MIB support |
Yes |
| Basic switching RJ-45 Ethernet ports quantity |
48 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
48 |
| SFP module slots quantity |
4 |
| Console port |
RJ-45/micro-USB |
| Networking standards |
IEEE 802.1D,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.3ad,IEEE 802.3x |
| 10G support |
N |
| Port mirroring |
Y |
| IP routing |
Y |
| Policy-based routing |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Spanning tree protocol |
Y |
| Head-of-line (HOL) blocking |
Y |
| Ethernet LAN data rates |
10,100,1000 |
| Active link detection |
Y |
| VLAN support |
Y |
| Virtual LAN features |
MAC address-based VLAN,Private VLAN,Protocol-based VLAN,Tagged VLAN,Voice VLAN |
| Number of VLANs |
4000 |
| Switching capacity |
104 |
| Forwarding rate |
77.4 |
| MAC address table |
16000 |
| Store-and-forward |
Y |
| Static route |
Y |
| Number of static routes |
48 |
| Jumbo frames support |
Y |
| Jumbo frames |
9000 |
| Packet buffer memory |
12 |
| DHCP features |
DHCP client,DHCP relay,DHCP server,DHCP snooping,DHCPv6 client,DHCPv6 snooping |
| Access Control List (ACL) |
Y |
| IGMP snooping |
Y |
| SSH/SSL support |
Y |
| Loop protection |
Y |
| BPDU filtering/protection |
Y |
| Authentication |
MAC-based authentication,Port-based authentication |
| Password protection |
Y |
| Multicast support |
Y |
| Management protocols |
SNMPv1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) |
Y |
| Rack mounting |
Y |
| Form factor |
1U |
| Product colour |
Black |
| Number of fans |
3 |
| Power source |
AC |
| Power supply included |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (max) |
485.4 |

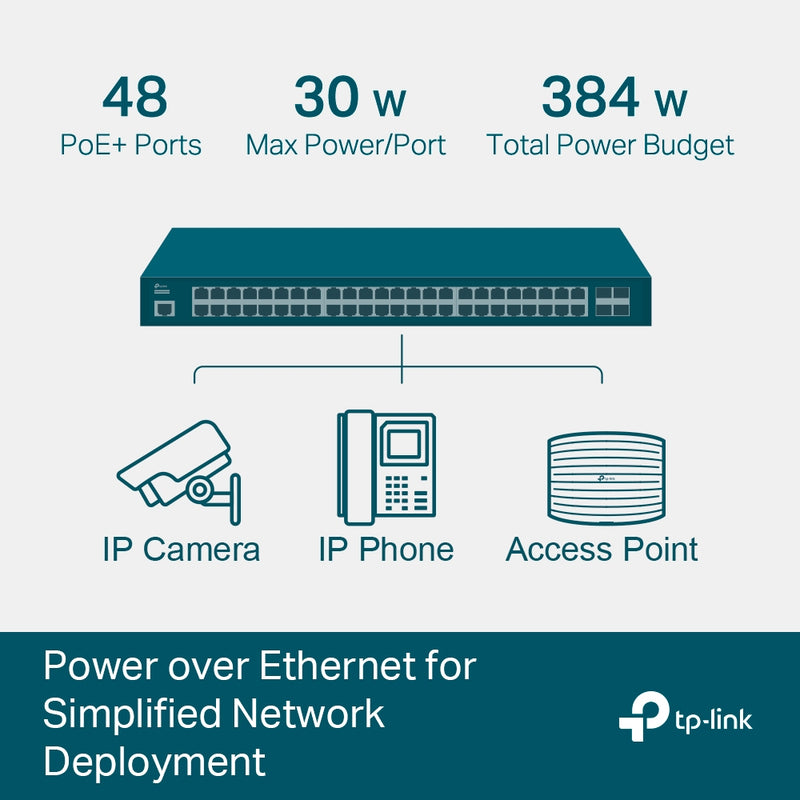

| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
48 |
| Power over Ethernet (PoE) power per port |
30 |
| Total Power over Ethernet (PoE) budget |
384 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Width |
440 |
| Depth |
330 |
| Height |
44 |
| Manual |
Y |
| Package type |
Box |
| Package width |
440 |
| Package depth |
528 |
| Package height |
100 |
| Package weight |
6770 |
| Harmonized System (HS) code |
85176990 |
