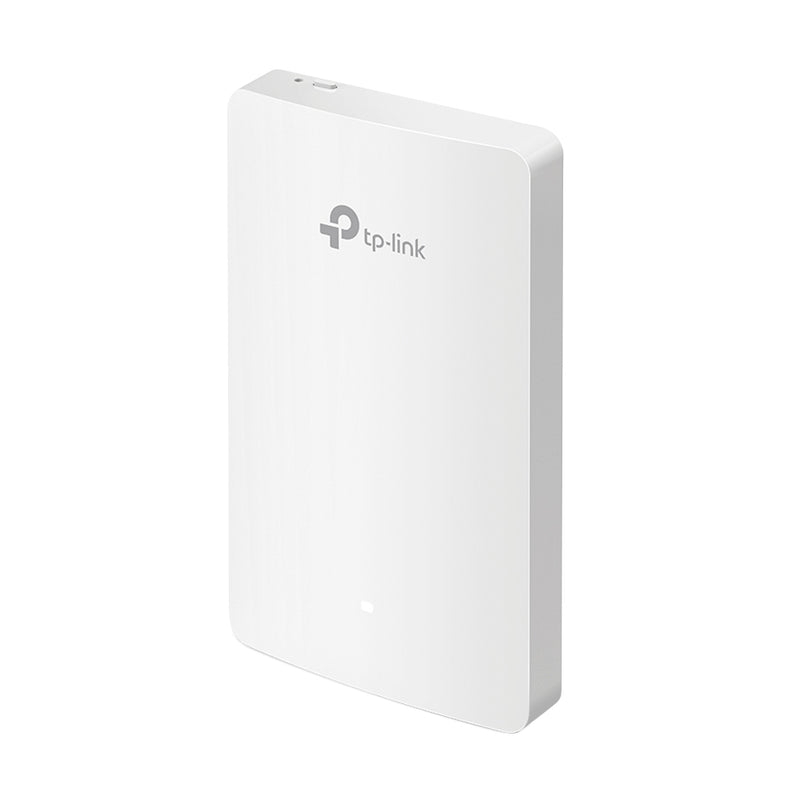

TP-Link Omada AC1200 Wireless MU-MIMO Gigabit Wall Plate Access Point. Maximum data transfer rate: 1167 Mbit/s, Maximum data transfer rate (2.4 GHz): 300 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, 802.1x RADIUS, HTTPS, SNMP, SNMPv3, SSH, WPA,..., Service Set Identifier (SSID) features: Multiple SSIDs. WAN connection: Ethernet (RJ-45). Power over Ethernet (PoE) type supported: Active PoE, Passive PoE, Power consumption (typical): 24.4 W. Placement: Wall, Product colour: White, LED indicators: LAN, Power, Status, WAN, WLAN
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| 6 GHz |
N |
| Maximum data transfer rate |
1167 |
| Maximum data transfer rate (2.4 GHz) |
300 |
| Maximum data transfer rate (5 GHz) |
867 |
| Ethernet LAN data rates |
10,100,1000 |
| Frequency band |
2.4 - 5 |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.1x,IEEE 802.3af,IEEE 802.3at |
| Cabling technology |
10/100/1000Base-T(X) |
| Automatic channel selection |
Y |
| Automatic channel scanning |
Y |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Port-based VLAN,VLAN mapping |
| Rate limiting |
Y |
| Wireless isolation |
Y |
| Band steering |
Y |
| Quality of Service (QoS) support |
Y |
| BeamForming |
Y |
| Transmitting power (CE) |
20 - 23 |
| Transmitting power (FCC) |
21 |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,802.1x RADIUS,HTTPS,SNMP,SNMPv3,SSH,WPA,WPA-Enterprise,WPA-PSK,WPA2,WPA2-Enterprise,WPA2-PSK |
| MAC address filtering |
Y |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Number of SSID supported |
16 |
| Remote Authentication Dial-In User Service (RADIUS) |
Y |
| Access Control List (ACL) |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Web-based management |
Y |
| Syslog |
Y |
| Ethernet LAN (RJ-45) ports |
4 |
| WAN connection |
Ethernet (RJ-45) |

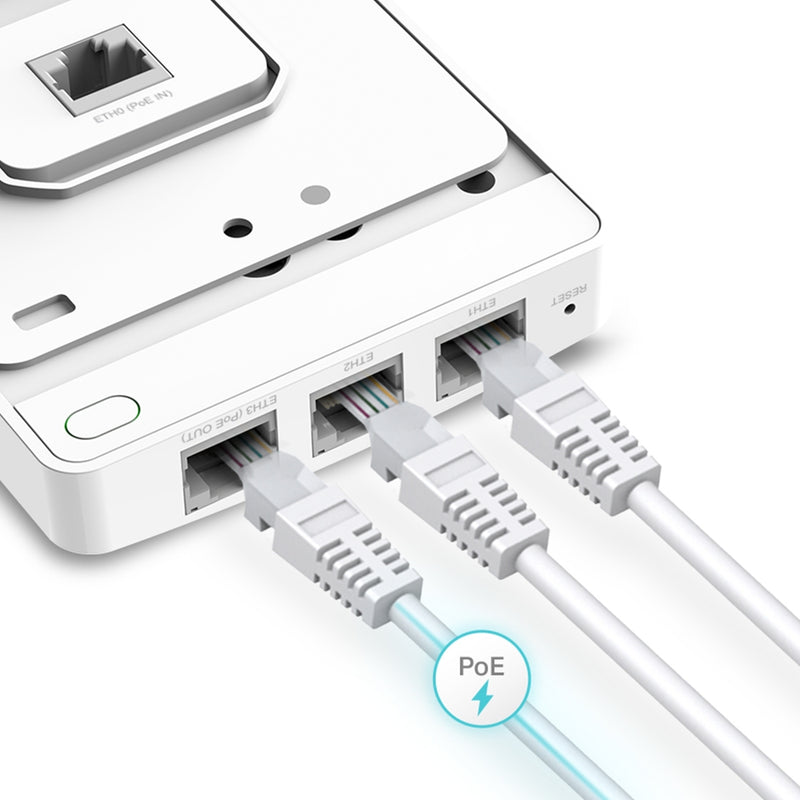

| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) type supported |
Active PoE,Passive PoE |
| Power consumption (typical) |
24.4 |
| Placement |
Wall |
| Product colour |
White |
| Cable lock slot |
Y |
| Reset button |
Y |
| LED indicators |
LAN,Power,Status,WAN,WLAN |
| Antenna type |
Internal |
| Antenna features |
Integrated antenna |
| Antennas quantity |
2 |
| Antenna gain level (max) |
4 |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Width |
143 |
| Depth |
86 |
| Height |
20 |
| Package width |
117 |
| Package depth |
184 |
| Package height |
33 |
| Package weight |
300 |
| Package type |
Box |
| Number of products included |
1 |
| Mounting kit |
Y |
| Quick start guide |
Y |
| Operating relative humidity (H-H) |
10 - 90 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Storage relative humidity (H-H) |
5 - 90 |
| Sustainability compliance |
Y |
| Sustainability certificates |
CE,Federal Communications Commission (FCC),RoHS |
| Harmonized System (HS) code |
85176990 |
