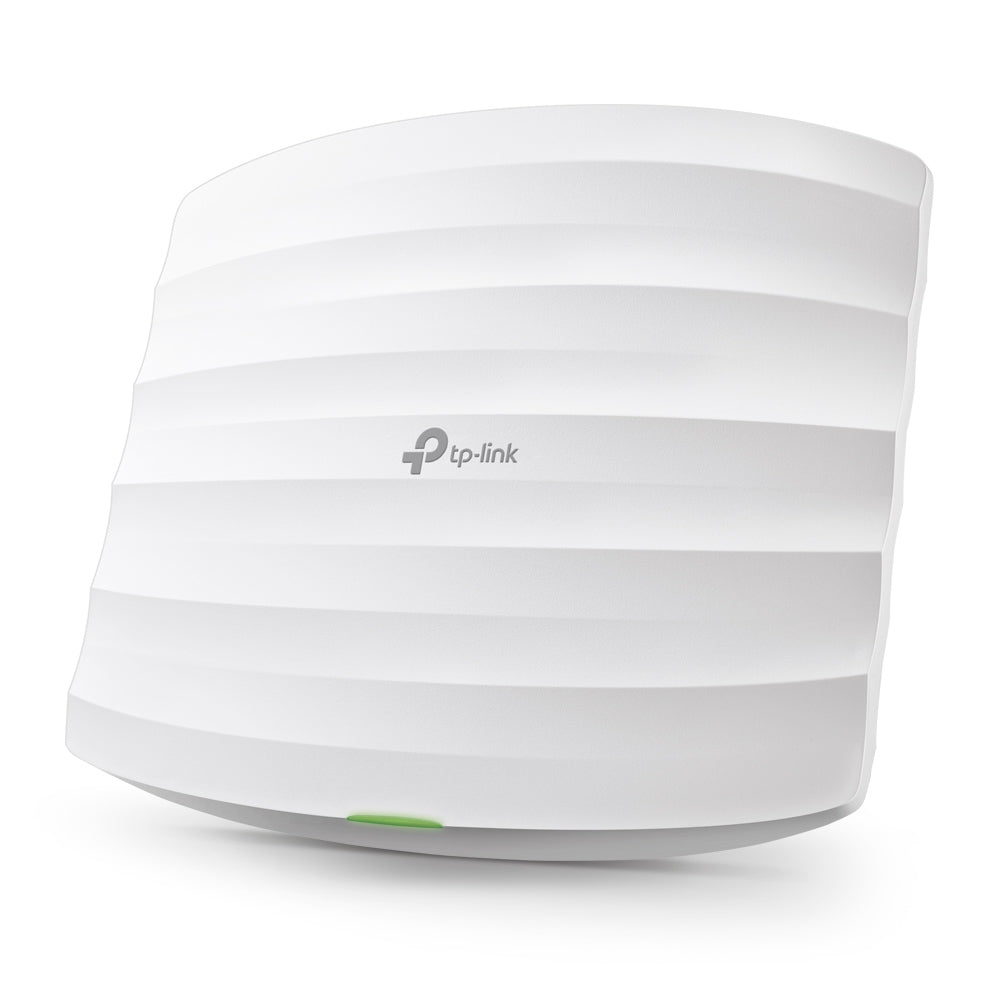

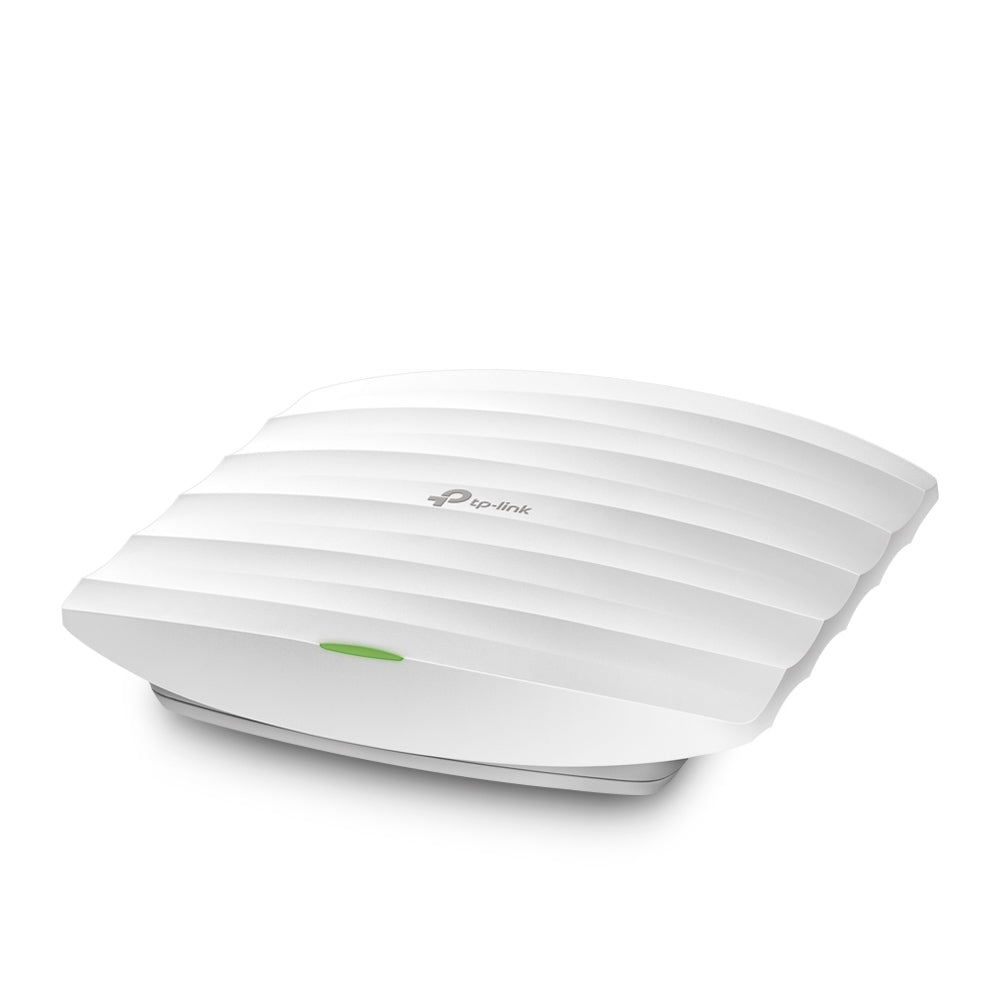

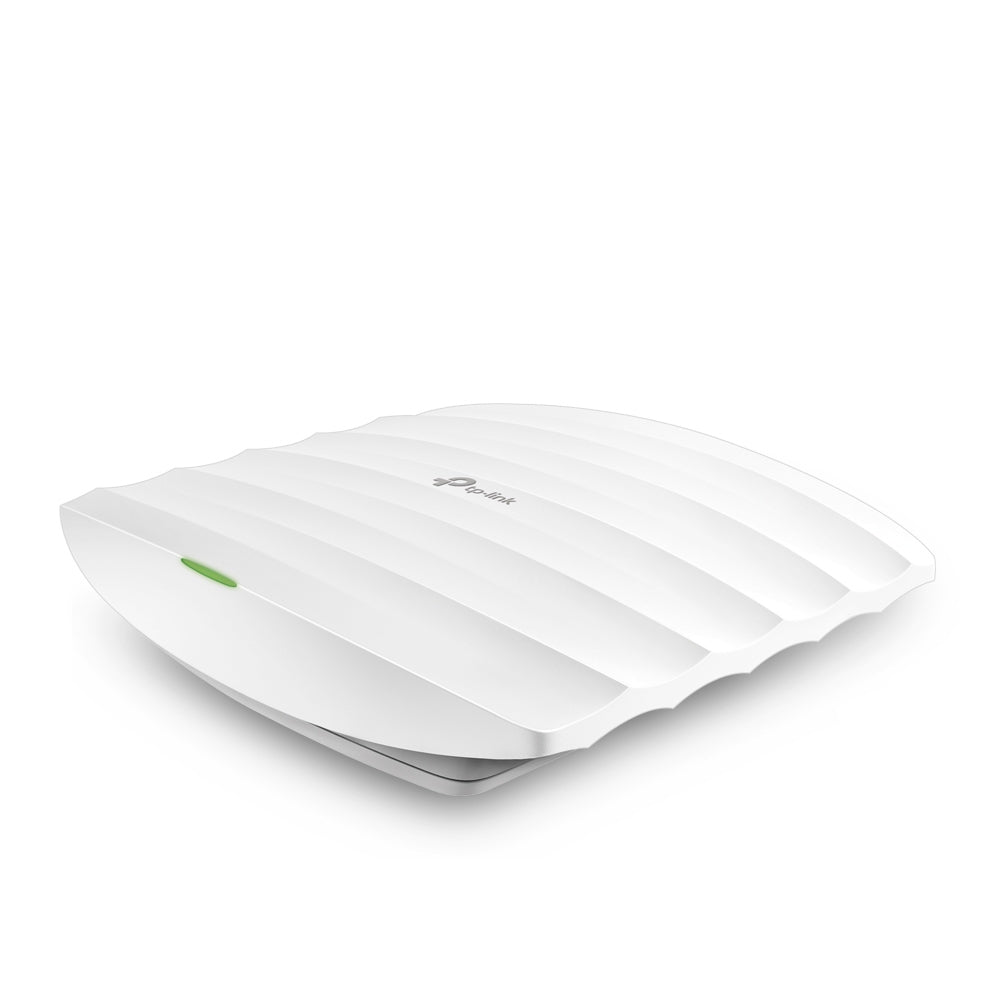

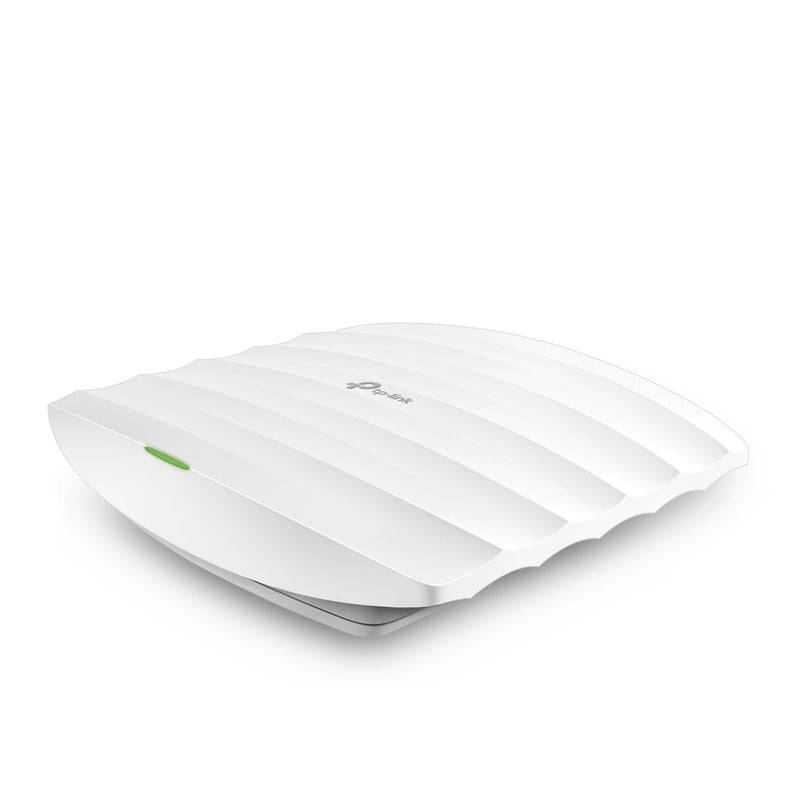

TP-Link Omada EAP225. Maximum data transfer rate: 1350 Mbit/s, Maximum data transfer rate (2.4 GHz): 450 Mbit/s, Maximum data transfer rate (5 GHz): 867 Mbit/s. Security algorithms: 64-bit WEP, 128-bit WEP, 152-bit WEP, SSID, WPA, WPA-PSK, WPA2, WPA2-PSK, Service Set Identifier (SSID) features: Multiple SSIDs. Power over Ethernet (PoE) type supported: Passive PoE, Output voltage: 12 V, Output current: 1.5 A. Placement: Ceiling, Wall, Product colour: White, Cable lock slot type: Kensington. Antenna type: Internal, Antenna direction type: Omni-directional, Antenna features: Integrated antenna
| 2.4 GHz |
Y |
| 5 GHz |
Y |
| 6 GHz |
N |
| Maximum data transfer rate |
1350 |
| Maximum data transfer rate (2.4 GHz) |
450 |
| Maximum data transfer rate (5 GHz) |
867 |
| Ethernet LAN data rates |
10,100,1000 |
| Networking standards |
IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3af |
| Cabling technology |
10/100/1000Base-T(X) |
| MIMO |
Y |
| MIMO type |
Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| VLAN support |
Y |
| Virtual LAN features |
VLAN mapping |
| Rate limiting |
Y |
| Band steering |
Y |
| Airtime Fairness (ATF) |
Y |
| Quality of Service (QoS) support |
Y |
| BeamForming |
Y |
| Transmitting power (CE) |
23 |
| Transmitting power (FCC) |
24 |
| Security algorithms |
64-bit WEP,128-bit WEP,152-bit WEP,SSID,WPA,WPA-PSK,WPA2,WPA2-PSK |
| MAC address filtering |
Y |
| Service Set Identifier (SSID) features |
Multiple SSIDs |
| Number of SSID supported |
16 |
| Access Control List (ACL) |
Y |
| Web-based management |
Y |
| Syslog |
Y |

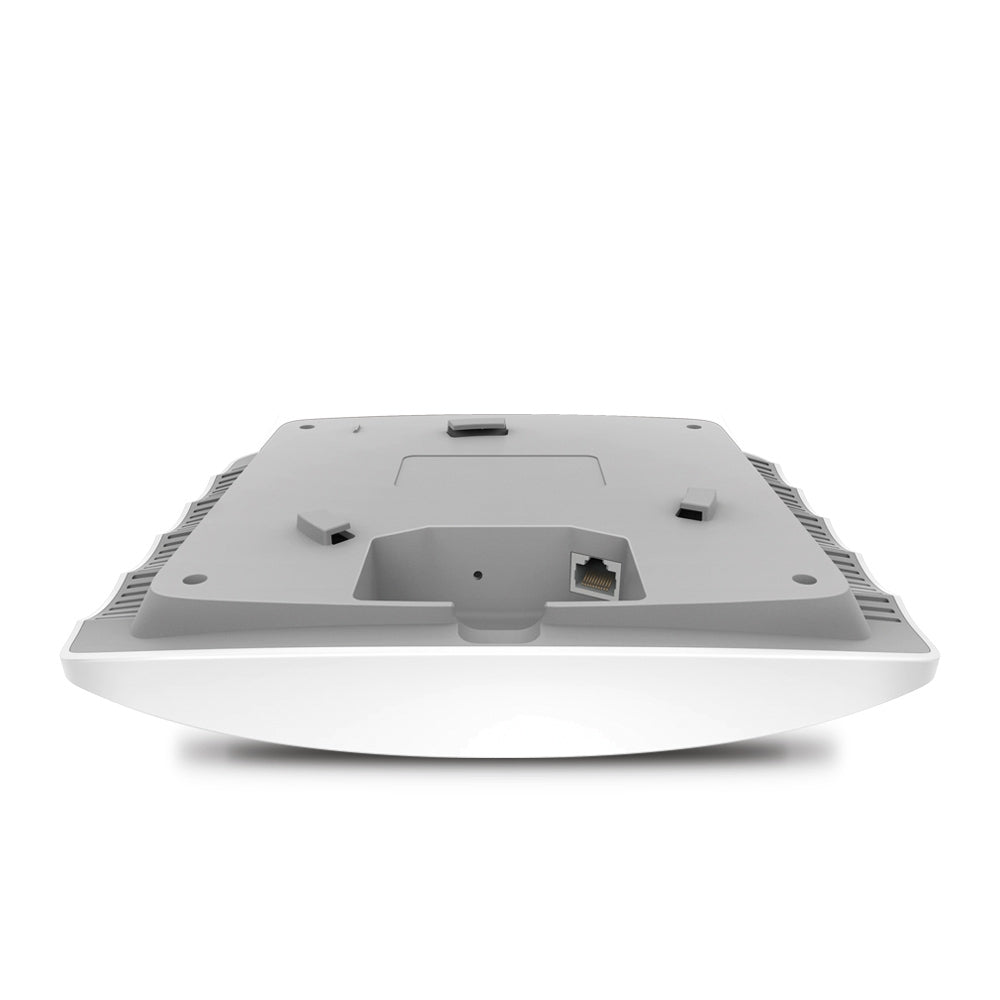

| Ethernet LAN (RJ-45) ports |
1 |
| DC-in jack |
Y |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet (PoE) type supported |
Passive PoE |
| Output voltage |
12 |
| Output current |
1.5 |
| Power consumption (typical) |
10.15 |

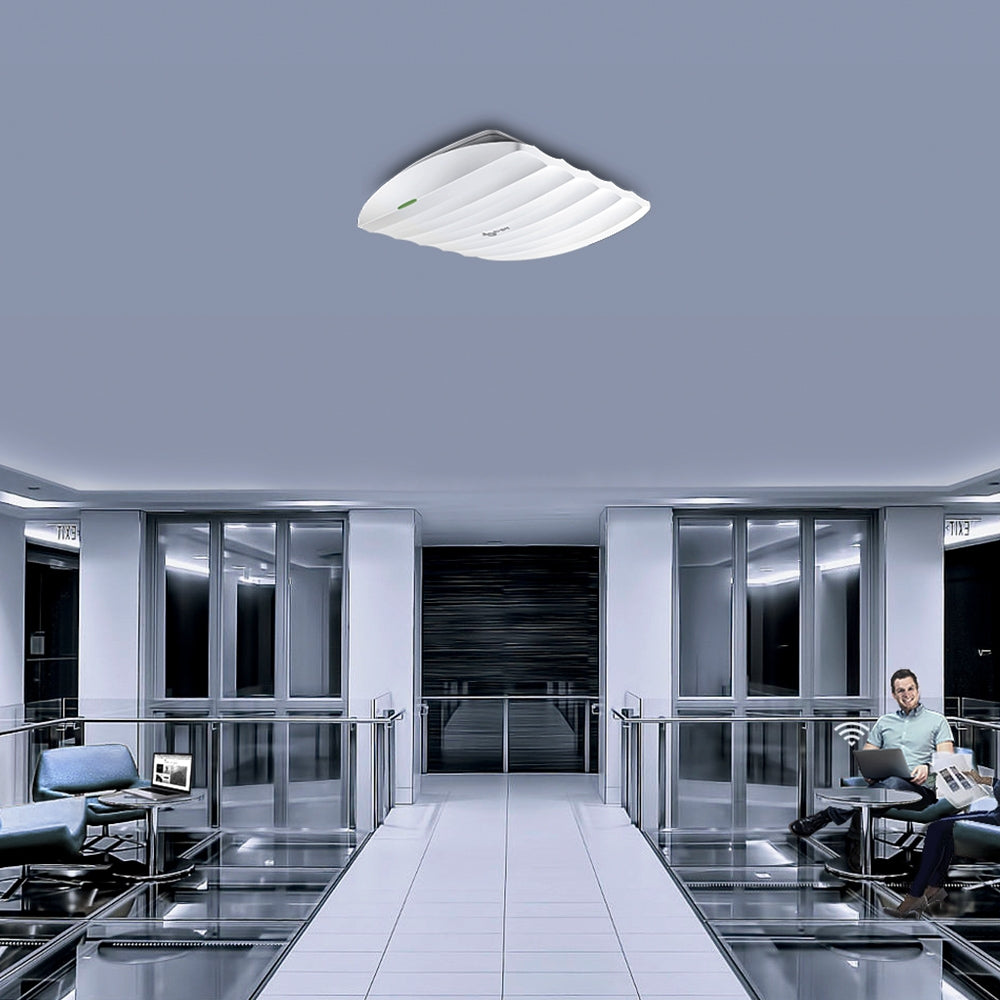

| Placement |
Ceiling,Wall |
| Product colour |
White |
| Cable lock slot |
Y |
| Cable lock slot type |
Kensington |
| On/off switch |
Y |
| Reset button |
Y |
| LED indicators |
Power,WLAN |
| Antenna type |
Internal |
| Antenna direction type |
Omni-directional |
| Antenna features |
Integrated antenna |
| Antennas quantity |
5 |
| Antenna gain level (max) |
5 |
| Compatible operating systems |
Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| SIM card slot |
N |
| Width |
205.5 |
| Depth |
181.5 |
| Height |
37.1 |
| Package width |
228 |
| Package depth |
340 |
| Package height |
65 |
| Package weight |
910 |
| Package type |
Box |
| Number of products included |
1 |

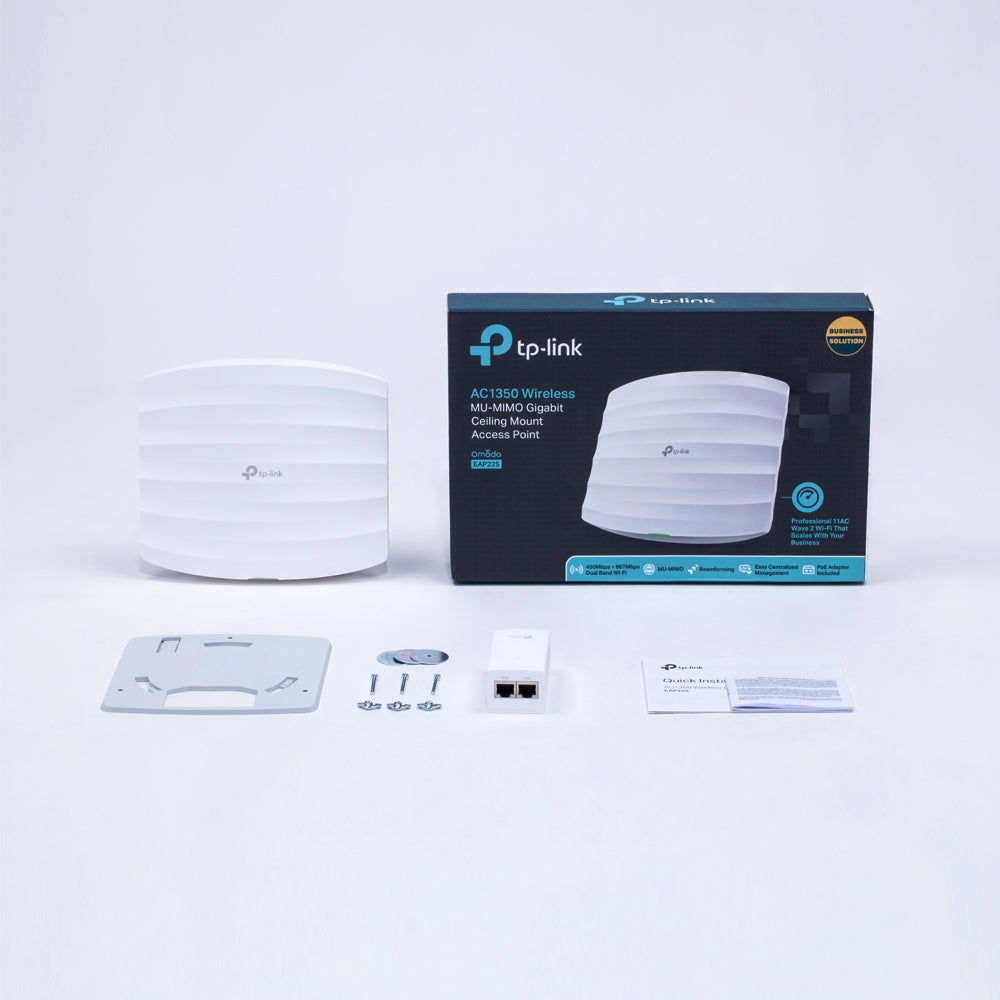

| AC adapter included |
Y |
| PoE adapter included |
Y |
| Mounting kit |
Y |
| Quick start guide |
Y |
| Operating relative humidity (H-H) |
10 - 90 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Storage relative humidity (H-H) |
5 - 90 |
| Sustainability compliance |
Y |
| Sustainability certificates |
CE,Federal Communications Commission (FCC),RoHS |
| Harmonized System (HS) code |
85176990 |
