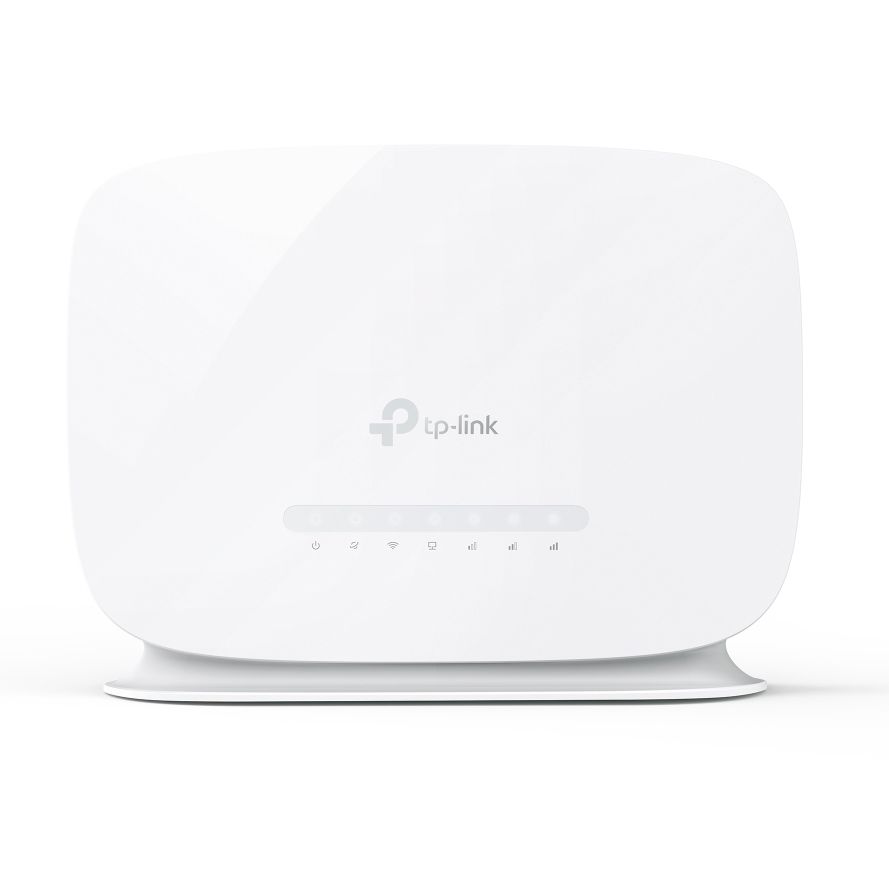

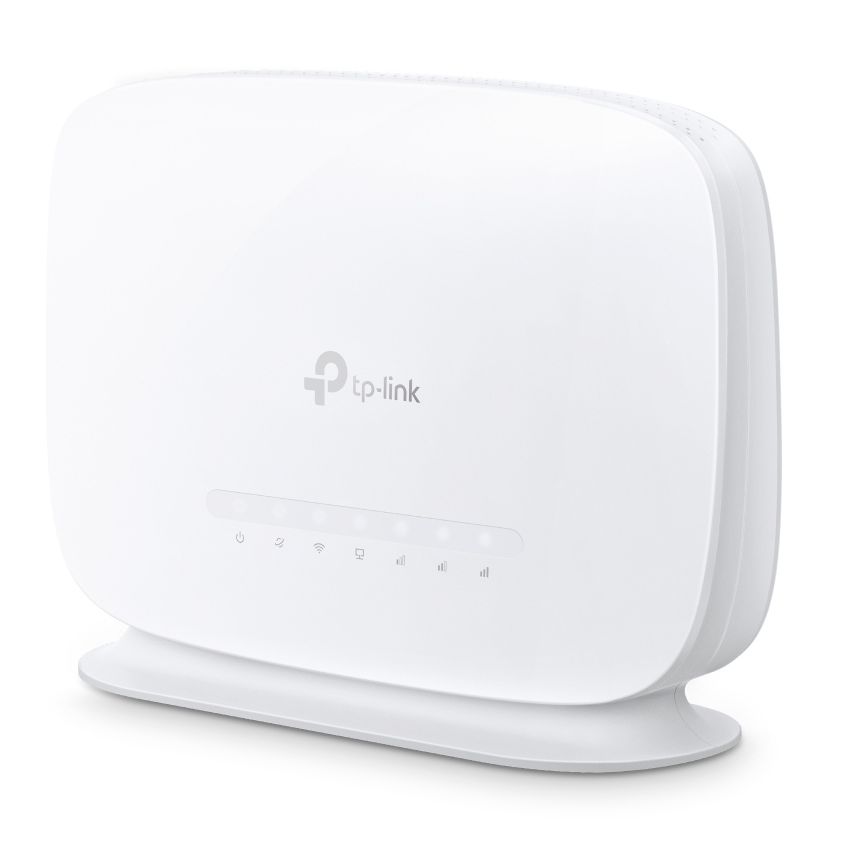

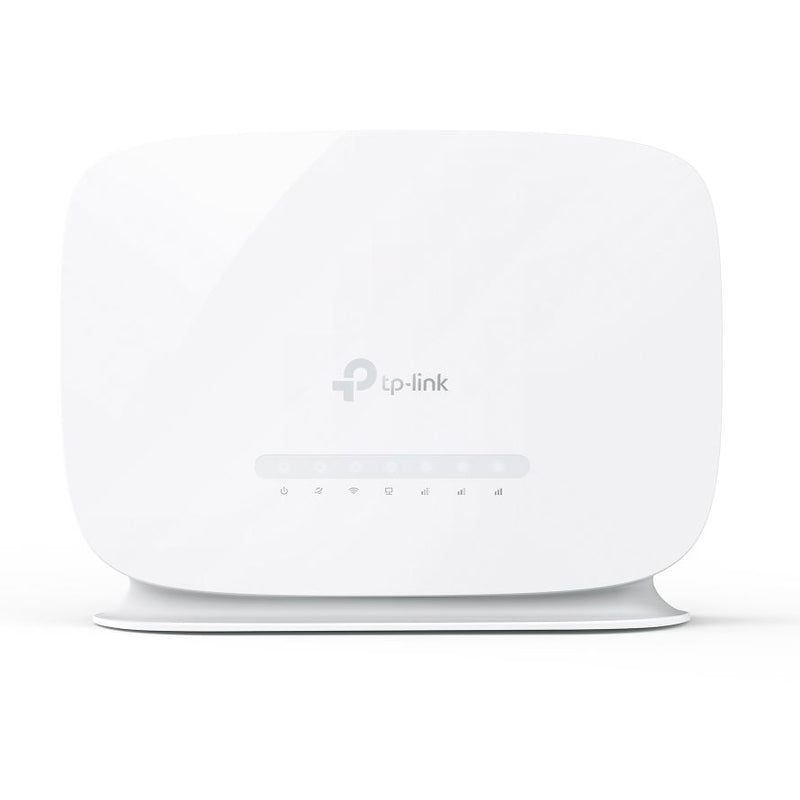

A 4G+ Router for Flexible Connections
AC1200 Dual Band Wi-Fi LTE Router

Fast 4G+ Connection Where You Need It
Simple, just one SIM card
Traditional broadband or cable installation is expensive and time-consuming for your vacation home, farm, or suburban warehouse. Long contract periods also create headaches for short-rentals, pop-up venues, and temporary shops to access the internet. Archer MR505 ensures a comfortable and no-block network installation. Plug in your SIM card and enjoy high-speed internet!

Superfast 4G+ LTE Speed for Reliable Wi-Fi

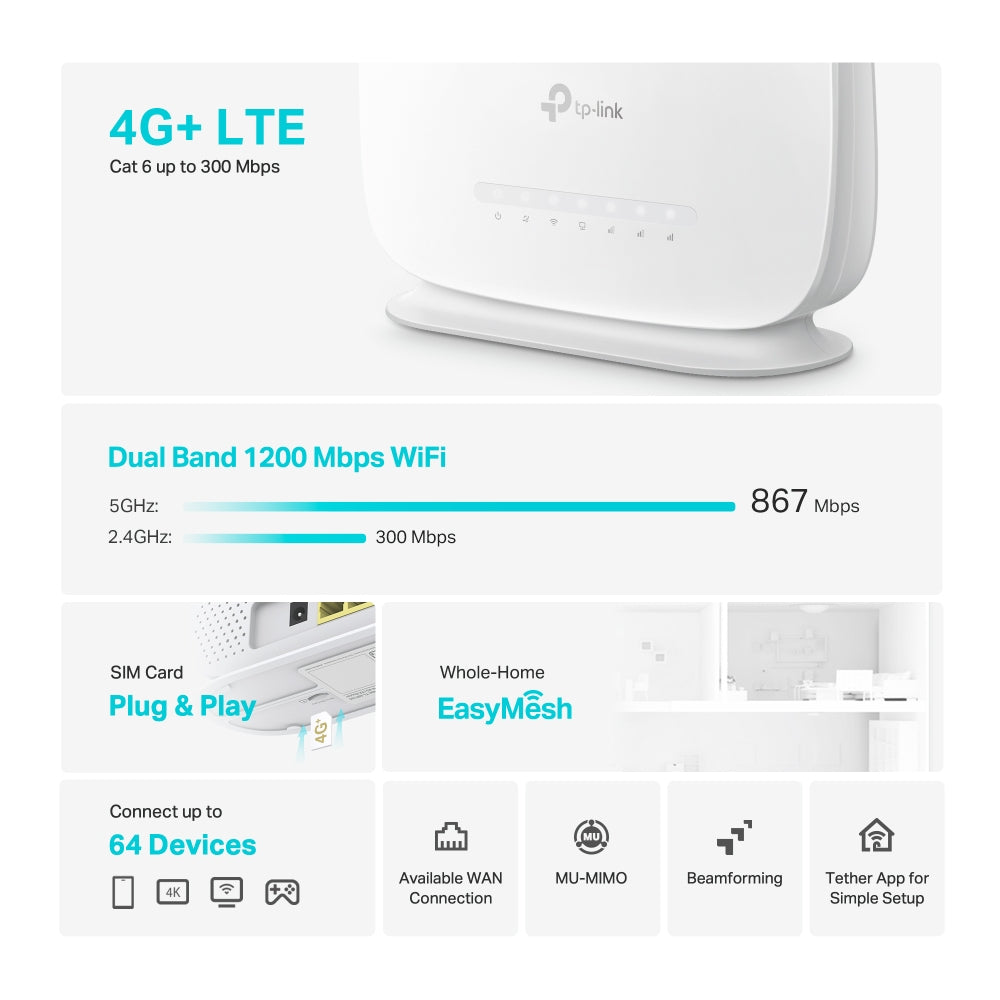

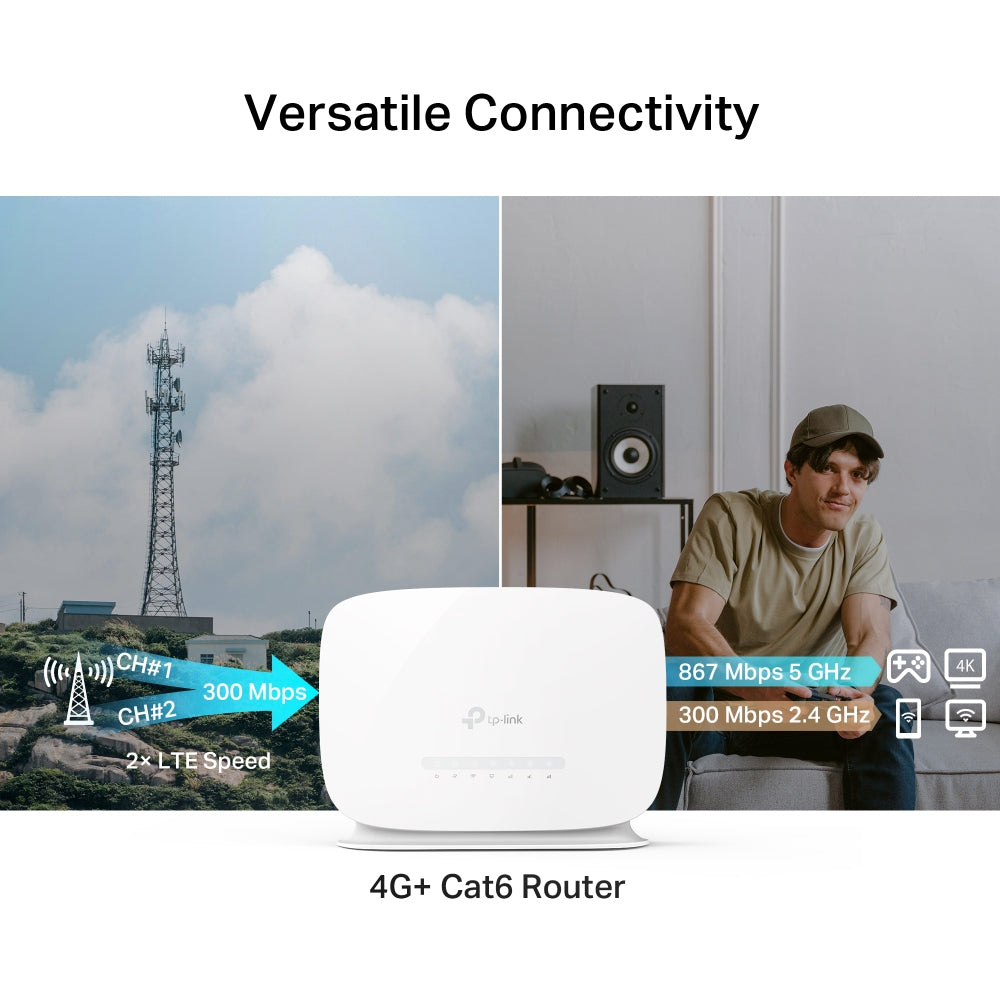

Thanks to 4G+ Carrier Aggregation technology which combines different carrier signals for even faster bandwidth, MR505 boosts 300 Mbps download speeds fulfills your devices’ needs. It can also share a dual-band Wi-Fi network with speeds of 867 Mbps on 5 GHz for bandwidth-intensive tasks like HD streaming and gaming and 300 Mbps on 2.4 GHz for internet surfing, email, and social media.

Ideal for Small Business
with 64 Devices Connection Simultaneously
Easily share a 3G/4G connection with up to 64 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers.

Powerful CPU
for Stable Data Processing

MU-MIMO
Serves Multiple Devices at once

Beamforming
Concentrate Signal Strength

Amplifier with External Antennas
Boost Signal Coverage

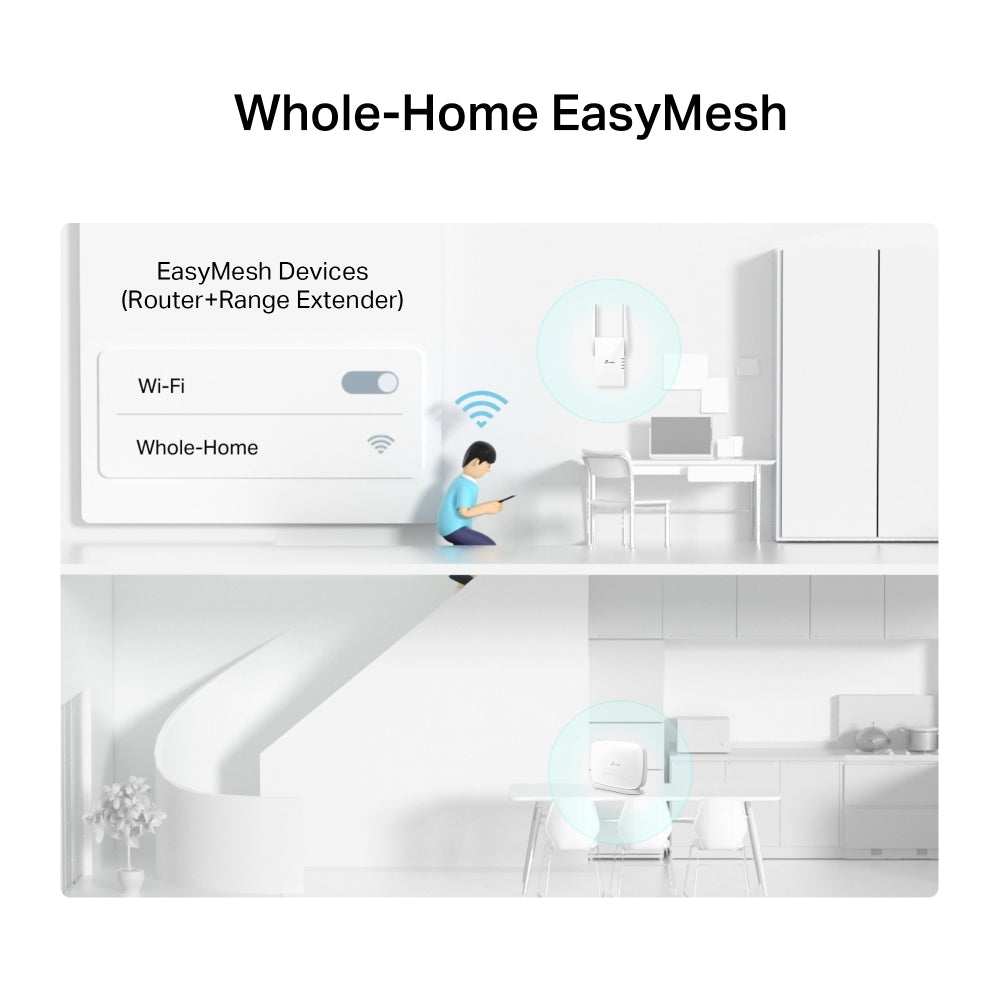

Flexibly Create Whole Home Mesh WiFi
If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.

WiFi Dead Zone Killer
Eliminate weak signal areas with WiFi coverage for the whole house

Smart Roaming
Uninterrupted streaming when moving around your home

One WiFi Name
No more switching WiFi network names

Available WAN Connection Backup

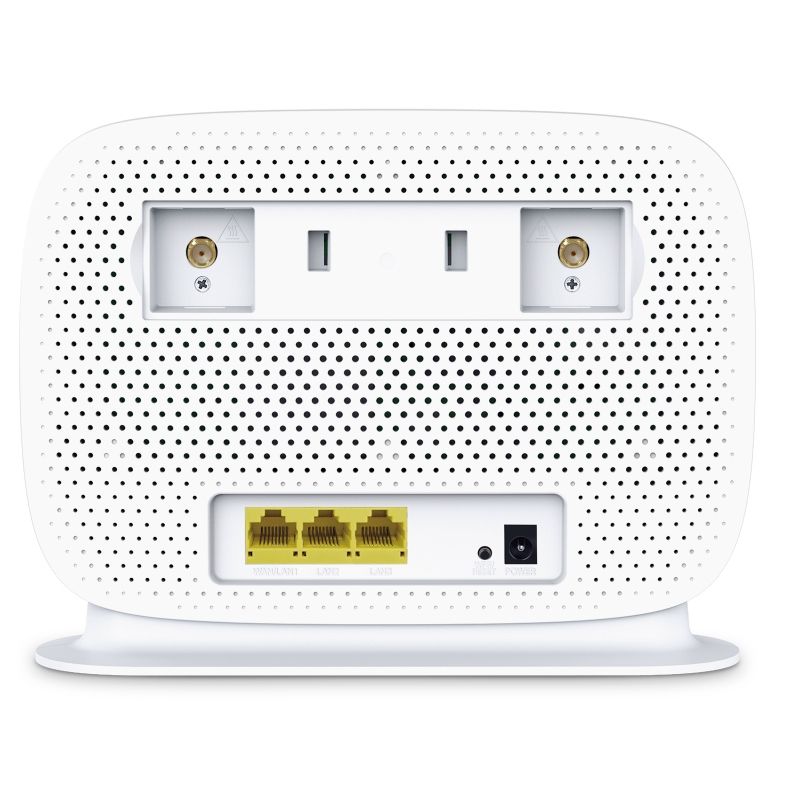

With a fully functional WAN/LAN port, Archer MR505 can work as a router that is compatible with cable, fiber, and DSL modems, or provide internet for wired devices. The reliable access is for up to 64 devices Simultaneously.

Easy Setup and Use
Set up the Archer MR505 in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Ethernet WAN	Yes
SIM card slot	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
WLAN data transfer rate (max)	1200 Mbit/s
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
WLAN data transfer rate (first band)	300 Mbit/s
WLAN data transfer rate (second band)	867 Mbit/s
Ethernet LAN	Yes
Ethernet LAN interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Dynamic DNS (DDNS)	Yes
Static route	Yes
Number of guest networks (2.4 GHz)	1
Number of guest networks (5 GHz)	1
VPN server	Y
Mobile network generation	4G
3G standards	DC-HSPA+, HSPA+, UMTS
4G standard	LTE-TDD & LTE-FDD
4G bands supported	700,800,850,900,1800,2100,2300,2500,2600 MHz
3G bands supported	850,900,2100 MHz
Ethernet LAN (RJ-45) ports	3
USB port	No
DC-in jack	Yes
Security algorithms	64-bit WEP, 128-bit WEP, WPA, WPA3
Parental control	Yes
DHCP client	Yes
DHCP server	Yes
Product colour	White
Indication light	Yes
Product type	Desktop/pole router
AC adapter included	Yes
Quick start guide	Yes
Antenna design	Internal
Antennas quantity	2
Detachable antenna(s)	Yes
Power source type	DC
Output voltage	12 V
Output current	1.5 A
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%
Width	212 mm
Depth	157.5 mm
Height	57 mm
Package type	Box
