Vörulýsing
Unprecedented Thin Design with 11mm

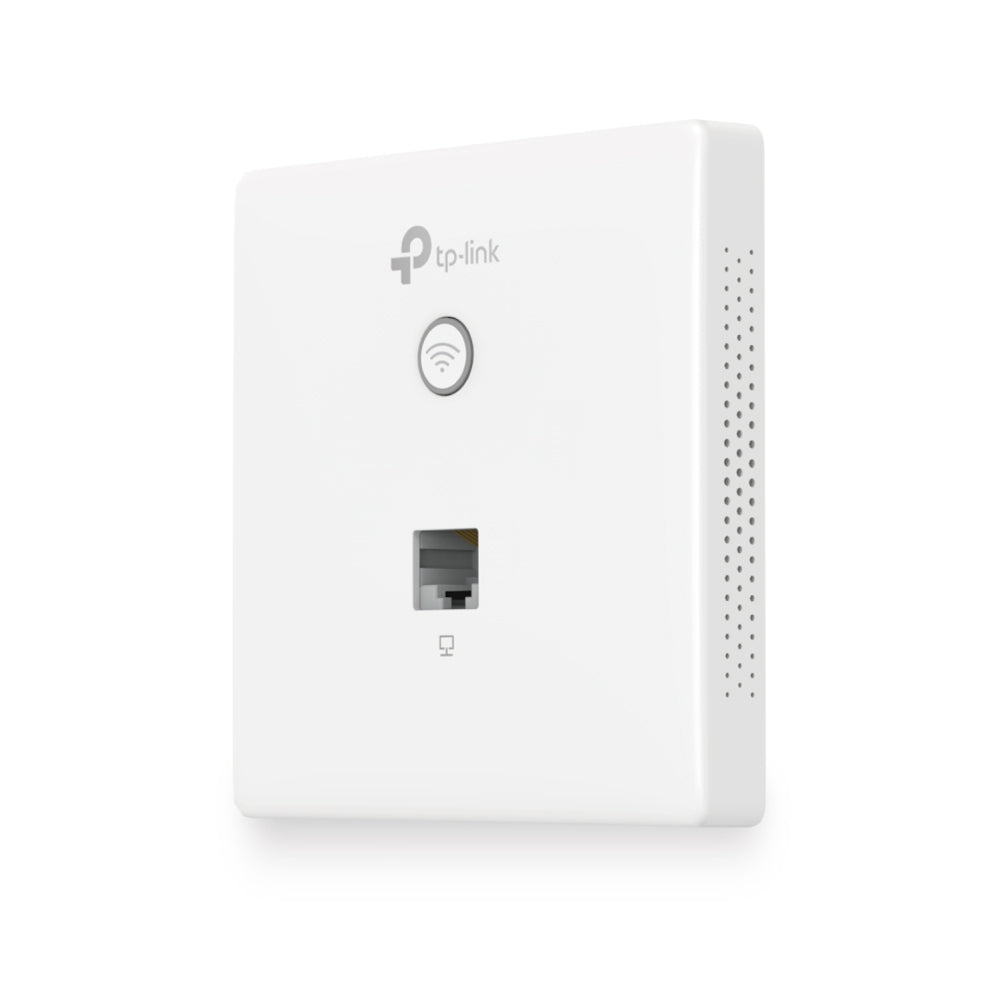

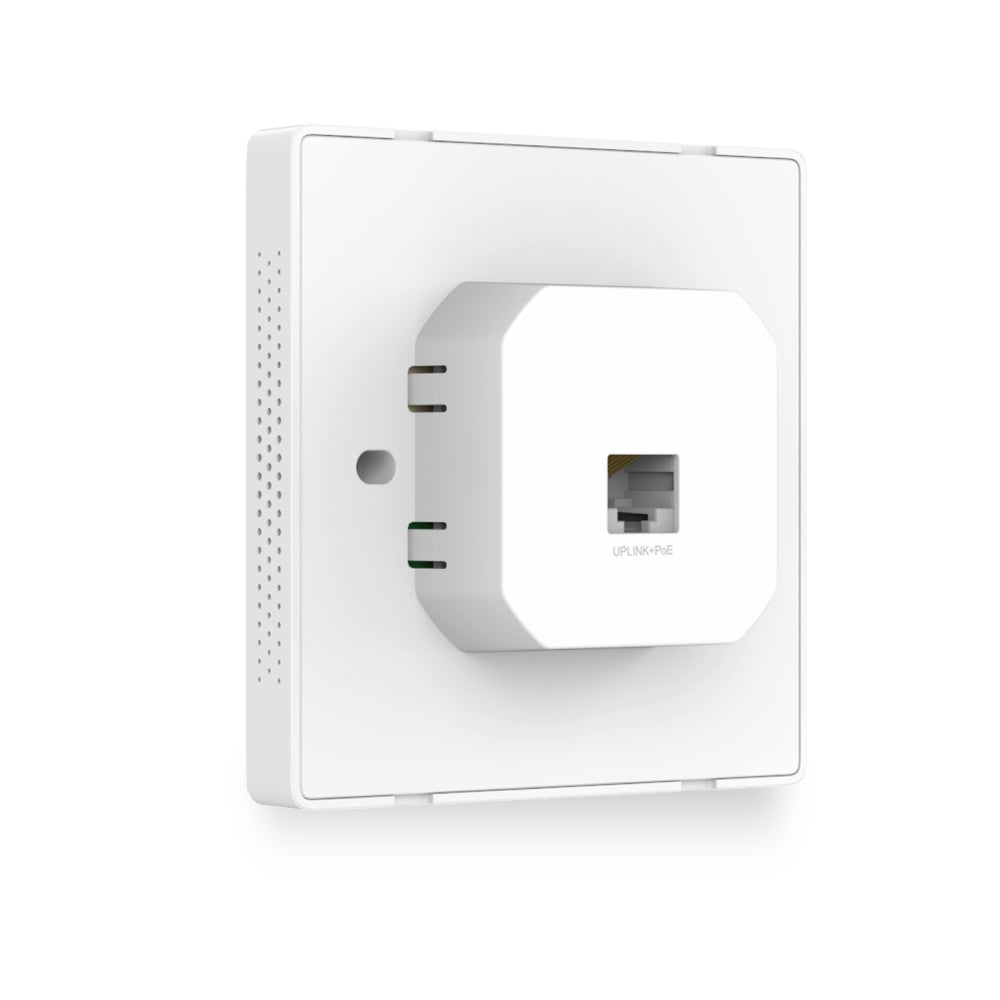

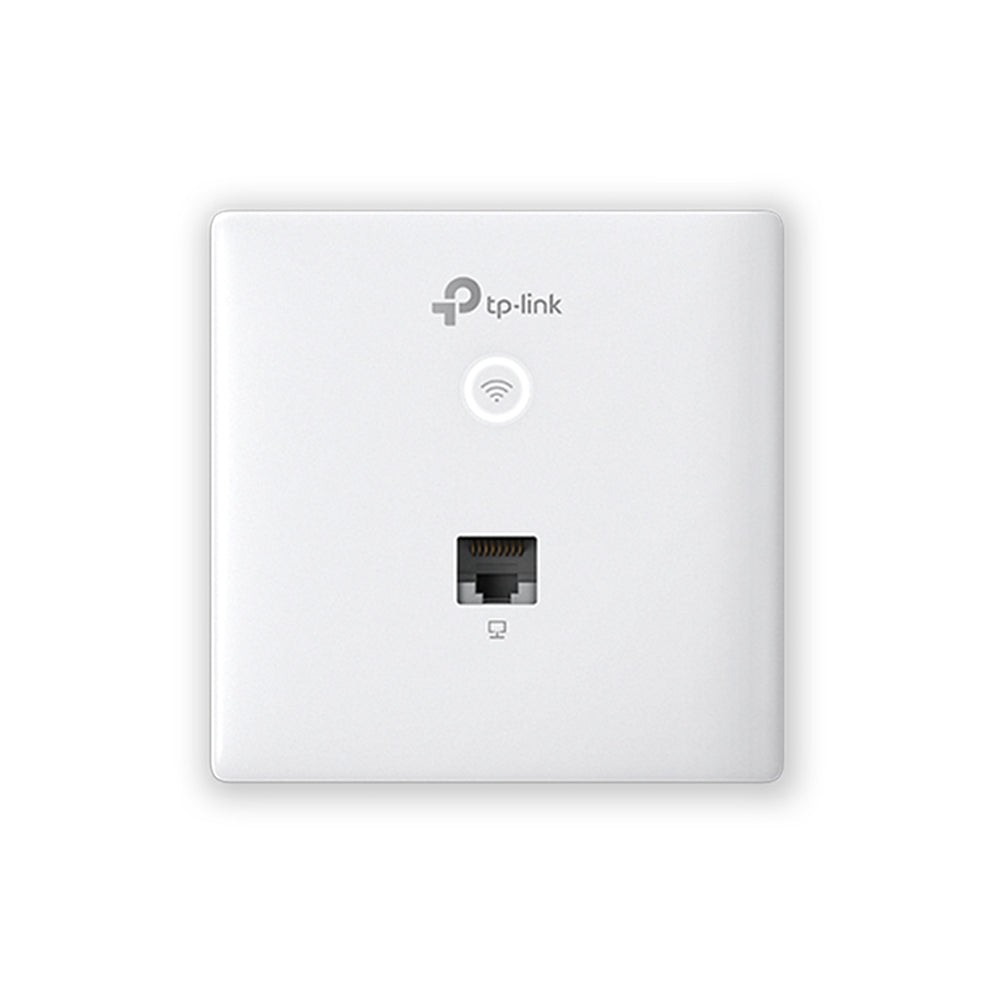

Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
Omada EAP230-Wall
AC Access Point
Private Connection for Every Room.
EAP230-Wall is designed to meet every network need in environments with numerous separated rooms, like hotels, offices, and dormitories. A device in each room ensures an exclusive, high-speed Wi-Fi connection for every user.
MU-MIMO + Dual-Band: Faster Connection for More Devices
802.11ac wave 2 technology allows multiple users to access the internet at the same time. Speeds up to 1200 Mbps and 2.4 GHz and 5 GHz wireless bands deliver simultaneous high-speed internet access to various devices.
Seamlessly Blends with any Décor
The same size and shape as a light switch or power outlet faceplate to fit in perfectly in any room.
High-Speed Gigabit Port
Equipped with a Gigabit port to deliver the fastest possible wired transmission.
Effortless Deployment with Power over Ethernet
802.3af/802.3at PoE support means there’s no need for extra wiring. Plug in existing Ethernet cables to transmit both power and data to your APs.
Quick, Simple Installation
1.Detach and remove the faceplate of the junction box.
2.Plug an Ethernet cable in to the port.
3.Secure the Access Point to the wall using the provided screws.
4.Press the faceplate back into position.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smart phone or tablet.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | No |
| Maximum data transfer rate | 1167 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Maximum data transfer rate (5 GHz) | 867 Mbit/s |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at |
| Cabling technology | 10/100/1000Base-T(X) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Multimedia (WMM)/(WME) | Yes |
| VLAN support | Yes |
| Virtual LAN features | Port-based VLAN, VLAN mapping |
| Rate limiting | Yes |
| Band steering | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Transmitting power (CE) | 20 - 23 dBm |
| Security algorithms | 64-bit WEP, 128-bit WEP, 152-bit WEP, SNMP, SNMPv2, WPA, WPA-PSK, WPA2-Enterprise, WPA2-PSK |
| MAC address filtering | Yes |
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Access Control List (ACL) | Yes |
| Secure File Transfer Protocol (SFTP) using SSH v2 | Yes |
| Web-based management | Yes |
| Syslog | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| WAN connection | Ethernet (RJ-45) |
| Power over Ethernet (PoE) | Yes |
| Power consumption (typical) | 9 W |
| Power consumption (max) | 25.5 W |
| Placement | Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Operation |
| Antenna type | Internal |
| Antenna features | Integrated antenna |
| Antennas quantity | 2 |
| Antenna gain level (max) | 3.6 dBi |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10 |
| Compliance certificates | CE, RoHS |
| Width | 86.8 mm |
| Depth | 86.8 mm |
| Height | 30.2 mm |
| Package width | 118 mm |
| Package depth | 130 mm |
| Package height | 47 mm |
| Package weight | 210 g |
| Quantity per pack | 2 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability compliance | Yes |
| Harmonized System (HS) code | 85176990 |
