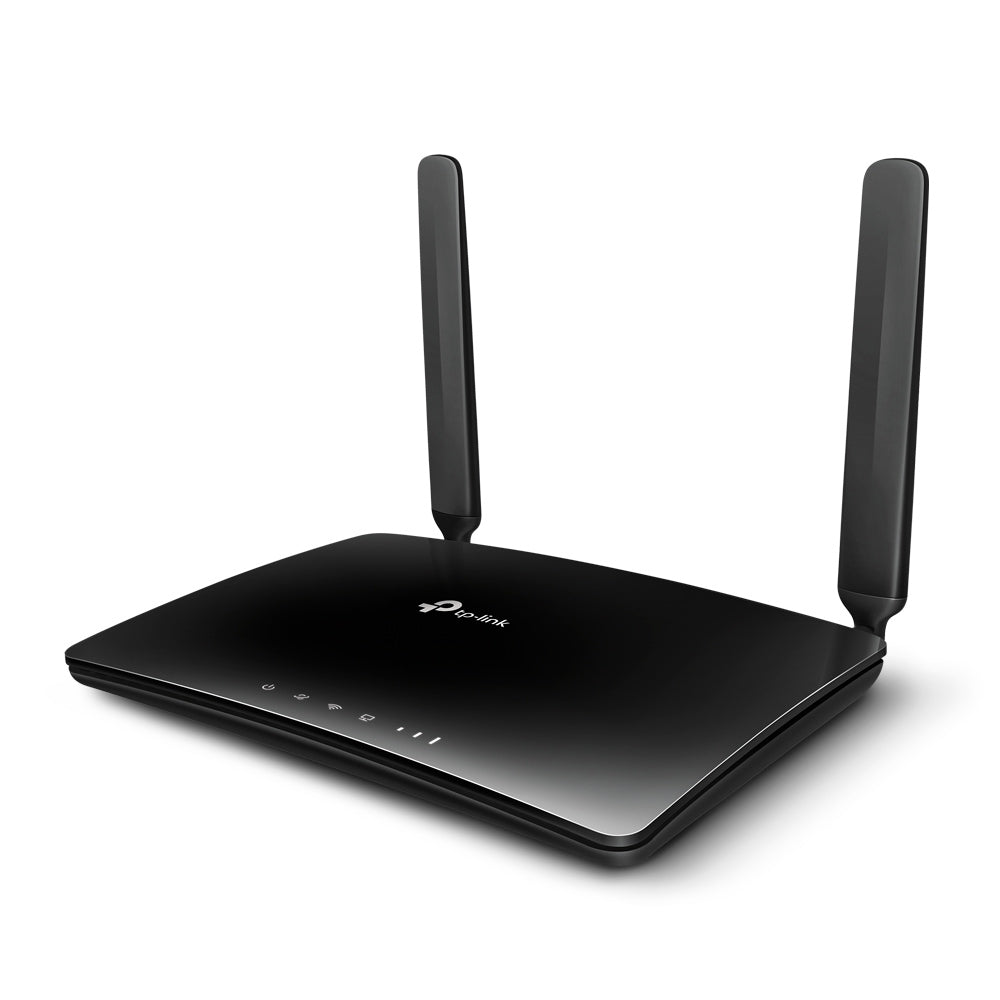

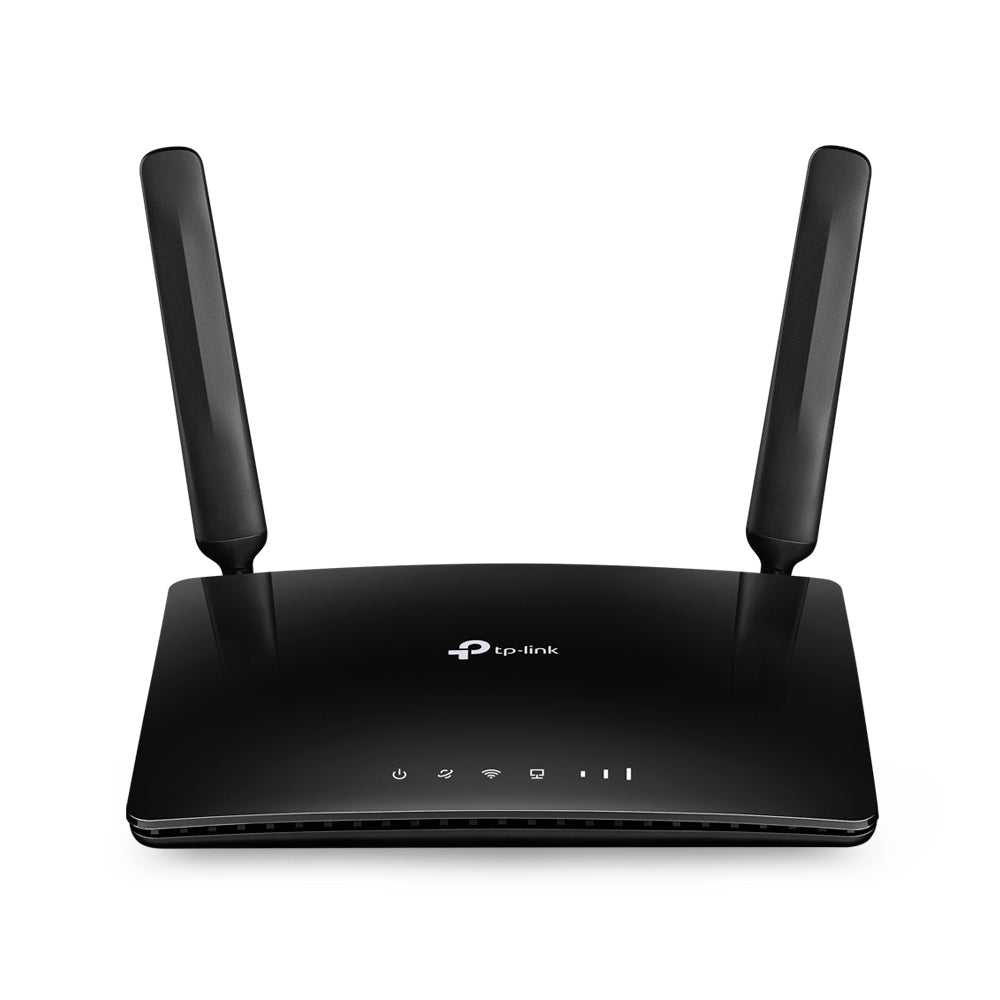

Superfast 4G LTE Speed for Reliable Wi-Fi
The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.
Design for Maximum Network Coverage
Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.
Plug and Play with a Micro SIM Card
Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!

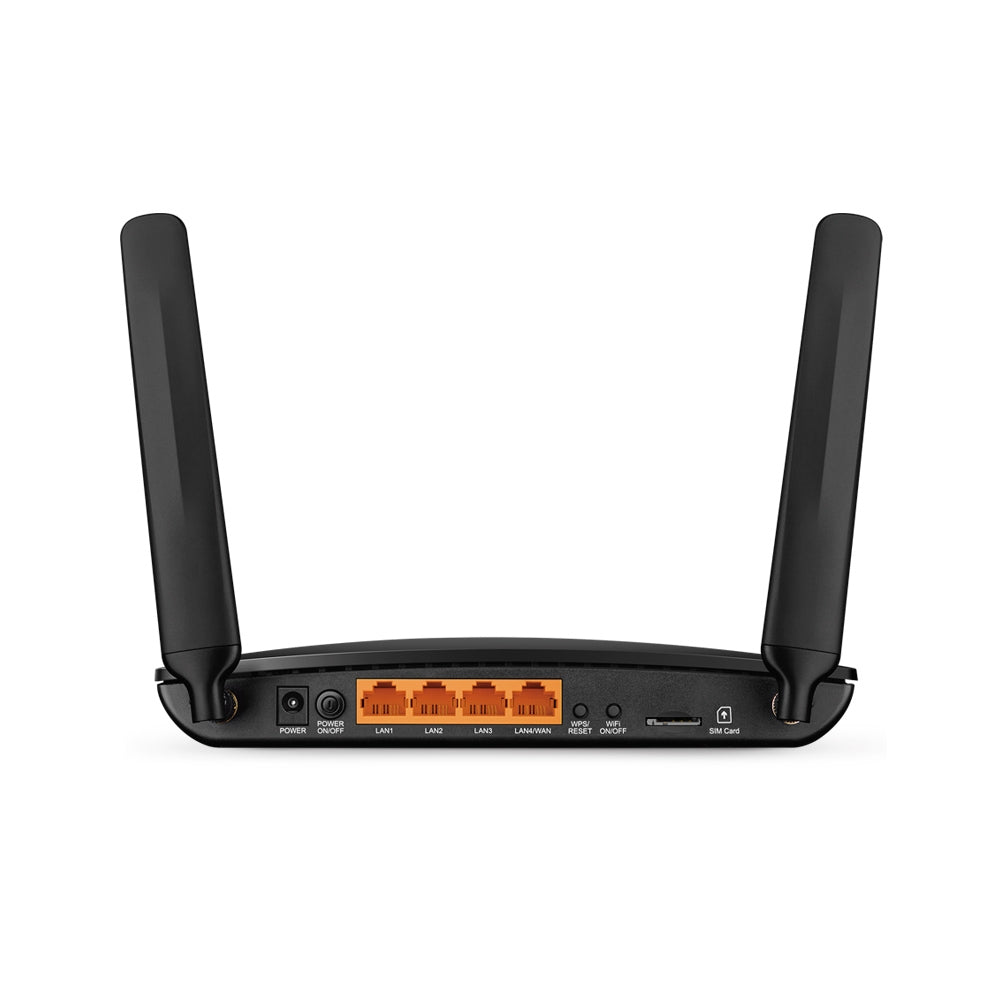

Available WAN Connection Backup
With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.
The TL-MR150 uses 4G LTE technology to achieve speeds of up to 150Mbps download and 50Mbps upload. It also shares a Wi-Fi network with maximum speed of 300Mbps on 2.4GHz for gaming, streaming, and more.
Design for Maximum Network Coverage
Advanced LTE antennas make efficient and stable connections to every device. Power Amplifier and Low Noise Amplifier boost sending and receiving capabilities, creating a wide-coverage Wi-Fi network for your home.
Plug and Play with a Micro SIM Card
Simply insert your 3G/4G Micro SIM card into the built-in slot, turn on the TL-MR150 and start surfing!
Available WAN Connection Backup
With a fully functional WAN/LAN port, TL-MR150 can work as a router which is compatible with cable, fiber, and DSL modems.
| Ethernet WAN | Yes |
| DSL WAN | Yes |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| WAN connection type | RJ-45 |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) | 300 Mbit/s |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Dynamic DNS (DDNS) | Yes |
| VPN Passthrough | Yes |
| VPN support | PPTP, L2TP, IPSec |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) | 20 dBmW |
| Receiver sensitivity | 11g 54M: -74dBm 11n HT20: -71dBm 11n HT40: -67dBm |
| Mobile network generation | 4G |
| 3G | Yes |
| 4G | Yes |
| 3G standards | DC-HSPA+, HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| UMTS bands supported | 900,2100 MHz |
| 4G bands supported | 800,900,1800,1900,2100,2300,2500,2600 MHz |
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | No |
| Memory card slot(s) | No |
| DC-in jack | Yes |
| Quality of Service (QoS) support | Yes |
| Reset button | Yes |
| WPS push button | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK |
| Firewall | Yes |
| Guest access | Yes |
| Access Control List (ACL) | Yes |
| Stateful Packet Inspection (SPI) | Yes |
| DoS attack prevention | Yes |
| MAC address filtering | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| DHCP client | Yes |
| DHCP server | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Supported network protocols | IPv4, IPv6 |
| Product colour | Black |
| On/off switch | Yes |
| Product type | Tabletop router |
| Certification | CE, RoHS |
| Cables included | LAN (RJ-45) |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Antenna design | External |
| Antenna connector type | N-type |
| Antennas quantity | 2 |
| Power source type | DC |
| Output voltage | 9 V |
| Output current | 0.85 A |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Browser supported | Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported | Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Package type | Box |
