| Switch type |
Unmanaged |

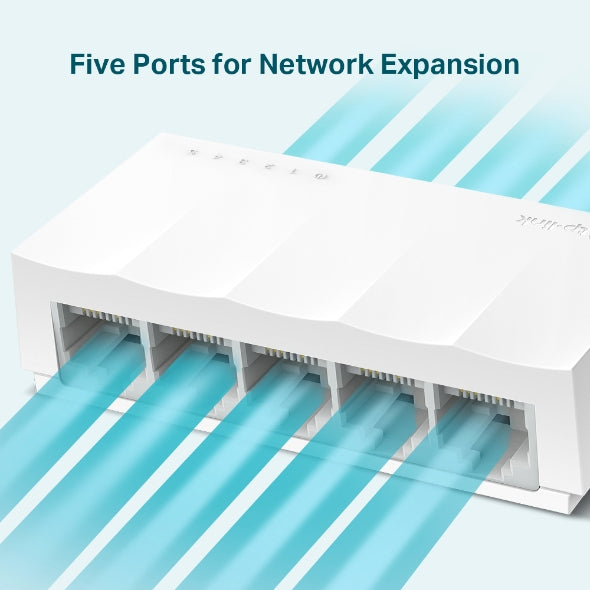

| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Networking standards |
IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| 10G support |
No |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Switching capacity |
1 Gbit/s |
| Forwarding rate |
0.7 Mpps |
| MAC address table |
2000 entries |
| Store-and-forward |
Yes |
| Jumbo frames support |
Yes |
| Jumbo frames |
2000 |
| Rack mounting |
No |
| Product colour |
White |
| Housing material |
Plastic |
| International Protection (IP) code |
IP20, IP40 |
| Wall mountable |
No |

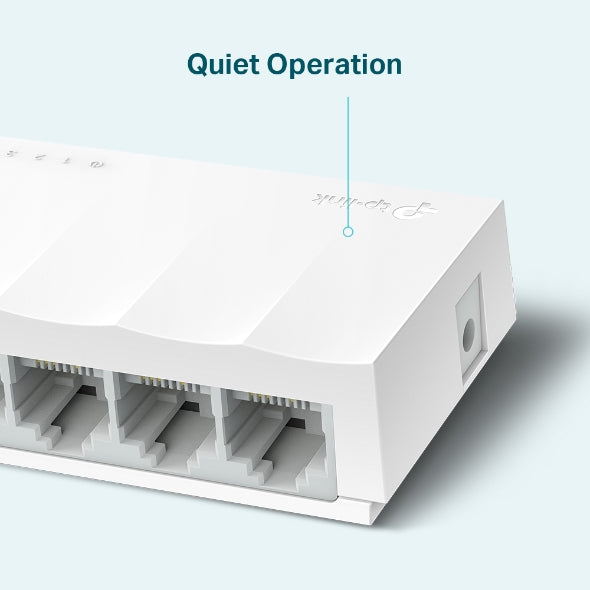

| Fanless |
Yes |
| Power supply included |
Yes |
| DC input voltage |
5 V |
| Input current |
0.6 A |
| Power consumption (max) |
1.65 W |
| Power over Ethernet (PoE) |
No |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Storage relative humidity (H-H) |
5 - 90% |
| Heat dissipation |
5.627 BTU/h |
| Width |
83.6 mm |
| Depth |
45.7 mm |
| Height |
22.8 mm |
| Quick start guide |
Yes |
| Package type |
Box |
| Certification |
CE, RoHS |
| Harmonized System (HS) code |
85176990 |
