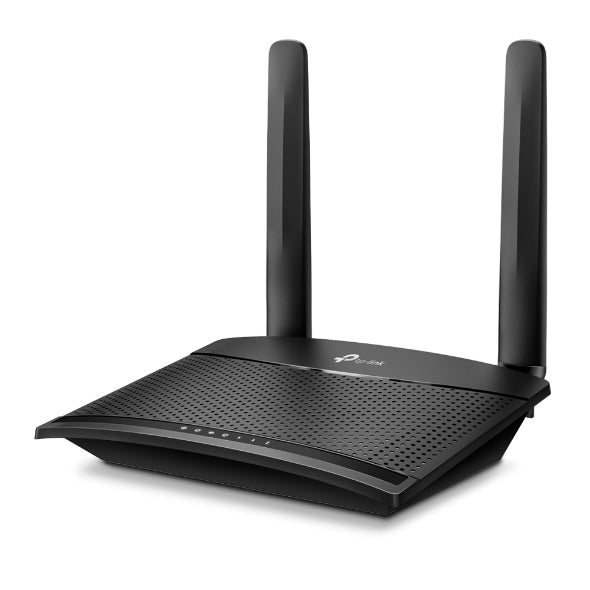

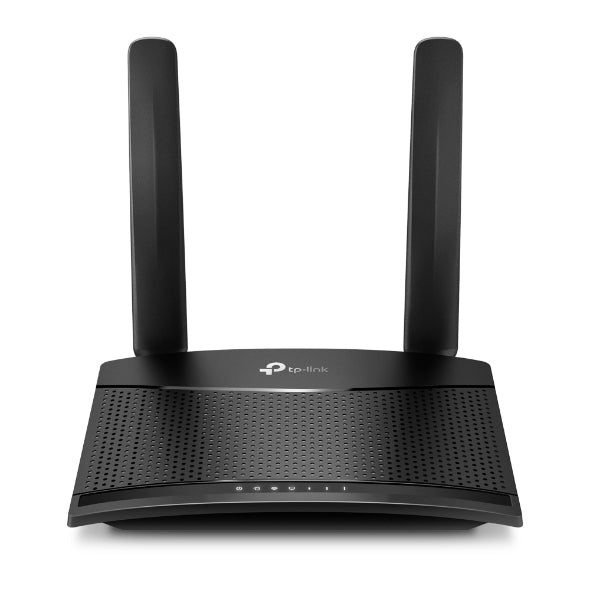

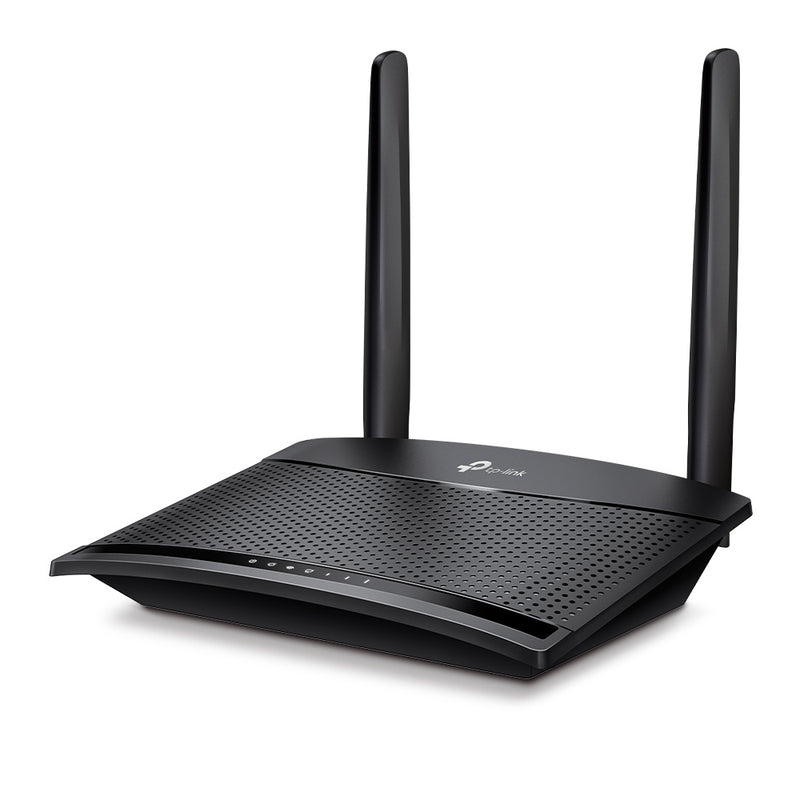

TP-Link TL-MR100. WAN connection type: RJ-45. Wi-Fi band: Single-band (2.4 GHz), Top Wi-Fi standard: Wi-Fi 4 (802.11n), WLAN data transfer rate (max): 300 Mbit/s. Ethernet LAN interface type: Fast Ethernet, Ethernet LAN data rates: 10,100 Mbit/s, Cabling technology: 10/100Base-T(X). Mobile network generation: 4G, 3G standards: HSPA, UMTS, 4G standard: LTE-TDD & LTE-FDD. Security algorithms: 64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
| Ethernet WAN |
Y |
| DSL WAN |
Y |
| SIM card slot |
Y |
| 3G/4G USB modem compatibility |
Y |
| WAN connection type |
RJ-45 |
| Wi-Fi band |
Single-band (2.4 GHz) |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| WLAN data transfer rate (max) |
300 |
| Wi-Fi standards |
802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN |
Y |
| Ethernet LAN interface type |
Fast Ethernet |
| Ethernet LAN data rates |
10,100 |
| Cabling technology |
10/100Base-T(X) |
| Networking standards |
IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Port forwarding |
Y |
| Port triggering |
Y |
| Dynamic DNS (DDNS) |
Y |
| Wireless radio |
Y |
| Equivalent Isotropically Radiated Power (EIRP) (@IEEE 802.11n) |
20 |
| Receiver sensitivity |
11g 54M: -74dBm
11n HT20: -71dBm
11n HT40: -67dBm |
| Mobile network generation |
4G |
| 3G |
Y |
| 4G |
Y |
| 3G standards |
HSPA,UMTS |
| 4G standard |
LTE-TDD & LTE-FDD |
| UMTS bands supported |
850,900,2100 |
| 4G bands supported |
800,900,1800,1900,2100,2300,2500,2600 |
| Ethernet LAN (RJ-45) ports |
2 |
| USB port |
N |
| Memory card slot(s) |
N |
| DC-in jack |
Y |
| Wi-Fi Multimedia (WMM)/(WME) |
Y |
| Quality of Service (QoS) support |
Y |
| Wireless statistics |
Y |
| Reset button |
Y |
| WPS push button |
Y |
| Security algorithms |
64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Firewall |
Y |
| Guest access |
Y |
| Stateful Packet Inspection (SPI) |
Y |
| Schedule access |
Y |
| MAC address filtering |
Y |
| IP address filtering |
Y |
| DMZ support |
Y |
| DHCP client |
Y |
| DHCP server |
Y |
| Universal Plug and Play (UPnP) |
Y |
| Supported network protocols |
IPv4, IPv6 |
| Product colour |
Black |
| On/off switch |
Y |
| Product type |
Tabletop router |
| Cables included |
LAN (RJ-45) |
| AC adapter included |
Y |
| Quick installation guide |
Y |
| Antenna design |
External |
| Antenna connector type |
N-type |
| Antennas quantity |
2 |
| Firmware upgradeable |
Y |
| Certification |
CE, RoHS |
| Power source type |
DC |
| Output voltage |
9 |
| Output current |
0.85 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Browser supported |
Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 |
| Windows operating systems supported |
Windows 2000,Windows 7,Windows 8,Windows 8.1,Windows 98SE,Windows NT,Windows Vista,Windows XP |
| Linux operating systems supported |
Y |
| Mac operating systems supported |
Y |
| Width |
154 |
| Depth |
114 |
| Height |
36 |
| Package width |
293 |
| Package depth |
161 |
| Package height |
66 |
| Package weight |
450 |
| Harmonized System (HS) code |
85176990 |
