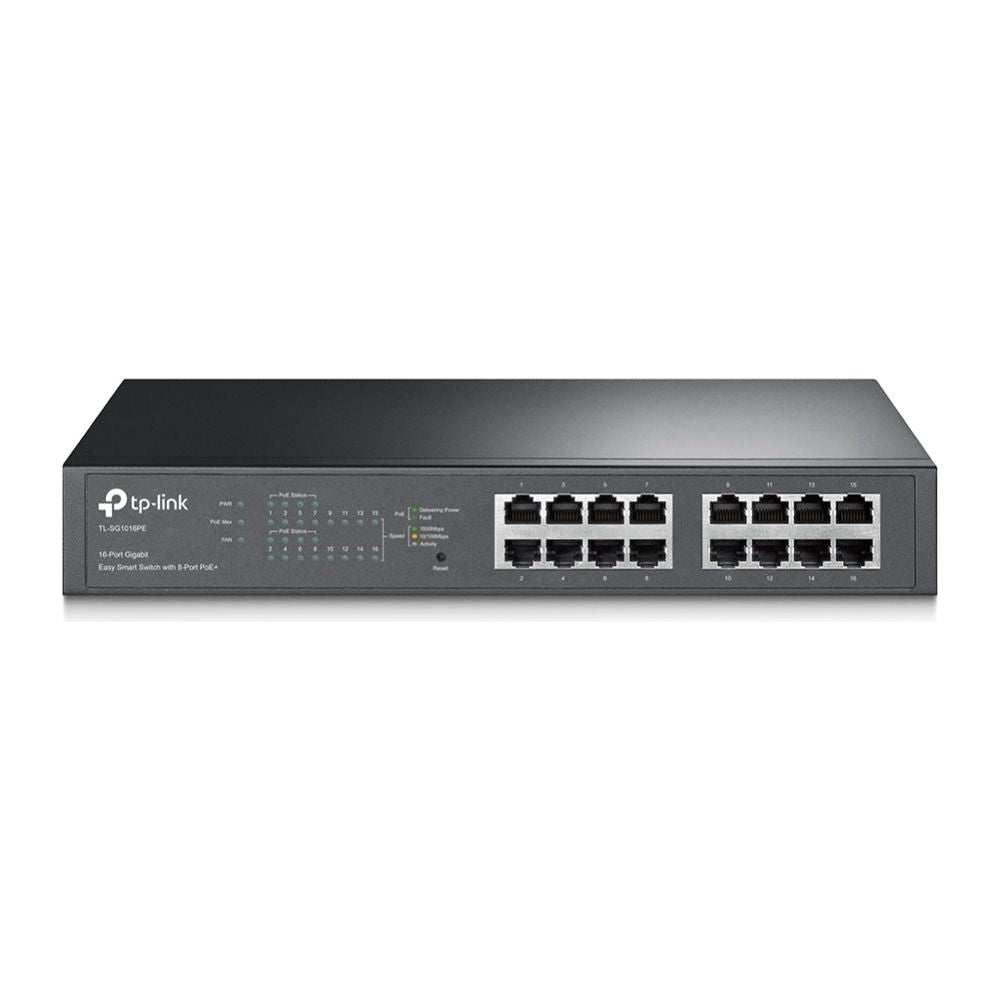

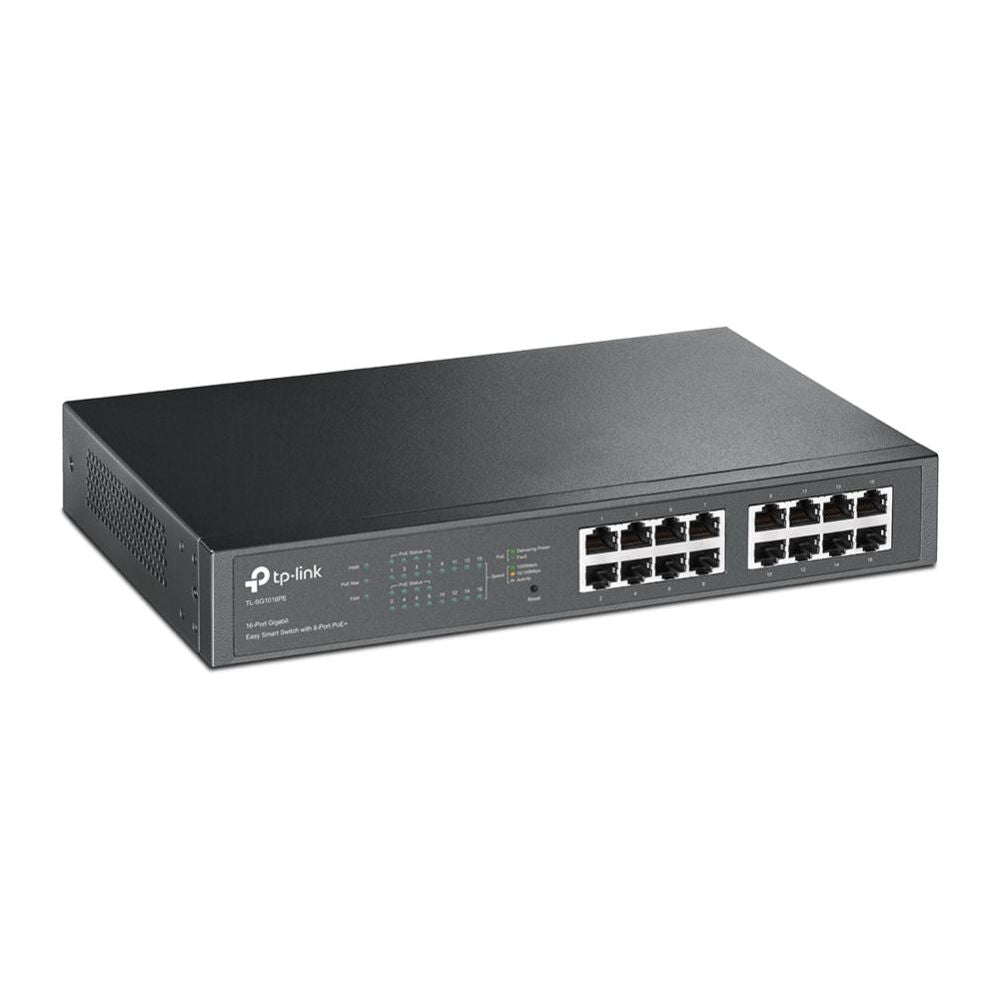

TP-Link TL-SG1016PE. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 16. Full duplex. MAC address table: 8000 entries, Switching capacity: 32 Gbit/s. Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE.... Power over Ethernet (PoE). Rack mounting
| Switch type |
Managed |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Y |
| Web-based management |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
16 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
16 |
| Networking standards |
IEEE 802.1Q,IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e,Cat6 |
| Port mirroring |
Y |
| Full duplex |
Y |
| Flow control support |
Y |
| Link aggregation |
Y |
| Broadcast storm control |
Y |
| Rate limiting |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| VLAN support |
Y |
| Virtual LAN features |
Port-based VLAN,Tagged VLAN |
| Number of VLANs |
4000 |
| Switching capacity |
32 |
| Throughput |
23.8 |
| MAC address table |
8000 |
| Store-and-forward |
Y |
| Number of queues |
4 |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| IGMP snooping |
Y |
| Static port security |
Y |
| Loop protection |
Y |
| Rack mounting |
Y |
| Stackable |
N |
| Product colour |
Black |
| LED indicators |
Y |
| Number of fans |
1 |
| Certification |
FCC, CE, RoHS |
| Power supply included |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (max) |
124.4 |
| Power over Ethernet (PoE) |
Y |
| Power over Ethernet plus (PoE+) ports quantity |
8 |
| Power over Ethernet (PoE) power per port |
30 |
| Total Power over Ethernet (PoE) budget |
110 |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Width |
294 |
| Depth |
180 |
| Height |
44 |
| Cables included |
AC |
| Rack mount kit |
Y |
| Harmonized System (HS) code |
85176990 |
