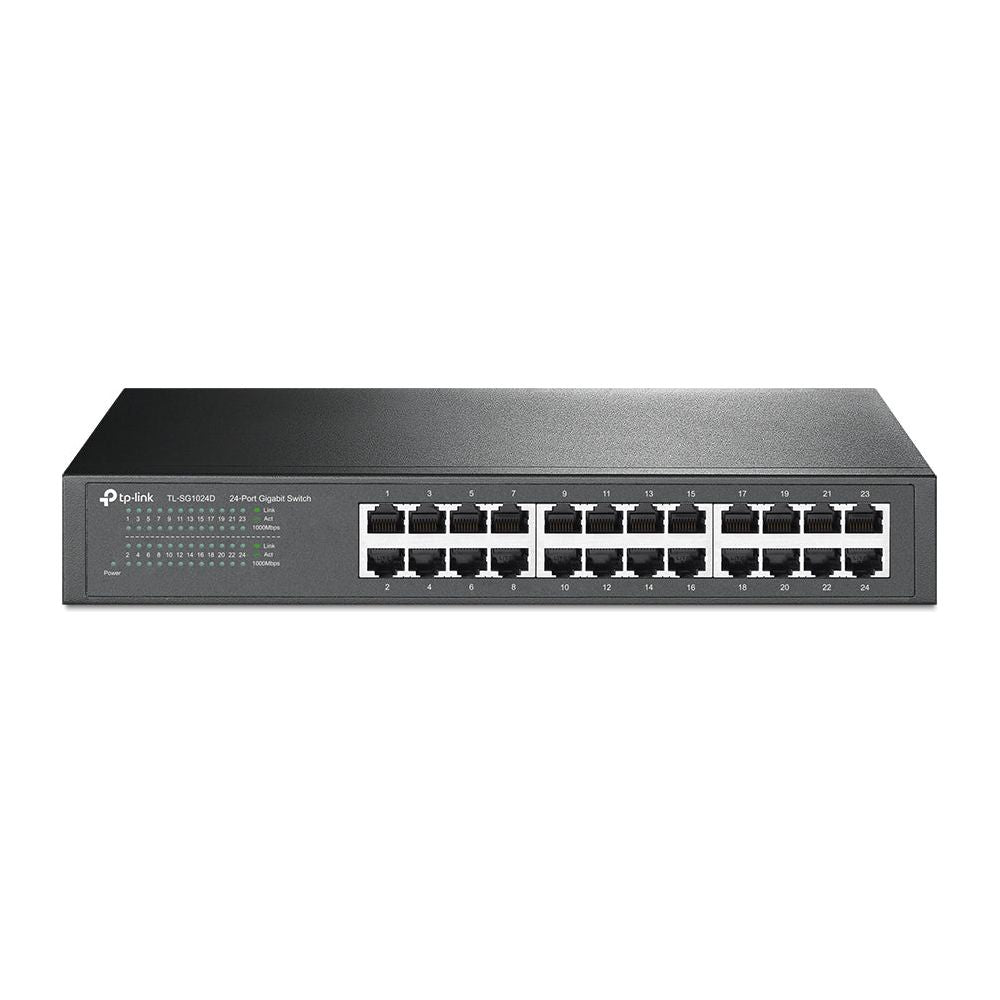

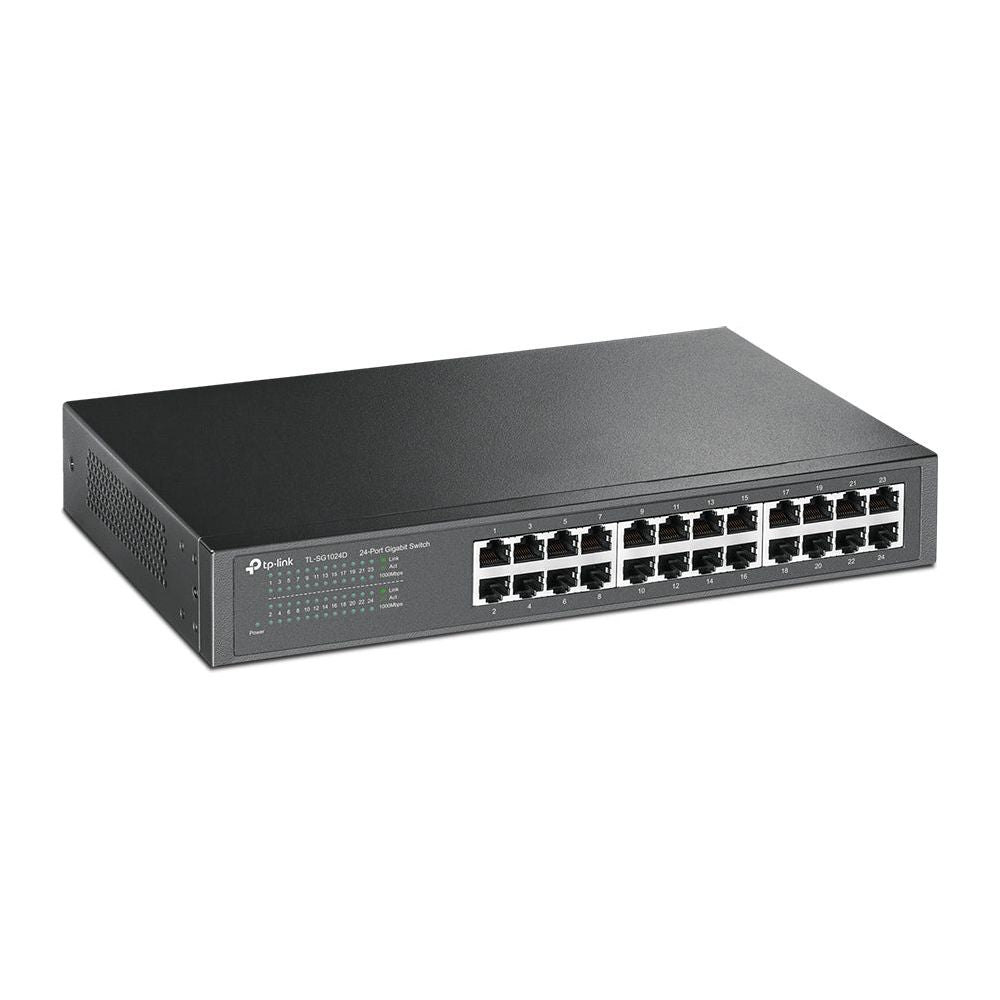

TP-Link TL-SG1024D. Switch type: Unmanaged. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 24. Full duplex. MAC address table: 8000 entries, Switching capacity: 48 Gbit/s. Networking standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Rack mounting
| Switch type |
Unmanaged |
| Basic switching RJ-45 Ethernet ports quantity |
24 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
24 |
| Power connector |
DC-in jack |
| Networking standards |
IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| Switching capacity |
48 |
| Forwarding rate |
35.7 |
| MAC address table |
8000 |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
10000 |
| Supported network protocols |
CSMA/CD, TCP/IP |
| Rack mounting |
Y |
| Stackable |
Y |
| Product colour |
Grey |
| LED indicators |
Y |
| Certification |
FCC, CE, RoHS |
| Power supply included |
Y |
| AC input voltage |
100 - 240 |
| AC input frequency |
50 - 60 |
| Power consumption (max) |
13.08 |
| Power over Ethernet (PoE) |
N |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Heat dissipation |
44.63 |
| Width |
294 |
| Depth |
180 |
| Height |
44 |
| Cables included |
AC |
| User guide |
Y |

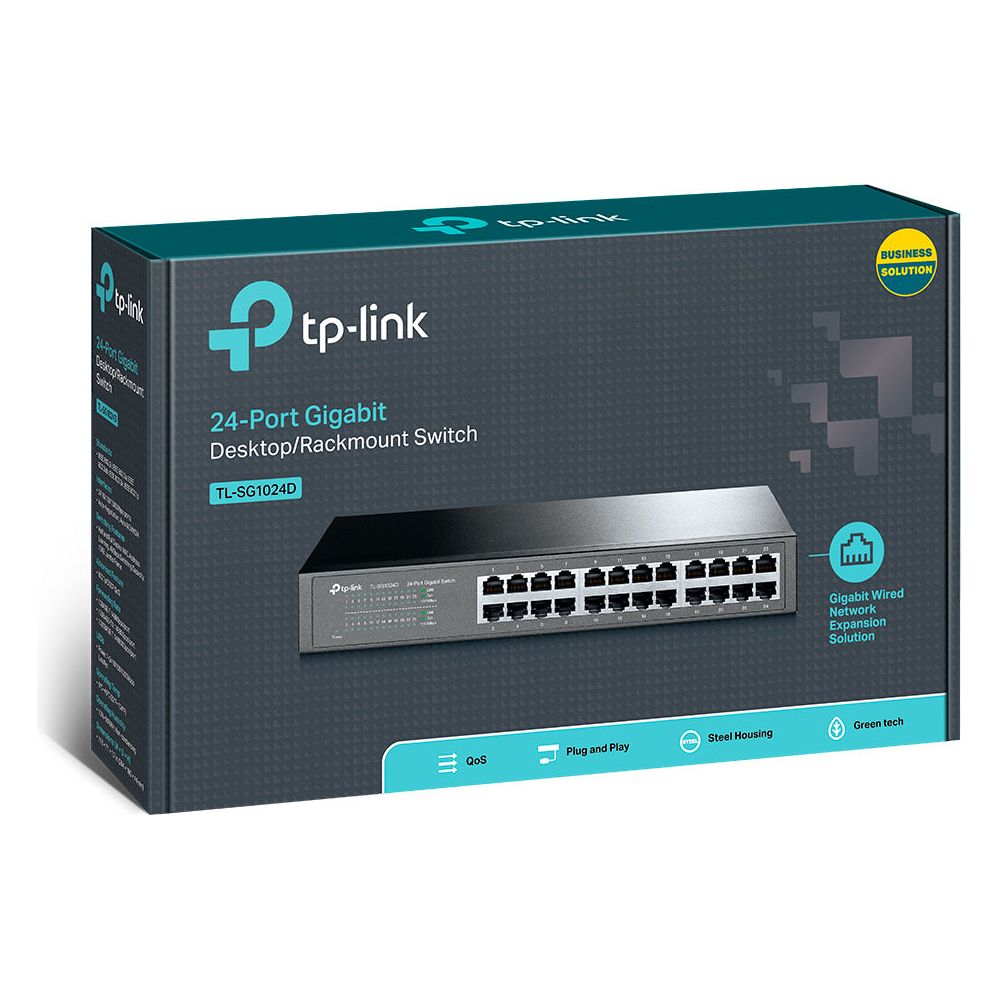

| Package type |
Box |
| Rack mount kit |
Y |
| Harmonized System (HS) code |
85176990 |
