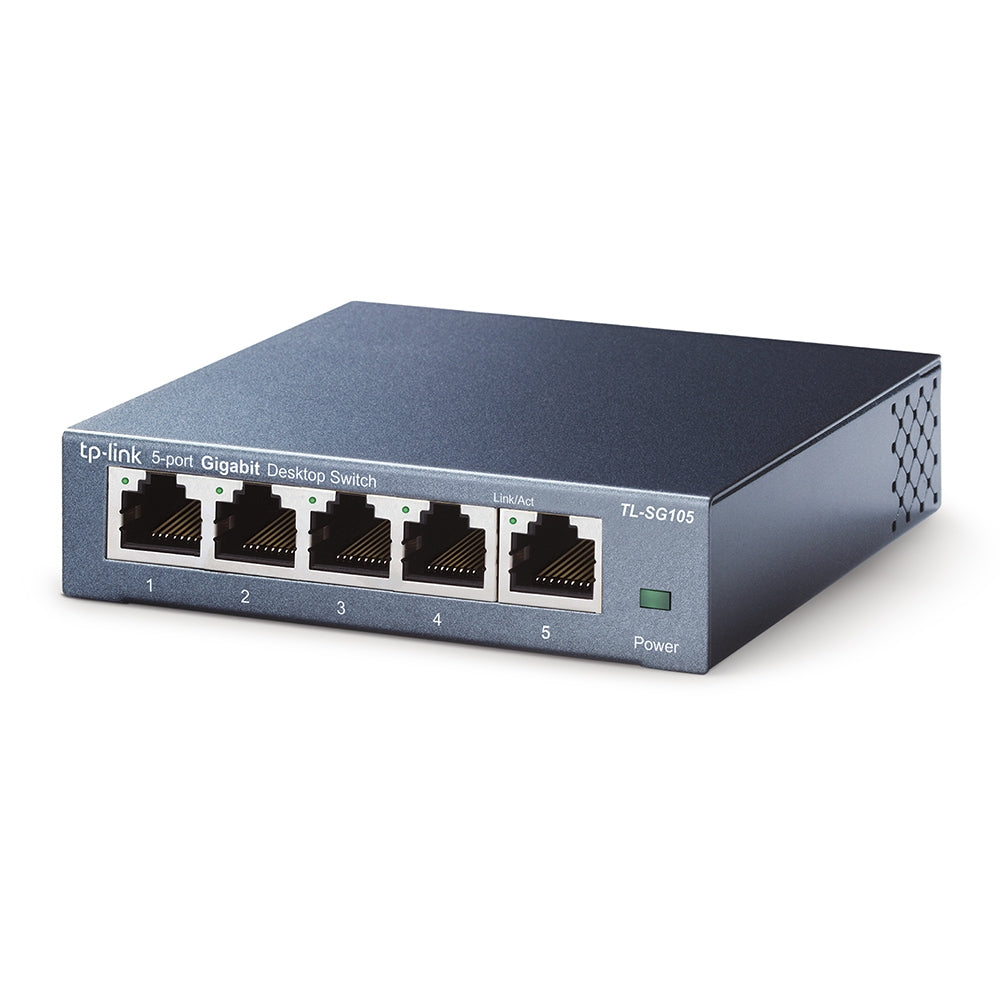

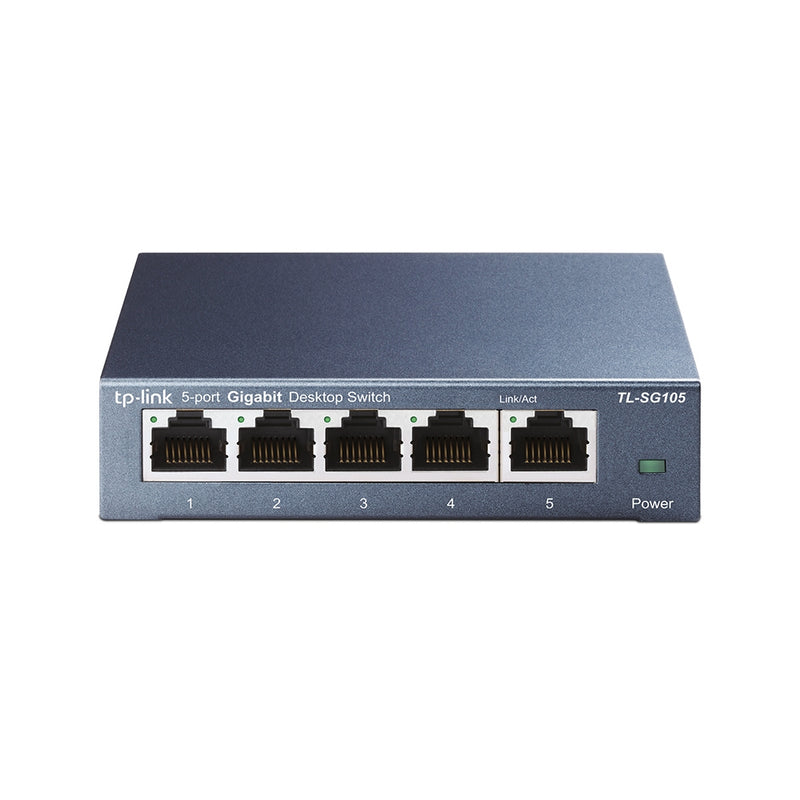

TP-Link TL-SG105. Switch type: Unmanaged, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Basic switching RJ-45 Ethernet ports quantity: 5. Full duplex. MAC address table: 2048 entries, Switching capacity: 10 Gbit/s. Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x. Power connector: DC-in jack. Wall mountable
| Switch type |
Unmanaged |
| Switch layer |
L2 |
| Quality of Service (QoS) support |
Y |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Basic switching RJ-45 Ethernet ports type |
Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity |
5 |
| Power connector |
DC-in jack |
| Networking standards |
IEEE 802.1p,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| 10G support |
N |
| Copper ethernet cabling technology |
10BASE-T,100BASE-TX,1000BASE-T |
| Cable types supported |
Cat3,Cat4,Cat5,Cat5e |
| Full duplex |
Y |
| Flow control support |
Y |
| Auto MDI/MDI-X |
Y |
| Auto-negotiation |
Y |
| MAC address auto-learning supported |
Y |
| MAC address auto-aging supported |
Y |
| Switching capacity |
10 |
| Forwarding rate |
7.4 |
| MAC address table |
2048 |
| Store-and-forward |
Y |
| Jumbo frames support |
Y |
| Jumbo frames |
16000 |
| Packet buffer memory |
1 |
| IGMP snooping |
Y |
| Multicast support |
Y |
| Rack mounting |
N |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Y |
| Wall mountable |
Y |
| Certification |
CE, FCC, RoHS |
| Power supply included |
Y |
| AC input voltage |
220 |
| AC input frequency |
50 |
| Input current |
0.6 |
| Power consumption (max) |
2.3 |
| Power over Ethernet (PoE) |
N |
| Operating temperature (T-T) |
0 - 40 |
| Storage temperature (T-T) |
-40 - 70 |
| Operating relative humidity (H-H) |
10 - 90 |
| Storage relative humidity (H-H) |
5 - 90 |
| Heat dissipation |
7.83 |
| Width |
100 |
| Depth |
98 |
| Height |
25 |
| Cables included |
AC |
| User guide |
Y |
| Package type |
Box |
| Harmonized System (HS) code |
85176990 |
