Smart. Secure. Easy.

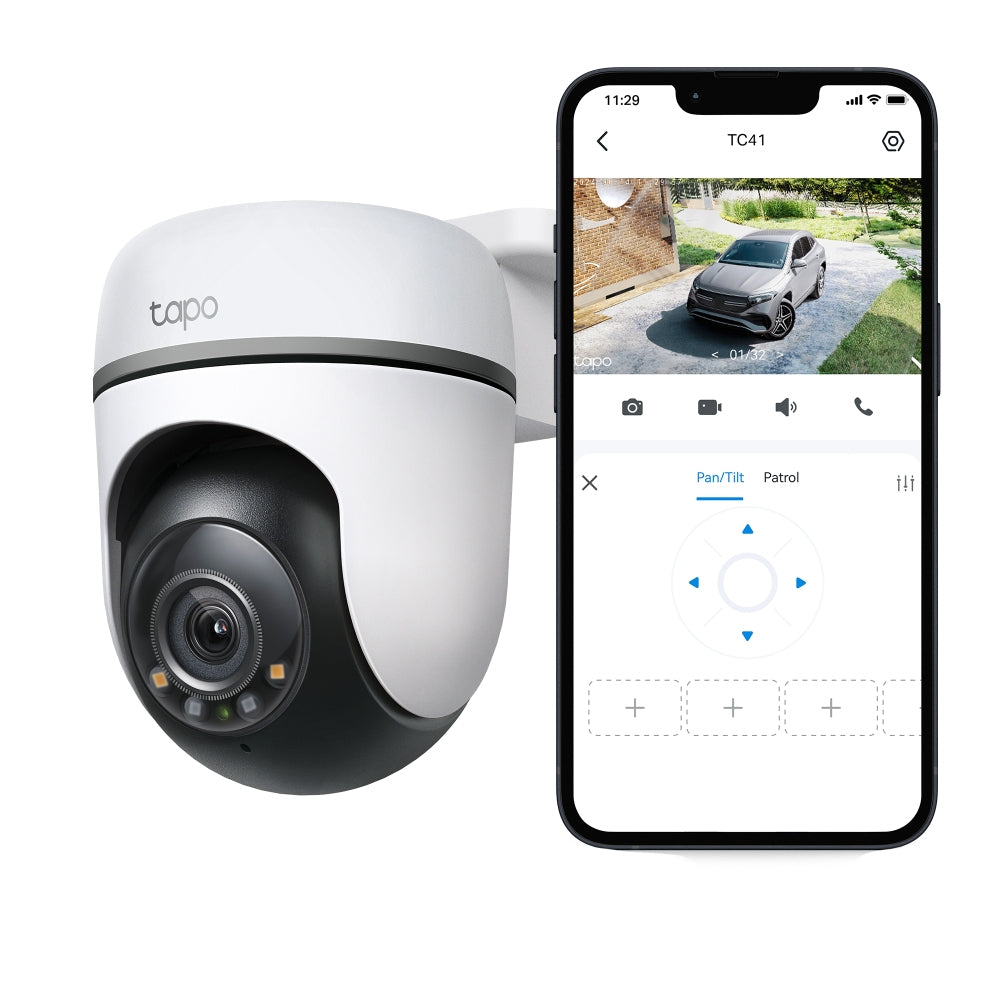

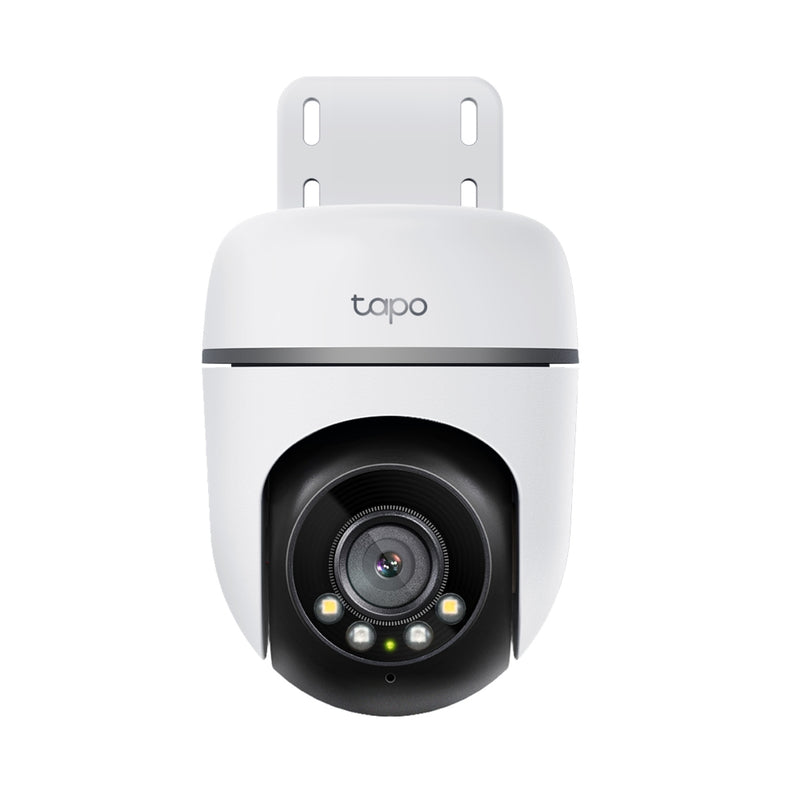

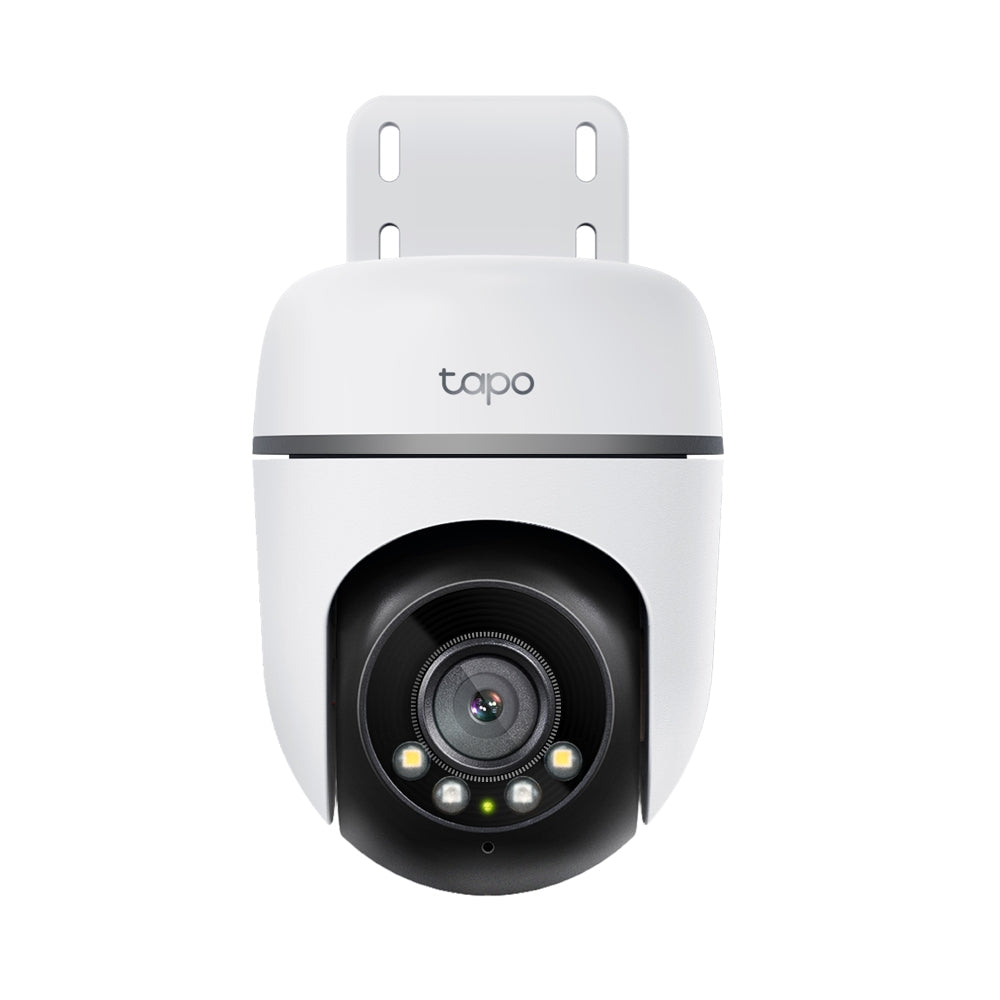

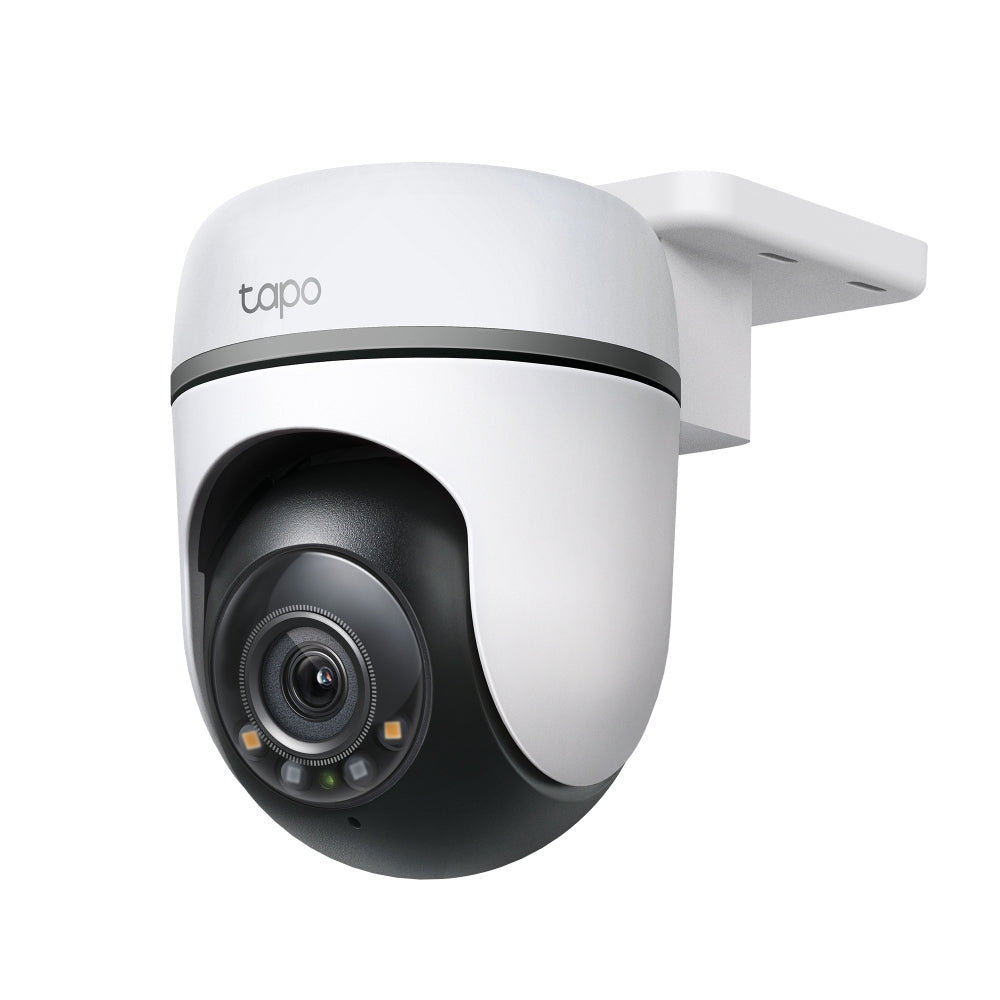

All-Round Protection with Vivid Colours Outdoor Pan/Tilt Security Wi-Fi Camera

360° Visual Coverage
Provides 360° horizontal & 130° vertical view range to capture everything around.

Full-Colour Mode
Two built-in spotlights enables TC41 to capture full-colour images for enhanced security.

Infrared Mode
Provides a visual distance of up to 98ft at night while also helping you save more energy with spotlights off.

Smart Mode
Lights up the environment and automatically switches to full-colour mode to provide more details when a person or motion is detected.

2K Resolution, See Every Detail
With the resolution of 2304 × 1296 px , TC41 enhances your security by capturing more details compared with traditional 1080p(1920 × 1080 px).

Smart Motion Tracking
TC41 tracks motion with high-speed rotation, ensuring you to keep an eye on more vital areas.

Multiple Detection for Free
Customize your detection and keep an eye on what matters.

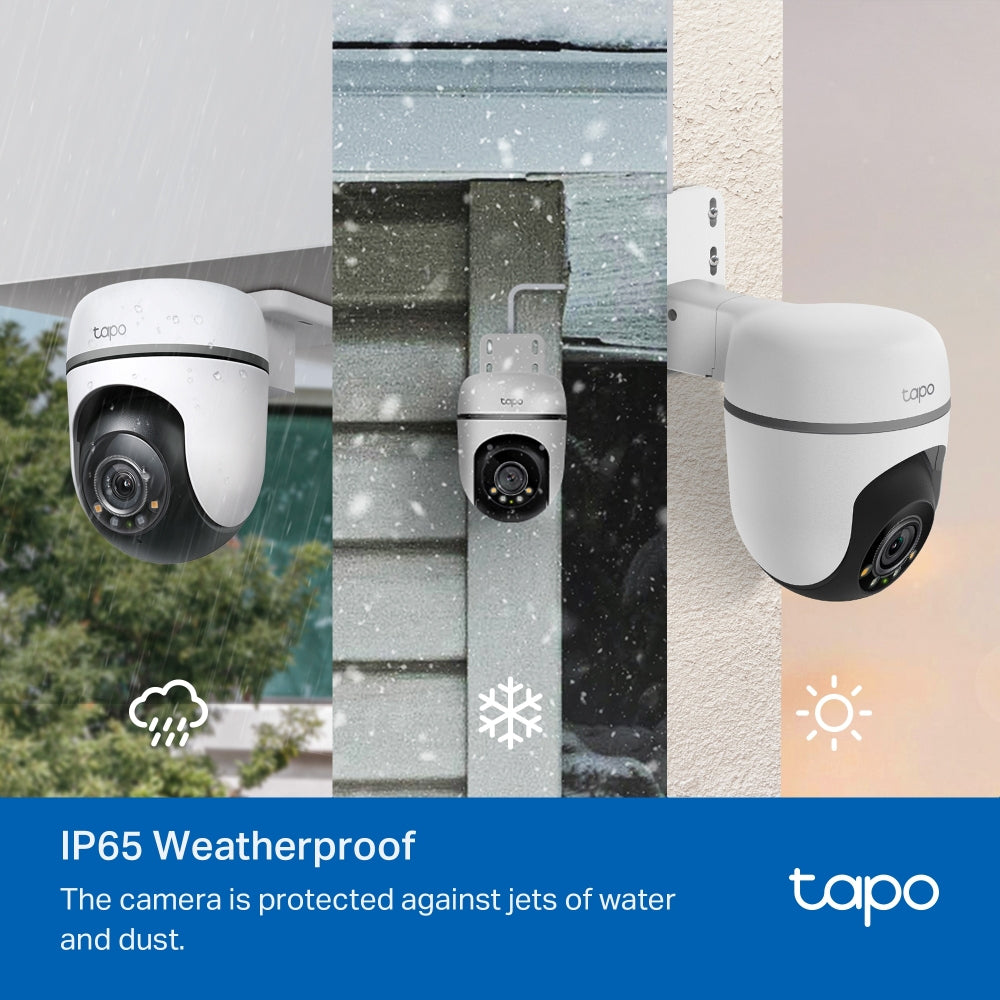

IP65 Water & Dust Resistant
Offers excellent waterproof and dustproof performance for outdoor scenarios.

Two-Way Audio
Communicate directly with the outdoors for your convenience.

Physical Privacy Mode
Maintains your privacy with the lens physically blocked by the housing.

Voice Activated
Enjoy your smart life and keep an eye on your vital areas with Alexa & Google Assistant supported.

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wireless
Auto patrol mode	Yes
Wide Dynamic Range (WDR)	Yes
Virtual assistant	Amazon Alexa & Google Assistant
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Form factor	Spherical
Mounting type	Ceiling/Wall/Pole
Product colour	Black, White
LED indicators	Yes
Protection features	Dust resistant, Heat resistant, Rain proof, Snow resistant, Weather resistant
International Protection (IP) code	IP65
Weatherproof	Yes
Camera pan control	Yes
Camera tilt control	Yes
Field of view (FOV) angle	85.5°
Lens viewing angle, horizontal	73.5°
Lens viewing angle, vertical	41°
Lens viewing angle, diagonal	85.5°
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes
Sensor type	CMOS
Number of lenses	1
Maximum aperture number	2.2
Fixed focal length	3.99 mm
Night vision	Yes
Night vision distance	29.9 m
LED type	IR
Infra-red wavelength	850 nm
Maximum resolution	2304 x 1296 pixels
Video formats supported	H.264
Supported graphics resolutions	2304 x 1296
Supported video modes	1296p
Frame rate	30 fps
Noise reduction	Yes
Image quality adjustment	DNR
Built-in speaker(s)	Yes
Built-in microphone	Yes
Ethernet LAN	No
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channel bandwidth	2400 MHz
Works with the Google Assistant	Yes
Works with Amazon Alexa	Yes
Live view	Yes
Built-in HDD	No

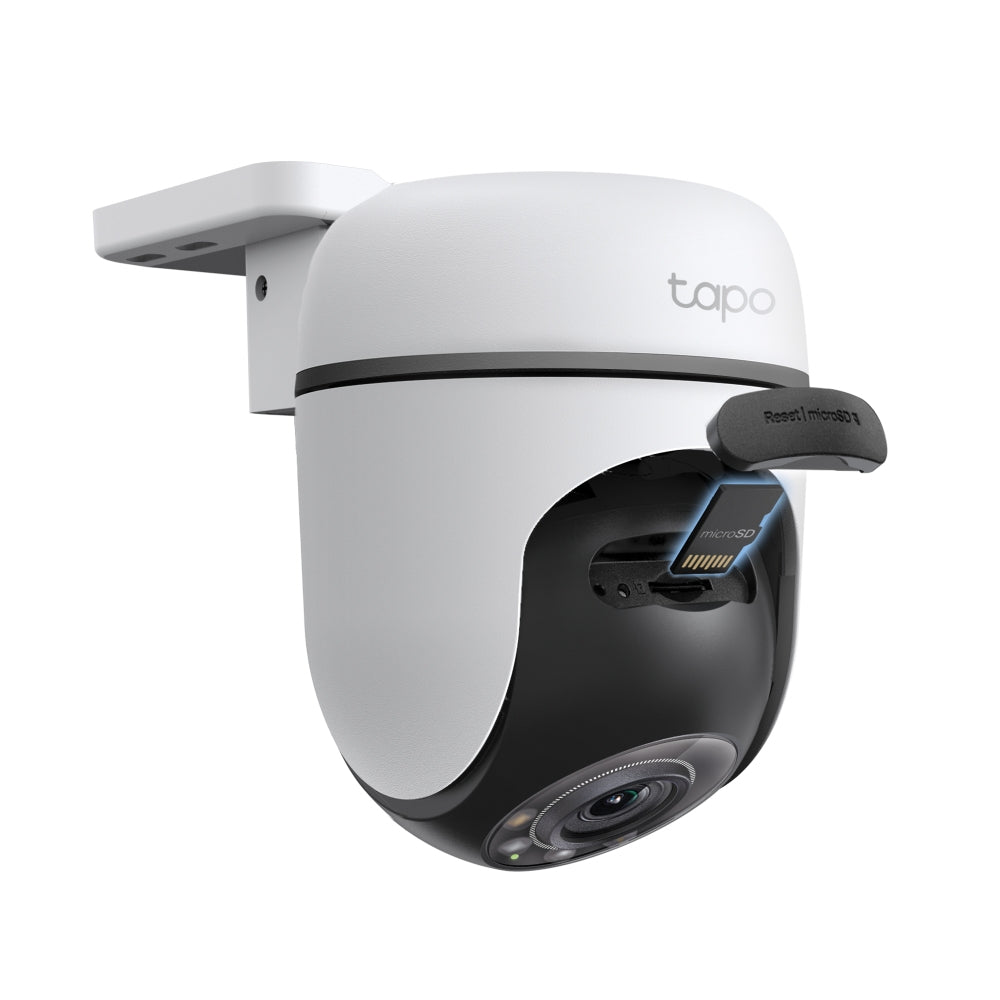

Card reader integrated	Yes

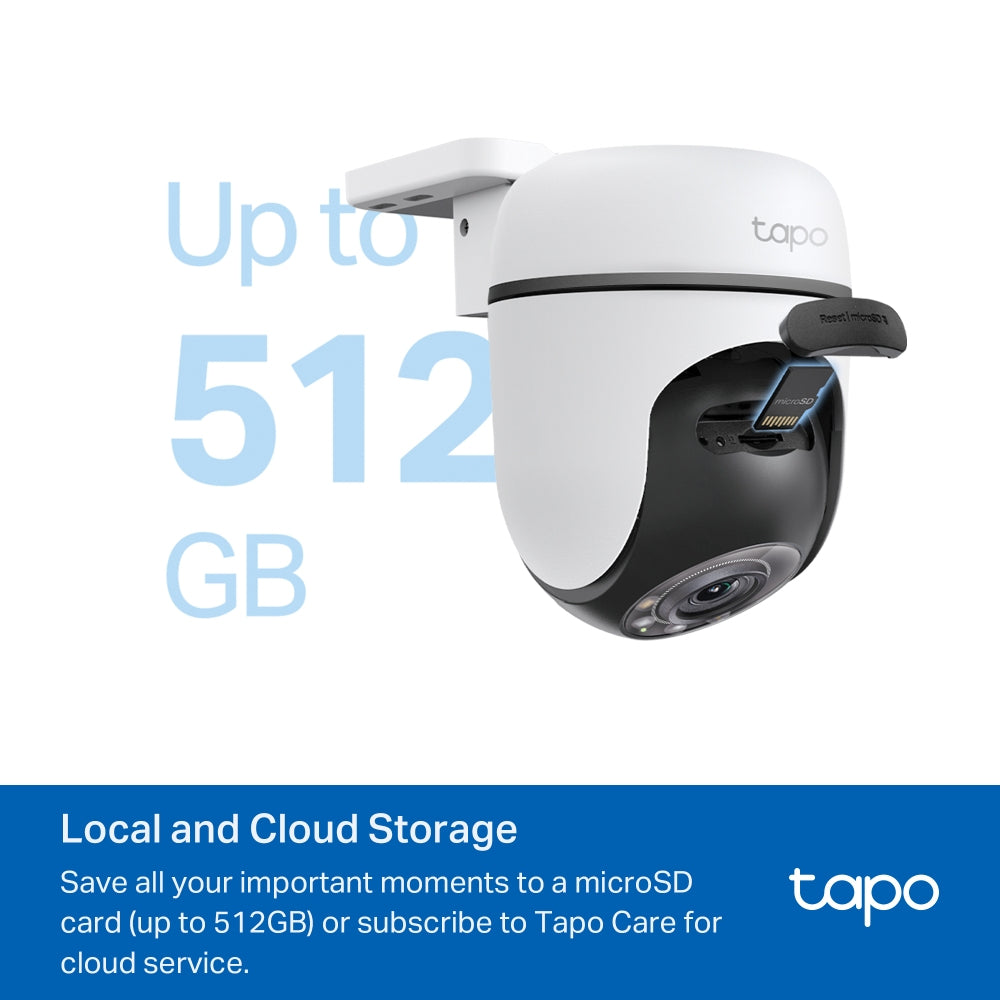

Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
Built-in siren	Yes
Siren noise level	90 dB
Video motion detection	Yes
Active tampering alarm	Yes
Security algorithms	128-bit AES, SSL/TLS, WPA, WPA2-PSK, WPA3
Alert notification type	Push notification, Snapshot alert message
Intelligent Video Surveillance (IVS) system features	Moving object
Cloud-managed	Yes
Reset button	Yes
Power source type	AC, DC
AC input voltage	100-240 V
AC input frequency	50/60 Hz
Power consumption (typical)	2.3 W
Power consumption (max)	7.2 W
DC output voltage	9
DC output current	0.85 A
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	0 - 90%
Width	123.8 mm
Depth	90 mm
Height	123 mm
Weight	364 g
Cable length	3 m
Package width	220 mm
Package depth	162 mm
Package height	146 mm
Package weight	720 g

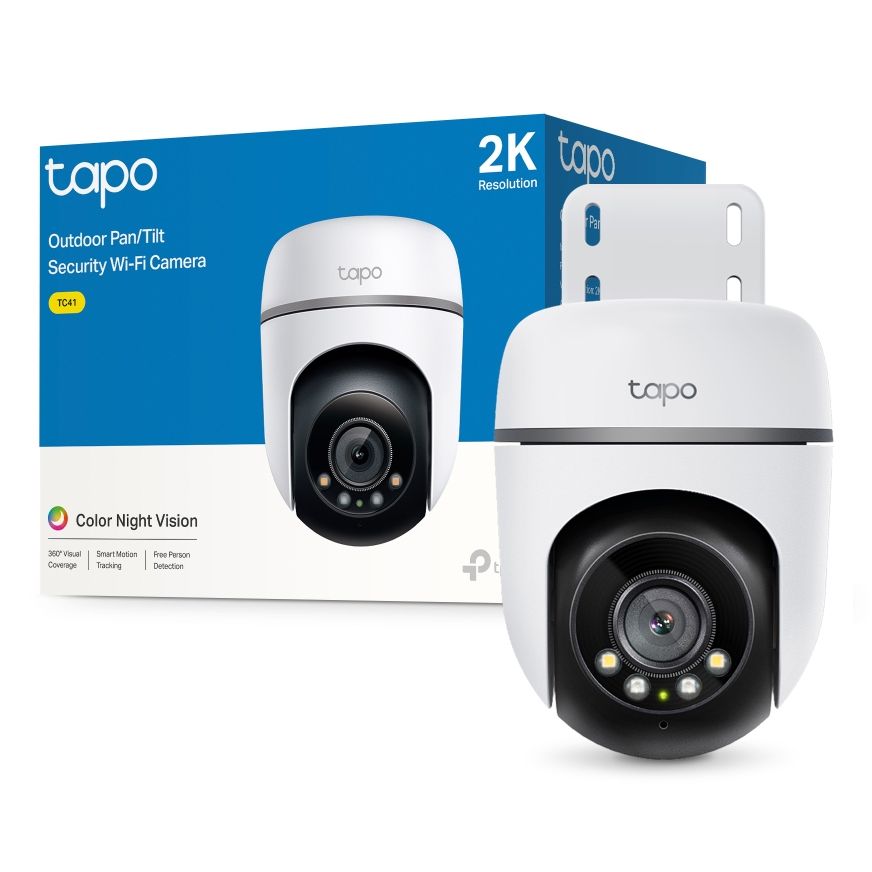

Package type	Box
Compliance certificates	CE, RCM, RoHS
Number of cameras	1
Mounting kit	Yes
Mounting brackets included	Yes
Screws included	Yes
Manual	Yes
Packaging content	TC41 Camera Power Adapter Mounting Anchors Mounting Screws Bracket Screws Mounting Template Mounting Bracket Waterproof Seal Quick Start Guide
