All The Colors, All The Time

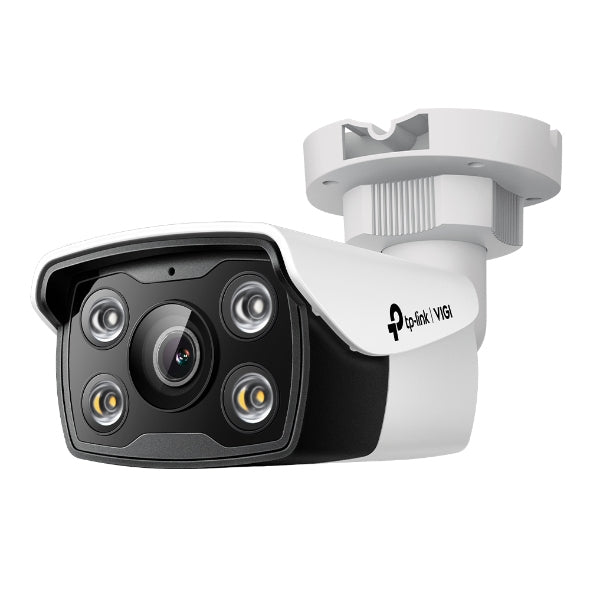

5MP Outdoor Full-Color Bullet Network Camera

24/7 Stunning Visual Experience
5MP Super-High Definition
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 5MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including WDR, 3D DNR, Smart IR, and Night Vision.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

Comprehensive AI Detection with Pre-Set Rules Supported
By setting the detection rules in advance, VIGI AI-powered cameras can accurately capture various abnormal events. This will greatly reduce false alarms and cover your specified monitoring needs in different scenarios.

Set customized activity zones around key areas for more focused monitoring.

People & Vehicle Analytics
Quickly find people and vehicles of interest using a series of attributes.

People Analytics
Filter people of interest by various attributes, such as hair length, and clothing, allowing you to improve search efficiency.

Vehicle Analytics
Identify and search for vehicles of interest based on vehicle color and type for targeting meaningful events in a short time.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events.

Every Event is Under Your Control
VIGI camera intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.

Outdoor PoE Connection, IP67 Protection
Just connect your camera via an RJ45 cable, then power supply and data transmission are all settled. Waterproof hardware protect stable performance in outdoor scenarios.

Smart Video Coding by H.265+△
Compresses the video size without sacrificing video quality, easing the network load and saving disk space.

△Tile encoding is automatically enabled in H.265 mode when the horizontal resolution exceeds 2688. If a third-party NVR doesn't support tile encoding, it cannot enable H.265 mode. For optimal performance, we recommend using VIGI NVR with VIGI cameras.

Flexible Storage
Local storage is available for each method, as well as onboard storage with an SD card slot (up to 256 GB).

Remote Management
Take full control over your security anytime and anywhere on the VIGI app or client.

Live Views and Real-Time Alerts
Easily check your business security via 24/7 live views. Get notifications as soon as the cameras detect something abnormal.

Easy & Smart Playback
Quickly review and locate certain video clips by event, vehicle, person, time, and more. This will greatly improve event backtracking efficiency and reduce labor costs.

Customized Monitoring Patterns
Based on your monitoring needs, you can freely preset motion zones, adjust the rotation angle, set zoom in & out, customize patrol routes, control patrol routes, and more.

Four-Way Management
Flexibly manage your cameras via the web UI, NVR UI, VIGI app, and VIGI Security Manger for ease and convenience.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Type	IP security camera
Placement supported	Outdoor
Connectivity technology	Wired
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Built-in light	Yes
Dynamic range	120 dB
Certification	CE, NTRA, VCCI, KC, BSMI, FCC, IC
Form factor	Bullet
Mounting type	Ceiling
Product colour	Black, White
LED indicators	Yes
Housing material	Plastic
Protection features	Waterproof
International Protection (IP) code	IP67
Minimum illumination	0 lx
Angle of rotation	360°
Lens viewing angle, horizontal	90°
Lens viewing angle, vertical	48°
Lens viewing angle, diagonal	107°
Tilt angle range	0 - 90°
Pan range	0 - 360°
Camera shutter speed	1/3 - 1/10000 s
Number of Privacy masking areas	4
Number of sensors	1
Optical sensor size	25.4 / 2.7 mm (1 / 2.7")
Progressive scan	Yes
Sensor type	CMOS
Number of lenses	1
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Maximum aperture number	1.6
Identify distance	8 m
Fixed focal length	4 mm
Night vision	Yes
Night vision distance	30 m
LED type	IR
Number of illumination LEDs	4
Infra-red wavelength	850 nm
Maximum resolution	2880 x 1620 pixels
Total megapixels	5 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Privacy masking	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Bit rate	256 Kbps - 6 Mbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
Built-in speaker(s)	Yes
Audio system	2-way
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Sample rate	8 kHz
Signal-to-Noise Ratio (SNR)	52 dB
Built-in microphone	Yes
Bit rate range	0 - 64 Kbit/s
Ethernet LAN	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi	No
Bluetooth	No
Live view	Yes
Number of simultaneous live view channels	6 channels
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Password protection	Yes
Video motion detection	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Vehicle detection
Human and vehicle targets classification	Yes
Digest authentication	Yes
Web browser	Yes
Cloud-managed	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region exiting detection
Power source type	DC, PoE
Power consumption (max)	9 W
Power consumption (Power over Ethernet (PoE))	10.5 W
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Storage temperature (T-T)	-40 - 60 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Width	188 mm
Height	71.5 mm
Length	78.5 mm
Package type	Box
Sustainability compliance	Yes
Compliance certificates	BSMI, CE, Federal Communications Commission (FCC), KC, VCCI
Number of cameras	1
