All The Colors, All The Time

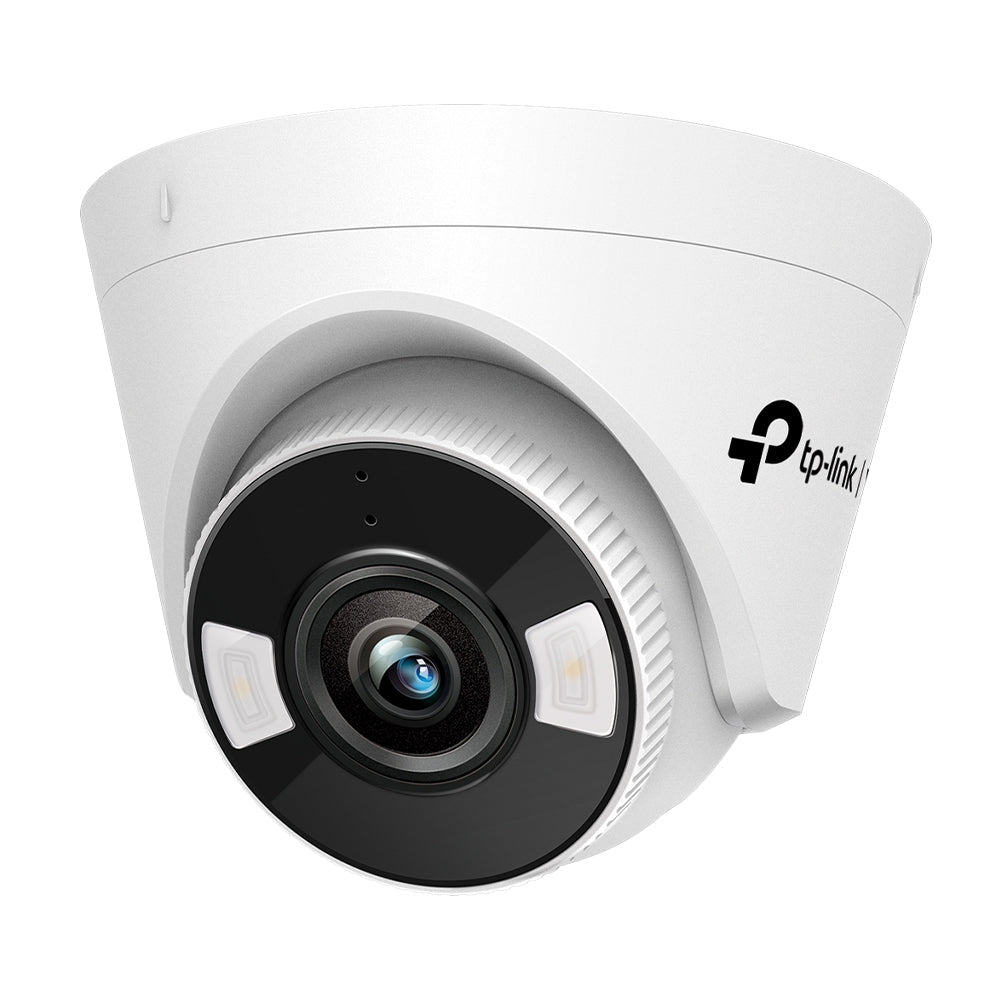

3MP Full-Color Turret Network Camera

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 3MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

Human & Vehicle Classification
Integrated AI chips support advanced algorithms to distinguish humans and vehicles from other objects. You can flexibly customize alarm rules to match your monitoring needs and receive more accurate event notifications.

We keep an eye on your business.
Smart Detection
Backed by AI algorithms, the VIGI camera offers more smart detection. You will receive notifications when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.

No more silent surveillance.
Built-In Microphone
The VIGI camera features a built-in microphone to record anything going on within a 15-ft radius of the camera. This gives you more detailed monitoring for greater peace of mind.

Never miss a detail.
SmartVid-Smart Video Enhancement
VIGI’s professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Plug & Play with One Cable
Enjoy simple wiring with PoE connections. Connect your camera with an RJ45 cable, then your power supply and data transmission are all settled.

Flexible Management
Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager.

Flexible Installation Gives You More Convenience.
Easily route your camera’s cable into a dropped ceiling or avoid drilling by slotting it through the camera’s side outlet.

One system. Full security.
Run your business with peace of mind.
The VIGI professional surveillance system by TP-Link is dedicated to protecting the business you’ve worked hard to build — whenever, wherever. Our outstanding functions, reliable quality guarantees, and simplified installation work together to ensure your business stays safe and sound.

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Form factor	Turret
Mounting type	Ceiling
Product colour	Black, White
Housing material	Plastic
Minimum illumination	0.005 lx
Lens viewing angle, horizontal	107.5°
Lens viewing angle, vertical	57.2°
Lens viewing angle, diagonal	128.7°
Number of sensors	1
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes
Sensor type	CMOS
Number of lenses	1
Fixed focal length	2.8 mm
Night vision	Yes
Night vision distance	30 m
Maximum resolution	2304 x 1296 pixels
Total megapixels	3 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296
Frame rate	25 fps
Image quality adjustment	Brightness, Contrast, Mirror, Saturation
Privacy masking	Yes
Bit rate	64 Kbps - 4 Mbps
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Digital Wide Dynamic Range (DWDR)	Yes
Region of Interest (ROI) encoding	Yes
Smart IR	Yes
3D positioning	Yes
Built-in microphone	Yes
Ethernet LAN	Yes
Networking standards	IEEE 802.3af, IEEE 802.3at
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi	No
Bluetooth	No
Live view	Yes
Number of simultaneous live view channels	3 channels
Built-in HDD	No
Ethernet LAN (RJ-45) ports	1
Password protection	Yes
Video motion detection	Yes
Active tampering alarm	Yes
IP address filtering	Yes
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Human detection, Vehicle detection
Mirror	Yes
Password reset via email	Yes
Human and vehicle targets classification	Yes
Digest authentication	Yes
Behavior analysis	Intrusion detection, Line crossing detection, Object removal detection, Region entrance detection, Region exiting detection
Power source type	DC, PoE
Power consumption (max)	4.2 W
Operating temperature (T-T)	-30 - 60 °C
Width	123 mm
Depth	83 mm
Height	123 mm
Sustainability compliance	Yes
Compliance certificates	BSMI, CE
Number of cameras	1
Mounting kit	Yes
Manual	Yes
