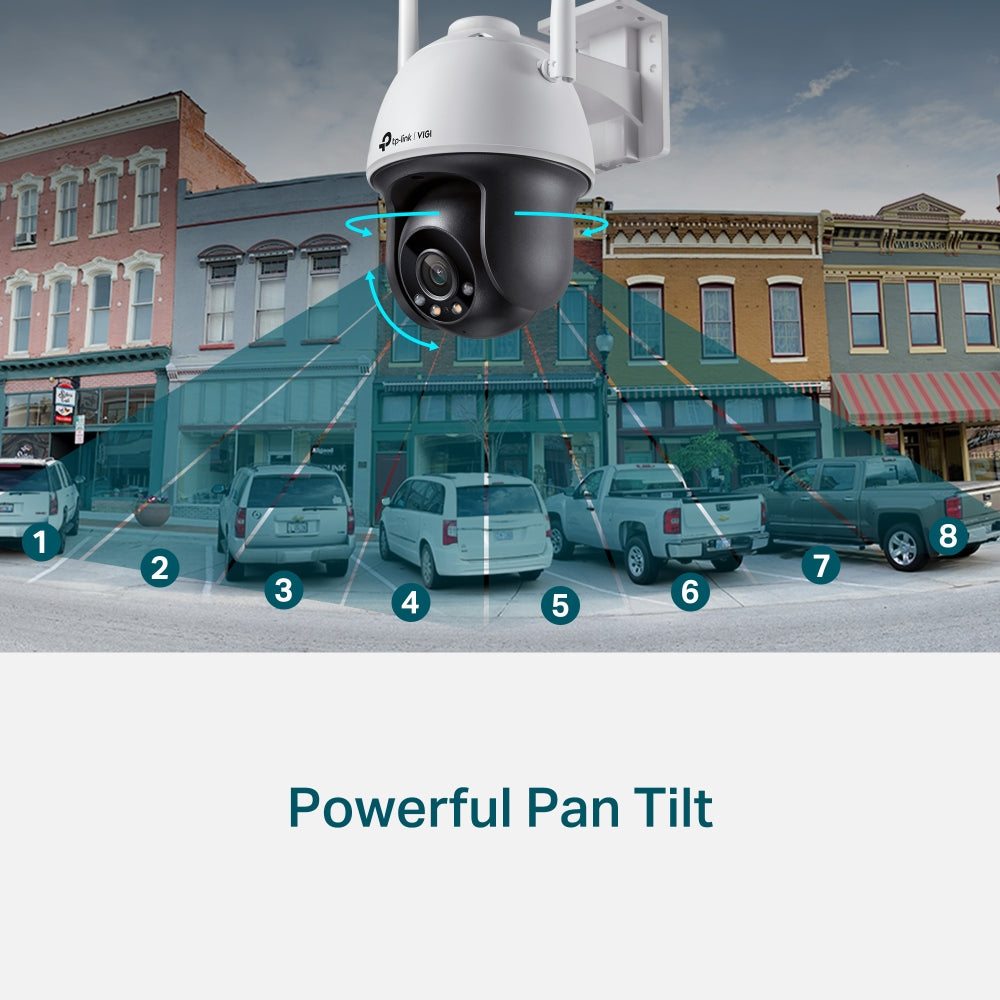

Powerful Pan Tilt
Cover every corner flexibly with VIGI’s Pan Tilt camera. Customized patrol routes and auto tracking provide more intelligent options to monitor key areas and improve the security within your property.

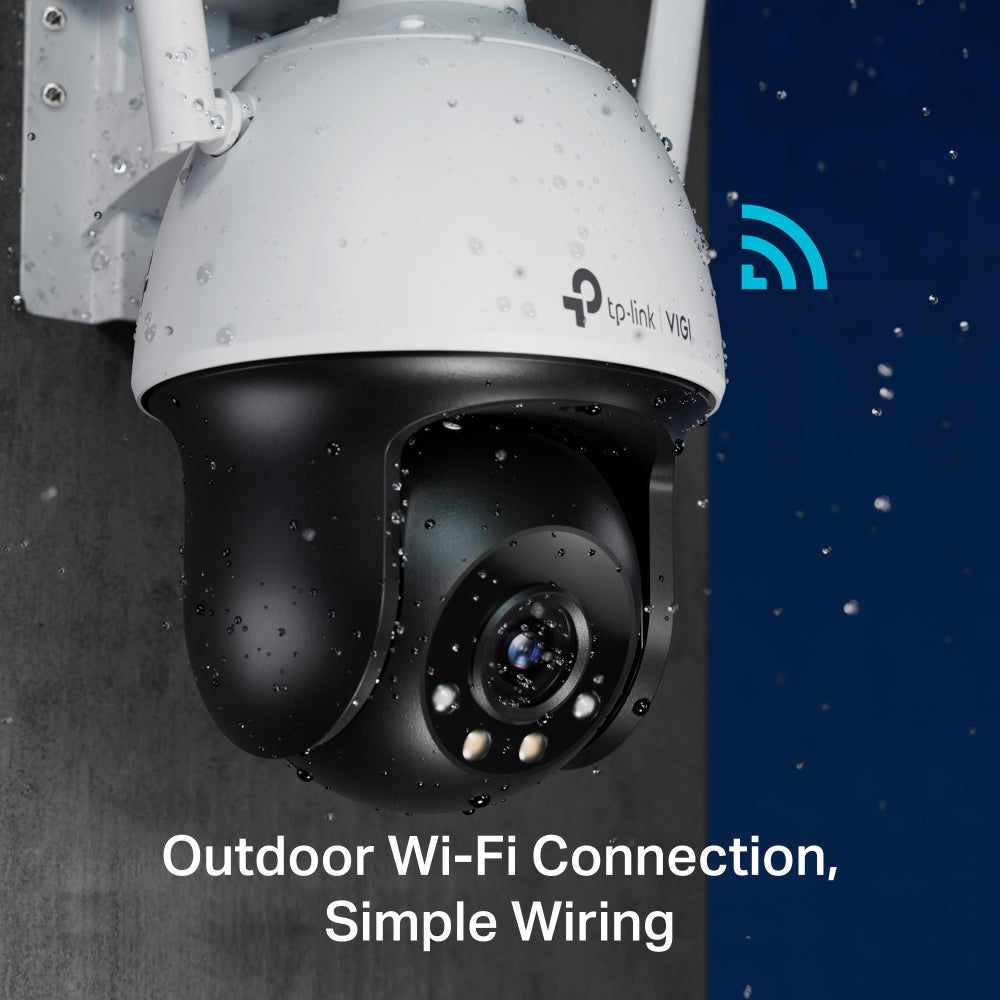

Outdoor Wi-Fi Connection, Simple Wiring
Just power up your camera, then the transmission starts by its 2×2 MIMO antennas. Waterproof hardware protects stable performance in outdoor scenarios.

Clarity and Colors, All in One
Monitor 24-hour clear and colorful details even in pitch dark night. VIGI Full-Color camera provides maximum 4MP resolutions and ensures colorful monitoring with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.

We keep an eye on your business.
Smart Detection
Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.

Active Defense
Warn potential intruders instantly with sound and light when abnormal events are detected.

Every Event is Under Your Control.
VIGI camera intelligently detects activities, informs you instantly, and responds automatically by smart detection and two-way audio.

Smart IR
Keeps objects from being under-rendered when far away or overexposed when close to the camera at night.

Wide Dynamic Range
Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.

3D DNR
Removes abnormal pixelation to provide clearer video and eliminate distortion.

More compression. More savings. Same quality.
Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.

Flexible Management and Storage

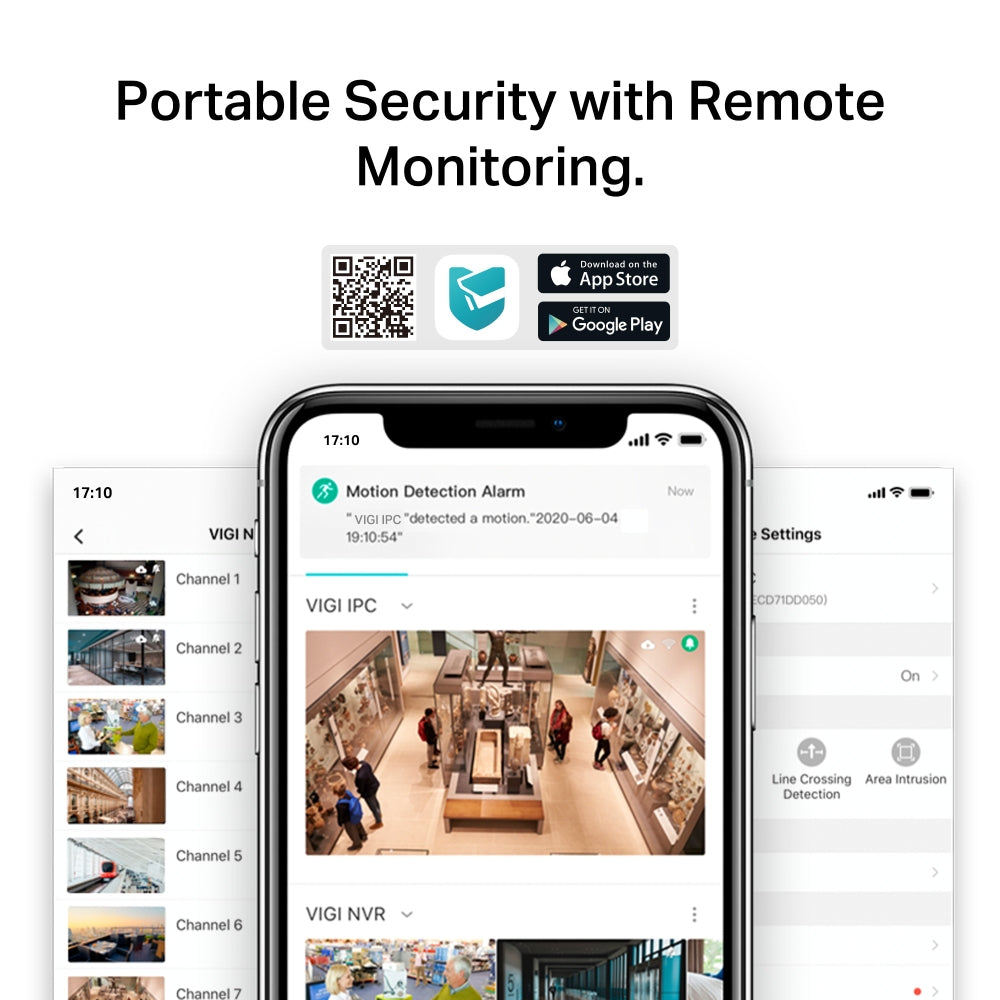

Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manger. Local storage is available for each method, as well as on-board storage with an SD card slot (up to 256 GB).

Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Certification	RCM, BSMI, VCCI, NCC, JRF, KC
Form factor	Turret
Mounting type	Ceiling/wall
Product colour	Black, White
Housing material	Plastic
International Protection (IP) code	IP66
Camera pan control	Yes
Camera tilt control	Yes
Lens viewing angle, horizontal	79°
Lens viewing angle, vertical	43°
Lens viewing angle, diagonal	93°
Tilt angle range	0 - 120°
Tilt speed	44 °/sec
Pan range	0 - 350°
Pan speed	44 °/sec
Optical sensor size	25.4 / 3 mm (1 / 3")
Progressive scan	Yes
Sensor type	CMOS
Zoom capability	Yes
Number of lenses	1
Detect distance	80 m
Observe distance	33 m
Recognize distance	16 m
Lens diameter	4 mm
Identify distance	8 m
Night vision	Yes
Night vision distance	30 m
LED type	IR
Infra-red wavelength	850 nm
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.264, H.264+, H.265, H.265+
Supported graphics resolutions	320 x 240, 352 x 288, 640 x 480 (VGA), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image quality adjustment	Brightness, Contrast, Mirror, Saturation, Sharpness
Privacy masking	Yes
Bit rate	256 Kbps - 4 Mbps
Digital Wide Dynamic Range (DWDR)	Yes
Built-in speaker(s)	Yes
Built-in microphone	Yes
Ethernet LAN	Yes
Ethernet interface type	Fast Ethernet
Supported network protocols	TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi	Yes
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Bluetooth	No
Live view	Yes
Number of simultaneous live view channels	3 channels
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	256 GB
Ethernet LAN (RJ-45) ports	1
Password protection	Yes
IP address filtering	Yes
Security algorithms	WPA, WPA2-PSK
HTTPS encryption	Yes
Intelligent Video Surveillance (IVS) system features	Human detection
Mirror	Yes
Digest authentication	Yes
Reset button	Yes
Behavior analysis	Intrusion detection, Line crossing detection
Power source type	DC
DC output voltage	12
Operating temperature (T-T)	-30 - 60 °C
Width	120 mm
Depth	172 mm
Height	198 mm
Basic event	Motion Detection, Camera Tampering Detection, Exception
Package width	163 mm
Package depth	243 mm
Package height	243 mm
Package weight	1.21 kg
Compliance certificates	CE, RoHS
Number of cameras	1
Mounting kit	Yes
